Tractor · 1982Unverified

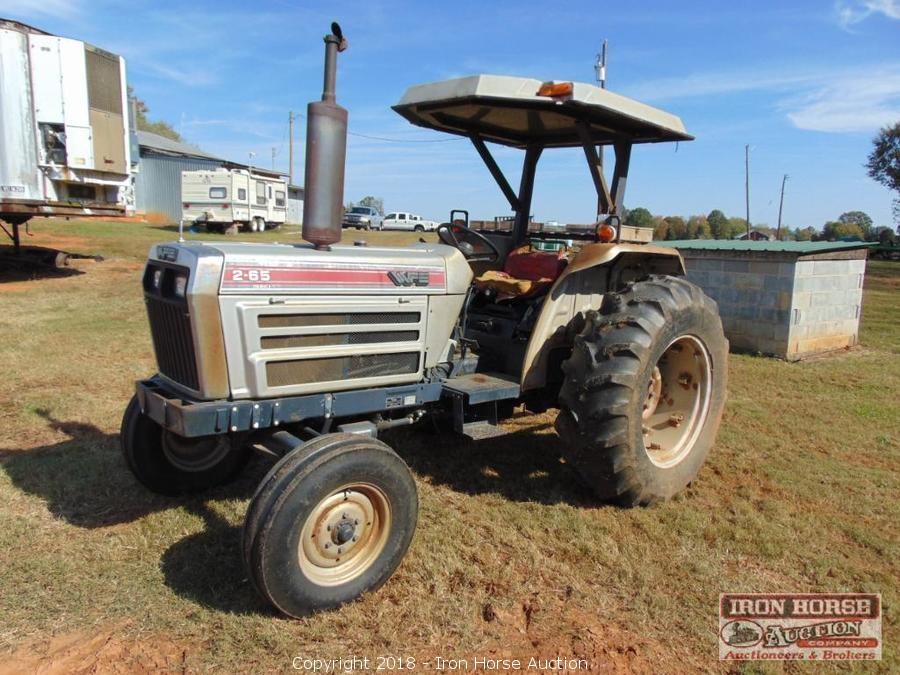

White 2-65
White 2-65 — Field Boss Series · 63 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
63 hp
Max power
41.5 kW
Weight
5314 to 6320 pounds
Hover a source tag to verify
Overview
DistributorWhiteReference
ManufacturerIsekiReference
Utility tractorReference
Built in JapanReference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD (optional)Reference
Differential lockfoot-activated standardReference
SteeringpowerReference
Differential wet disc brakesReference
Two-post ROPS. Optional canopy.Reference
Variants
Iseki T7000similar tractorReference
Engine
Isuzu 3.9L 4-cyl dieselReference
Drawbar (tested)41.5 kWReference
IsuzuReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.9 LReference
Bore/Stroke102 x 118 mmReference
Air cleanerdry with pre-cleanerReference
Pre-heatingglow plugsReference
Compression17.5:1Reference
Rated RPM2200Reference
Idle RPM675-2420Reference
Starter volts12Reference
Oil capacity9.9 LReference
Coolant capacity14.4 LReference
Power at rated engine speed46.6 kWReference
Max power41.5 kWReference
Transmission
16-speed synchromeshReference
TypesynchromeshReference
Gears16 forward and 4 reverseReference
Oil capacity39.1 LReference
Three gears, plus reverse, with high-low creeper and high-low auxiliary ranges.Reference
PTO & Hydraulics
PTO (claimed)46.6 kWReference
PTO (tested)46.6 kWReference
Hydraulic system39.0 LReference
Typeopen centerReference
Capacity39.0 LReference
Pressure166.5 barReference
Valves1 to 3Reference
Total flow45.0 lpmReference
Rear TypeII/IReference
Rear lift (at 24"/610mm)1706 kgReference
Rear PTOindependentReference
Rear PTO Type540/groundReference
Power at rated PTO speed41.3 kWReference
Capacities
Fuel60.2 LReference
Dimensions
Wheelbase214 cmReference
Weight5314 to 6320 poundsReference
Front tire7.50-16Reference
Rear tire16.9-30 (2WD)Reference
Standard tires (ag)Front: 7.50-16. Rear: 16.9-30 (2WD)Reference
Standard tires (ag)Front: 9.50-24. Rear: 16.9-30 (4WD)Reference
Length360 cmReference
Width186 cmReference
Height (exhaust)246 cmReference
Clearance (front axle)50 cmReference
Shipping2410 kgReference
Operating2866 kgReference
Ballasted3225 kgReference
White 2-65 attachments
front-end loaderReference
2-65 Serial Numbers
Location:Tractor frame on leftReference
198200099 (2WD)Reference
198300288 (2WD)Reference
198400341 (2WD)Reference
198500547 (2WD)Reference
198600672 (2WD)Reference
198200113 (4WD)Reference
198300308 (4WD)Reference
198400595 (4WD)Reference
198500897 (4WD)Reference
198600950 (4WD)Reference
198701040 (4WD)Reference
FAQ: How to read a serial number table.Reference
Electrical
Charging systemalternatorReference
Charging amps35Reference
Batteries2Reference
Battery volts12Reference
Test results
Diesel 16-speed 4WDMarch 18 - April 20, 1983Link: Nebraska Tractor Test 1467 fileReference
PTO performanceReference
Fuel use15.1 l/hourReference
Fuel use12.9 l/hourReference
Drawbar performanceReference
Gear 4HL used for power test.Reference
Max pull2189 kgReference
Gear 3HL used for pull test.Reference
Speeds
With 16.9-30 rear tires. Speeds expressed as gear-creeper-auxiliary.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
