Tractor · 1972Unverified

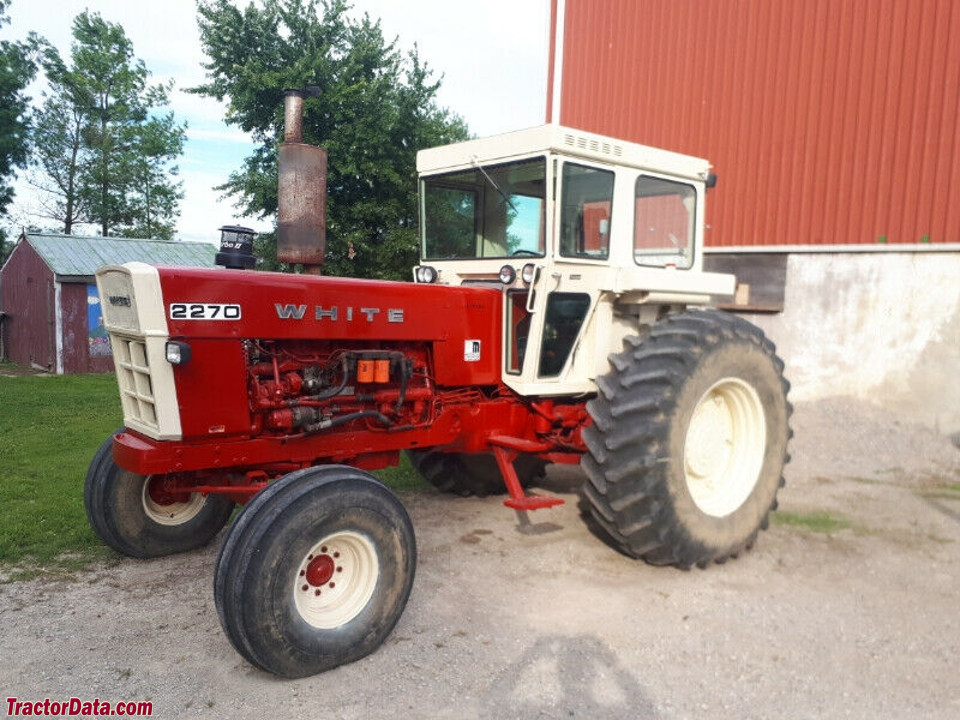

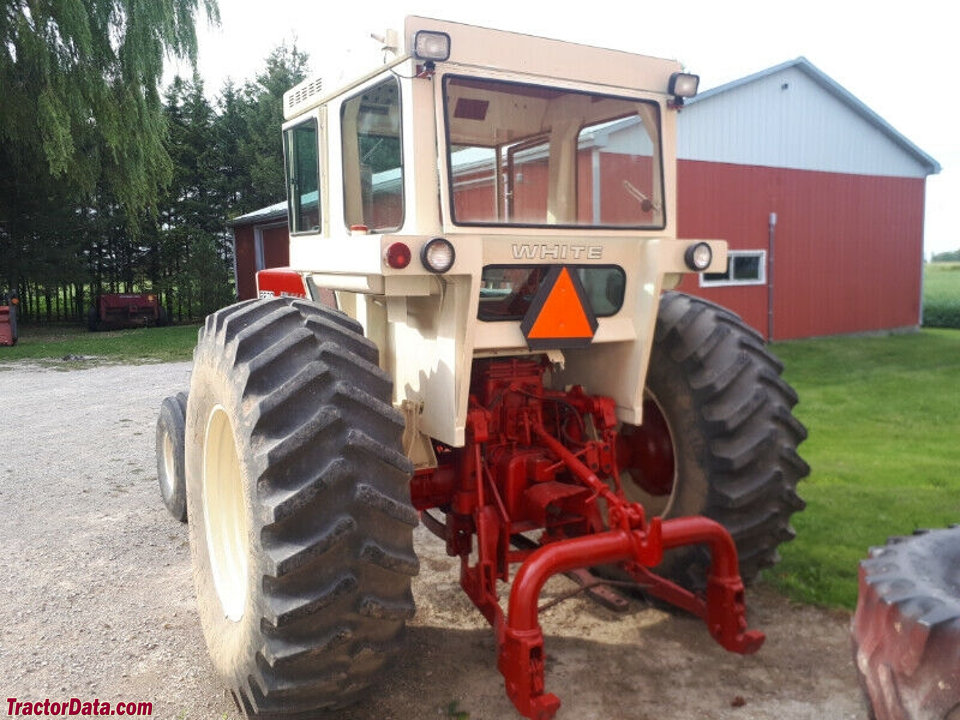

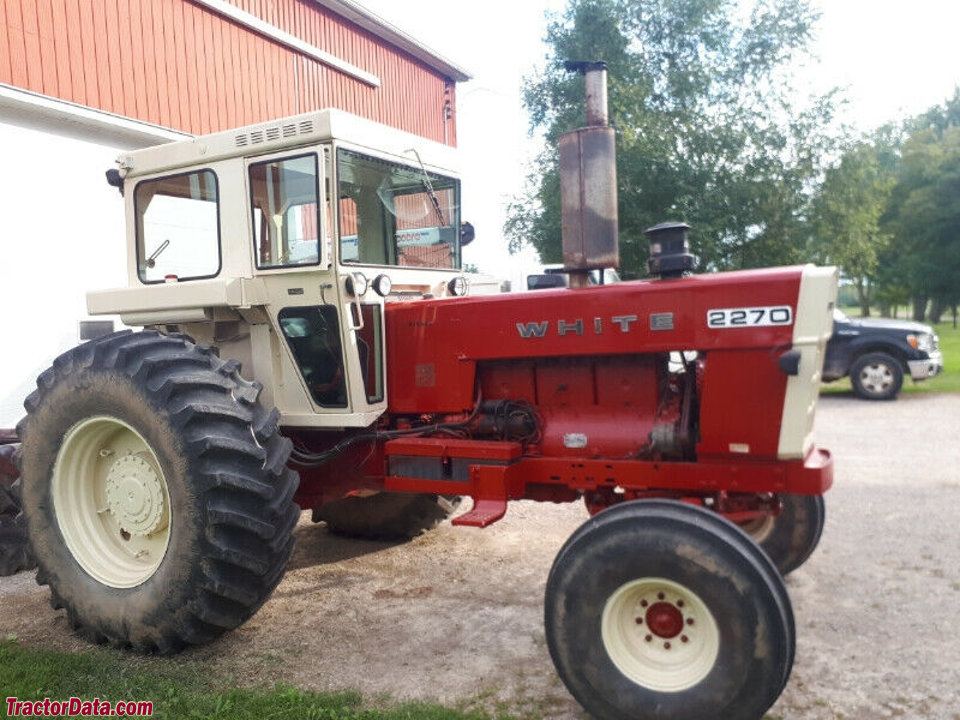

White 2270

Name: White 2270
Brand: White

White 2270 — Row-Crop tractor · 143 hp. Reference specifications; pending source verification.

The White 2270 is a tractor model with a rated power of 143 hp, which places it at the higher power end of its class. The 2270 was manufactured between 1972 and 1974. It features a 6-cylinder diesel liquid-cooled engine and two-wheel drive with a powershift transmission. The tractor has an operating weight of 7756 kg and is suited to operations of up to 800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

143 hp

Max power

93.7 kW

Weight

7756 kg

Catalogue coverage

Variants represented

Richest spec table

84 rows

Recorded power

143 hp

Recorded weight

7756 kg

Transmissions

6-speed gear

Production years

1972-1974

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerWhiteReference

Row-Crop tractorReference

Built in Charles City, Iowa, USAReference

Original price was $11,600 in 1972Reference

Two-wheel driveReference

Final drivesplanetaryReference

Power steeringReference

Dry disc brakesReference

Open operator station. Cab optional with available air-conditioning.Reference

Engine

Minneapolis-Moline 9.6L 6-cyl dieselReference

Minneapolis-Moline 8.3L 6-cyl LP-gasReference

Fuel tank151.4 LReference

Fuel tank147.6 LReference

Drawbar (tested)93.7 kWReference

Minneapolis-MolineReference

dieselReference

6-cylinderReference

liquid-cooledReference

Displacement9.6 LReference

Bore/Stroke121 x 140 mmReference

Air cleanerdryReference

Compression15.3:1Reference

Rated RPM2200Reference

Starter volts12Reference

Oil capacity13.2 LReference

Coolant capacity31.2 LReference

LP-gasReference

Displacement8.3 LReference

Bore/Stroke117 x 127 mmReference

Compression8.8:1Reference

Oil capacity11.4 LReference

Coolant capacity28.4 LReference

Power at rated engine speed106.4 kWReference

Max power93.7 kWReference

Transmission

6-speed gearReference

18-speed three-range power shiftReference

TypegearReference

Gears6 forward and 2 reverseReference

Clutch355.6mm dry discReference

Oil capacity40.7 LReference

TransmissionHydraul-ShiftReference

Typethree-range power shiftReference

Gears18 forward and 6 reverseReference

PTO & Hydraulics

PTO (claimed)109.6 kWReference

PTO (claimed)100.7 kWReference

PTO (tested)106.4 kWReference

Typeclosed centerReference

Pressure151.7 barReference

Pump flow75.7 lpmReference

Rear TypeIII/IIReference

Rear lift2721 kgReference

Rear PTOindependentReference

Rear PTO Type540/1000Reference

Dimensions

Wheelbase281 cmReference

Weight7756 kgReference

Front tire11.00-16Reference

Rear tire18.4-38Reference

Ag front11.00-16Reference

Ag rear18.4-38Reference

Ag front14.00L-16.1Reference

Ag rear23.1-34Reference

Ag rear20.8-38Reference

Length464 cmReference

Width207 cmReference

Height (steering wheel)217 cmReference

Height (exhaust)251 cmReference

Operating weight7756 kgReference

Ballasted weight8196 kgReference

Clearance (front axle)52 cmReference

Front tread154 to 215 cmReference

Rear tread154 to 231 cmReference

2270 Serial Numbers

1972236442Reference

1973237875Reference

1974245258Reference

FAQ: How to read a serial number table.Reference

Test results

Diesel 18-speed 2WDSeptember 4 - 17, 1973Link: Nebraska Tractor Test 1141 fileReference

PTO performanceReference

Fuel use35.6 l/hourReference

Drawbar performanceReference

Fuel use34.8 l/hourReference

Gear 4-Direct used for power test.Reference

Max pull6431 kgReference

Gear 2-Direct used for pull test.Reference

Speeds

With 18.4-38 rear tires.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
