Tractor · 1983Unverified

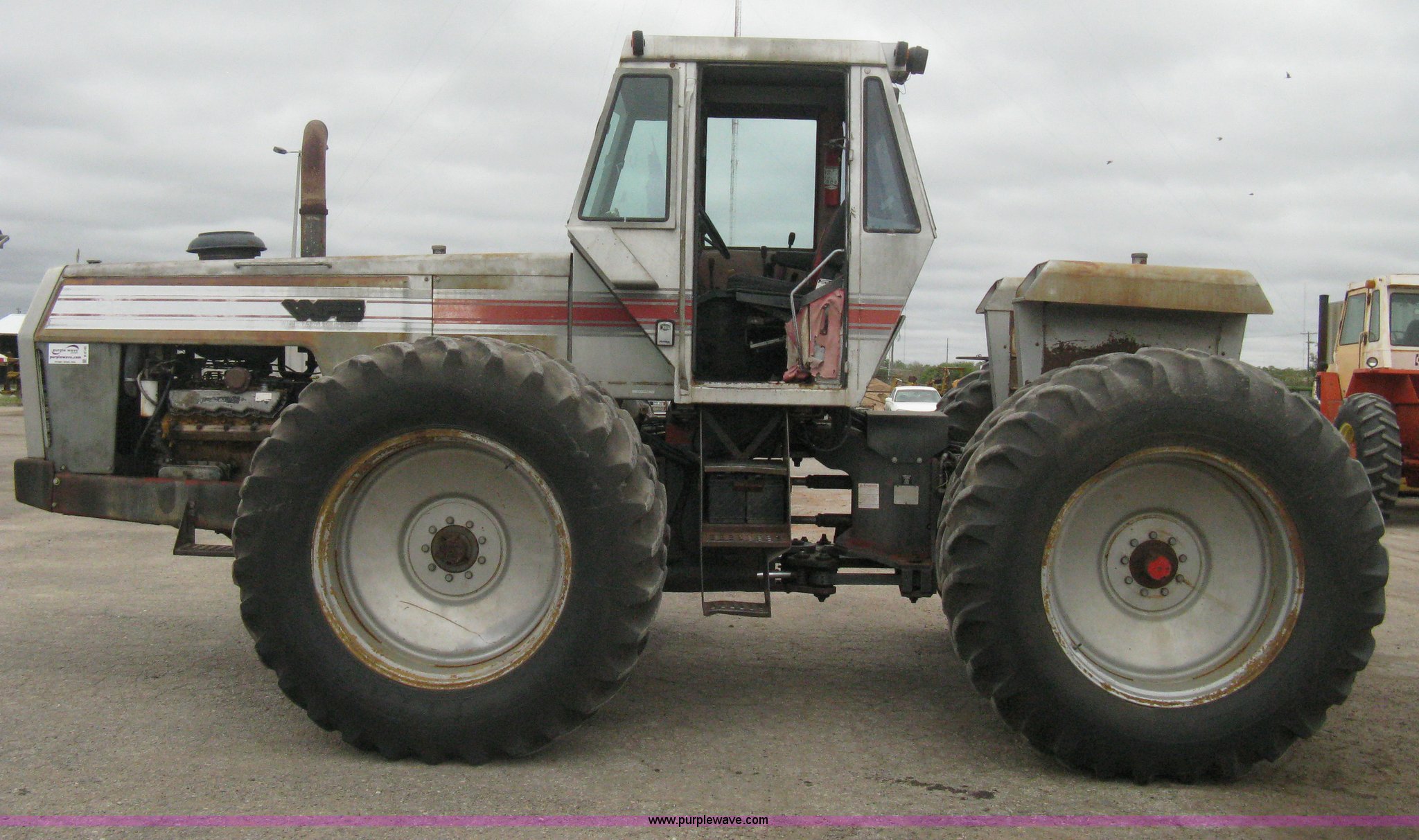

White 4-225
White 4-225 — Four-wheel Drive (4WD) tractor · 196 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
196 hp
Max power
125.9 kW
Weight
22760 to 23700 pounds
Hover a source tag to verify
Overview
ManufacturerWhiteReference
Four-wheel Drive (4WD) tractorReference
Original price was $76,000 in 1987Reference
Four-wheel driveReference
Steeringhydrostatic powerReference
Hydraulic wet discs brakesReference
Cab standard with air-conditioning. Optional radio, 8-track, and cassette.Reference
Engine
Caterpillar 10.4L 8-cyl dieselReference
Engine167.8 kWReference
Drawbar (tested)125.9 kWReference
Caterpillar 3208TReference
turbocharged dieselReference
8-cylinderReference
liquid-cooledReference
Displacement10.4 LReference
Bore/Stroke114 x 127 mmReference
Power167.8 kWReference
Air cleanerdual dry element with precleanerReference
Pre-heatingether (optional)Reference
Pre-heatingcoolant heat (optional)Reference
Compression16.5:1Reference
Rated RPM2600Reference
Starter volts12Reference
Oil capacity18.9 LReference
Coolant capacity41.6 LReference
Power at rated engine speed145.9 kWReference
Max power125.9 kWReference
Transmission
18-speed partial powershiftReference
Typepartial powershiftReference
Gears18 forward and 6 reverseReference
Oil capacity87.1 LReference
Six forward and two reverse gears with direct-, over-, and under-drive powershifts in each gear.Reference
PTO & Hydraulics
PTO (tested)145.9 kWReference
Hydraulic system87.1 LReference
Typeclosed centerReference
Capacity87.1 LReference
Pressure155.1 barReference
Valves2Reference
Total flow94.6 lpmReference
Rear TypeIIIReference
Rear PTOindependentReference
Rear PTO Type1000Reference
Capacities
Fuel355.8 LReference
Dimensions
Wheelbase299 cmReference
Weight22760 to 23700 poundsReference
Front tire18.4-38Reference
Rear tire18.4-38Reference
Ag front18.4-38Reference
Ag rear18.4-38Reference
Ag front18.4-42Reference
Ag front20.8-38Reference
Ag front23.1-34Reference
Ag front24.5-32Reference
Ag front30.5L-32Reference
Ag rear18.4-42Reference
Ag rear20.8-38Reference
Ag rear23.1-34Reference
Ag rear24.5-32Reference
Ag rear30.5L-32Reference
Length619 cmReference
Width294 cmReference
Height (cab)312 cmReference
Shipping weight10323 kgReference
Operating weight10750 kgReference
Ground clearance43 cmReference
Ground clearance45 cmReference
Electrical
Charging systemalternatorReference
Charging amps90Reference
Batteries2Reference
Battery volts12Reference
Test results
Diesel 18-speed 4WDApril 9 - 15, 1985Link: Nebraska Tractor Test 1558 fileReference
PTO performanceReference
Fuel use47.3 l/hourReference
Drawbar performanceReference
Fuel use46.9 l/hourReference
Gear 11 used for power test.Reference
Speeds
With 18.4-38 tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
