Tractor · 1989Unverified
White 60
White 60 — American Series · 61 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
61 hp
Max power
38.3 kW
Weight
3783 kg
Hover a source tag to verify
Overview
ManufacturerWhiteReference
Utility tractorReference
Built in Coldwater, Ohio, USAReference
Original price was $21,000 in 1991Reference

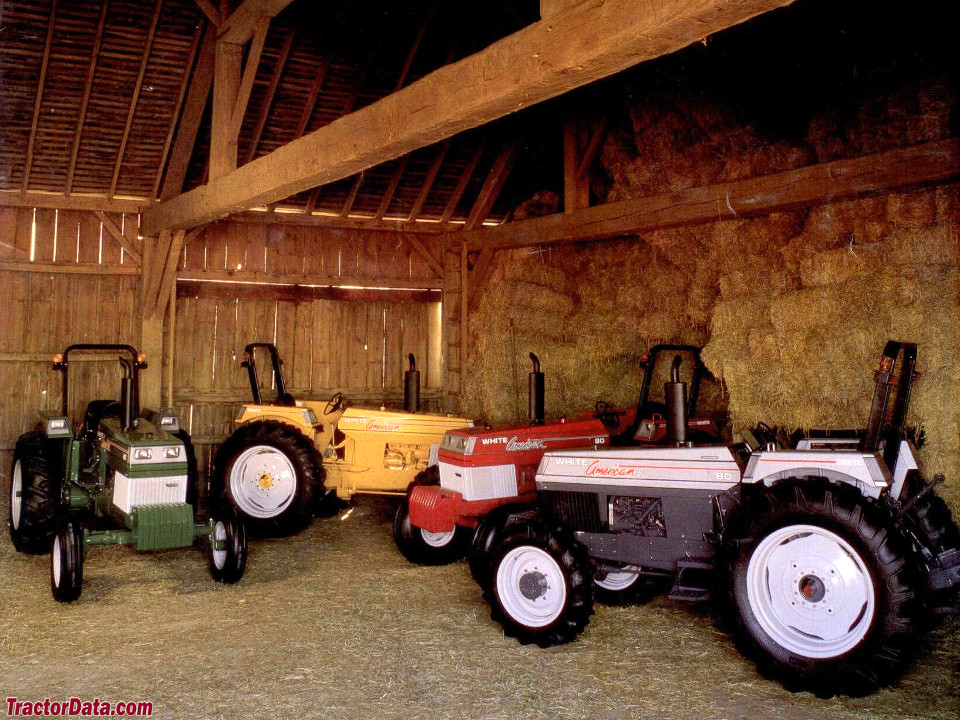

The White American 60 was available in four color choices, to commemorate four of the tractor brands which were part of White's history. White Silver was standard while Cockshutt Red, Minneapolis-Moline Gold, and Oliver Green were available as options.Reference
Two- or four-wheel driveReference
Power steeringReference
Dry disc brakesReference
Two-post ROPS. Canopy optional.Reference
Engine
Cummins 3.9L 4-cyl dieselReference
Drawbar (tested)38.3 kWReference
CumminsReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.9 LReference
Bore/Stroke102 x 120 mmReference
Pre-heating750W coolant heaterReference
Pre-heatingether kitReference
Rated RPM2200Reference
Starter volts12Reference
Oil capacity11.0 LReference
Coolant capacity22.7 LReference
Power at rated engine speed45.5 kWReference
Max power38.3 kWReference
Transmission
6-speed sliding gearReference
18-speed partial power shiftReference
Typesliding gearReference
Gears6 forward and 2 reverseReference
Clutchdry discReference
Oil capacity49.2 LReference
Typepartial power shiftReference
Gears18 forward and 6 reverseReference
The optional power shift transmission add a three-speed power shift to the basic six-speed transmission.Reference
PTO & Hydraulics
PTO (claimed)44.7 kWReference
PTO (tested)45.5 kWReference
Hydraulic system49.2 LReference
Typeopen centerReference
Capacity49.2 LReference
Pressure151.7 barReference
Valves1 to 3Reference
Total flow75.7 lpmReference
Rear TypeI/IIReference
Controllower linkReference
Rear lift2041 kgReference
Rear PTOindependentReference
ClutchhydraulicReference
Rear PTO Type540Reference
Rear PTO Type540/1000Reference
Engine RPM540@2160Reference
Engine RPM1000@2217Reference
Power at rated PTO speed45.9 kWReference
Capacities
Fuel75.7 LReference
Dimensions
Wheelbase242 cmReference
Weight3783 kgReference
Front tire7.50-16Reference
2WD Rear tire16.9-30Reference
2WD Standard tires (ag)Front: 7.50-16. Rear: 16.9-30Reference
4WD Standard tires (ag)Front: 9.50-24. Rear: 16.9-30Reference
4WD Optional tires (ag)Front: 11.2-24. Rear: 16.9-34Reference
4WD Optional tires (ag)Front: 13.6-24. Rear: 18.4-34Reference
4WD Optional tires (ag)Front: 13.6-24. Rear: 18.4R34Reference
4WD Optional tires (ag)Front: 11.2-24. Rear: 15.5-38Reference
2WD Ag front7.50-18Reference
2WD Ag front10.00-16Reference
2WD Ag front9.5L-15Reference
2WD Ag front27x9.50-15Reference
2WD Ag rear16.9-34Reference
2WD Ag rear18.4-34Reference
2WD Ag rear18.4R34Reference
2WD Ag rear15.5-38Reference
2WD Ag rear16.9-24Reference
2WD Ag rear18.4-26Reference
2WD Ag rear18.4R26Reference
2WD Lawn/turf rear16.9-24Reference
2WD Lawn/turf rear18.4-26Reference
Length384 cmReference
Width207 cmReference
Height (hood)162 cmReference
Height (ROPS)245 cmReference
Operating weight3783 kgReference
Ground clearance45 cmReference
Front tread152 to 213 cmReference
Rear tread152 to 227 cmReference
60 Serial Numbers
Location:Instrument panelReference
1989402965Reference
1990404422Reference
1991405028Reference
1992405654Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps62Reference
Battery volts12Reference
Test results
Diesel 18-speed 4WDApril 5 - 27, 1990Link: Nebraska Tractor Test 1636 fileReference
PTO performanceReference
Fuel use15.9 l/hourReference
Drawbar performanceReference
Fuel use15.5 l/hourReference
Gear 3B used for power test.Reference
Max pull3520 kgReference
Gear 1B used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
