Tractor · 1992Unverified

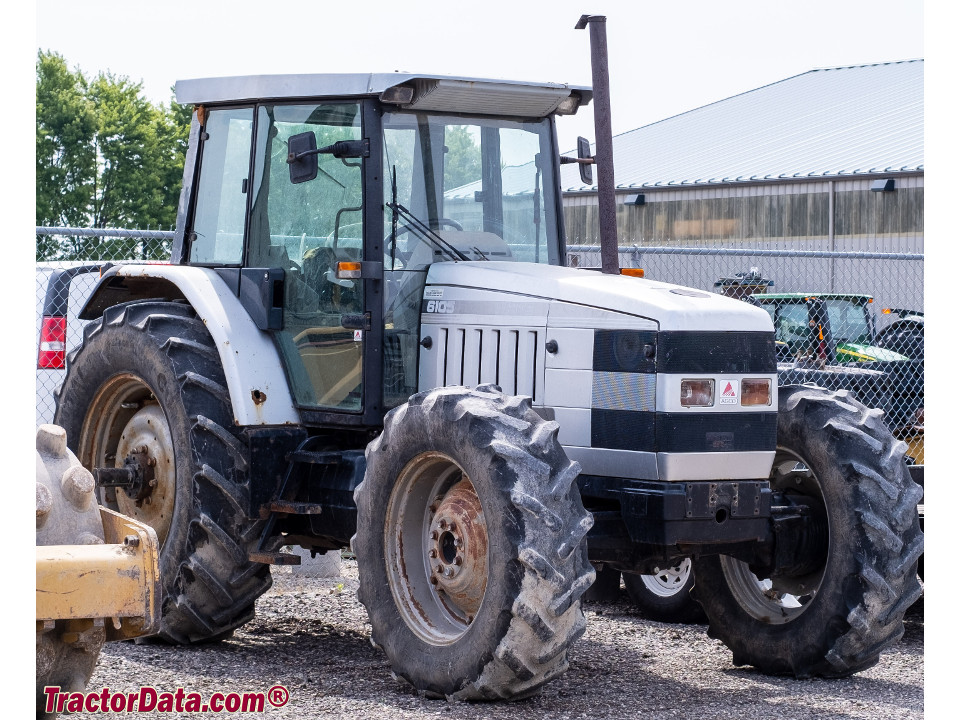

White 6105
White 6105 — Utility tractor · 106 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
106 hp
Weight
4912 kg
Hover a source tag to verify
Overview
DistributorWhite (a part of AGCO)Reference
ManufacturerSAMEReference
Utility tractorReference
Original price was $53,000 in 1997Reference
Two- or four-wheel driveReference
Final drivesinboard planetaryReference
Differential lockelectro-hydraulicReference
Power steeringReference
Hydraulic wet disc brakesReference
Cab standard.Reference
Engine
SLH 6.0L 6-cyl dieselReference
SLH 1000.6-WReference
dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.0 LReference
Bore/Stroke105 x 116 mmReference
Fuel systemdirect injectionReference
Compression16:1Reference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Transmission
24-speed synchromeshReference
36-speed two-speed power shiftReference
TypesynchromeshReference
Gears24 forward and 12 reverseReference
Clutchhydraulic dry discReference
Typetwo-speed power shiftReference
Gears36 forward and reverseReference
PTO & Hydraulics
PTO (claimed)79.0 kWReference
Hydraulic system75.7 LReference
Typeopen centerReference
Capacity75.7 LReference
Pressure190.0 barReference
Valves3Reference
Pump flow55.6 lpmReference
Total flow97.7 lpmReference
Rear TypeII/IReference
Controlposition and draft controlReference
Rear lift (at 24"/610mm)4200 kgReference
Rear PTOindependentReference
Clutchhydraulic wet discReference
Rear PTO Type540/1000Reference
Capacities
Fuel194.9 LReference
Dimensions
Wheelbase273 cmReference
Weight4912 kgReference
Front tire10.00-16Reference
Rear tire18.4R34Reference
Ag front10.00-16Reference
Ag rear18.4R34Reference
Length404 cmReference
Width248 cmReference
Height (cab)275 cmReference
Shipping weight4912 kgReference
6105 Serial Numbers
Location:Serial number plate on the tractor's console on the right side.Reference
1992001001Reference
1993001161Reference
1994001252Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
