Tractor · 1994Unverified

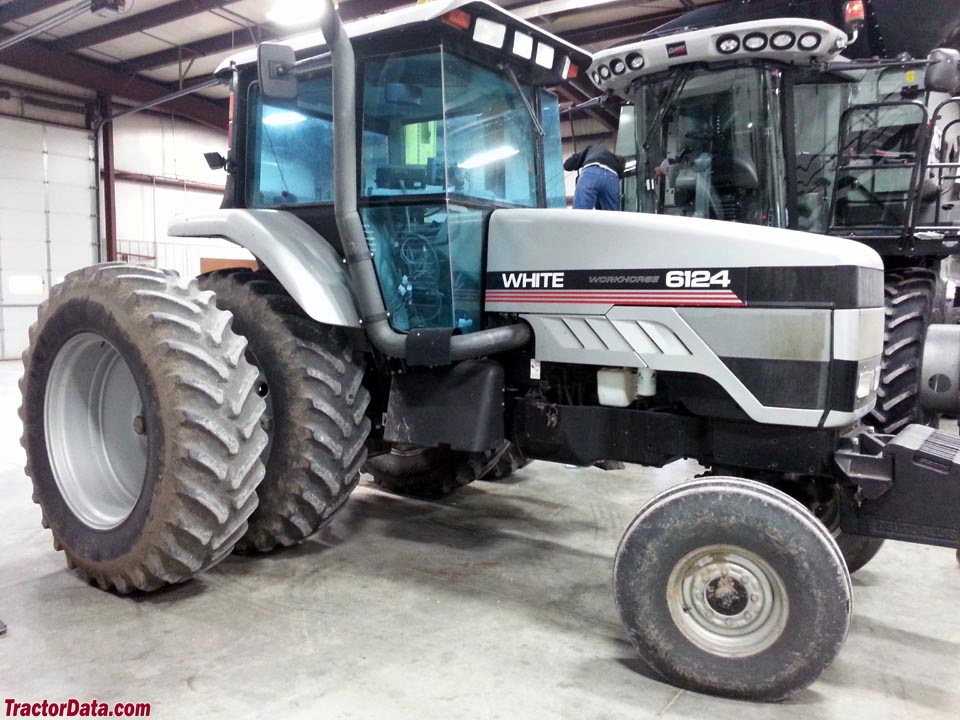

White 6124
White 6124 — Workhorse 6100 Series · 125 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
125 hp
Max power
84.0 kW
Weight
6740 kg
Hover a source tag to verify
Overview
ManufacturerWhite (a part of AGCO)Reference
Row-Crop tractorReference
Built in Coldwater, Ohio, USAReference
Original price$69,000 (1997)Reference
Two- or four-wheel driveReference
Steeringhydrostatic powerReference
Hydraulic wet disc brakesReference
Cab standard.Reference
Variants
612518-speed Funk power shiftReference
612432-speed QuadrashiftReference
Engine
CDC 5.9L 6-cyl dieselReference
Fuel tank287.7 LReference
Drawbar (tested)84.0 kWReference
CDC 6BT5.9Reference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement5.9 LReference
Bore/Stroke102 x 120 mmReference
Fuel systemdirect injectionReference
Air cleanertwo paper elementsReference
Compression17.5:1Reference
Rated RPM2200Reference
Starter volts12Reference
Power at rated engine speed93.2 kWReference
Max power84.0 kWReference
Transmission
32-speed partial power shiftReference
TransmissionQuadrashiftReference
Typepartial power shiftReference
Gears32 forward and reverseReference
Clutchdual dry discReference
Eight-speed transmission coupled with a four-speed power shift and mechanical shuttle.Reference
PTO & Hydraulics
PTO (claimed)92.5 kWReference
PTO (tested)93.2 kWReference
Typeclosed centerReference
Valves3Reference
Pump flow102.2 lpmReference
Rear TypeII,IIIReference
Rear lift4717 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Power at rated PTO speed92.5 kWReference
Dimensions
Wheelbase292 cmReference
Weight6740 kgReference
Front tire10.00-16Reference
Rear tire18.4R38DReference
Ag front10.00-16Reference
Ag rear18.4R38DReference
Operating weight6740 kgReference
Ballasted weight7853 kgReference
Electrical
GroundnegativeReference
Battery volts12Reference
Test results
Diesel 32-speed 4WDMay 30 - June 16, 1995Link: OCED Tractor Test 1694 fileReference
PTO performanceReference
Fuel use27.6 l/hourReference
Fuel use26.5 l/hourReference
Drawbar performanceReference
Max pull6827 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
