Tractor · 1993Unverified

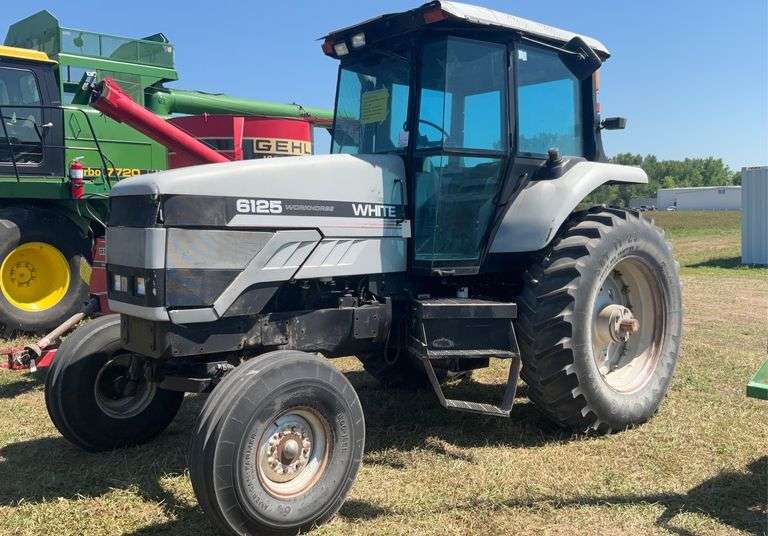

White 6125
White 6125 — Workhorse 6100 Series · 125 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
125 hp
Max power
82.5 kW
Weight
15400 to 16832 pounds
Hover a source tag to verify
Overview
ManufacturerWhite (a part of AGCO)Reference
Row-Crop tractorReference
Built in Coldwater, Ohio, USAReference
Original price was $74,000 in 1997Reference
Two- or four-wheel driveReference
Power steeringReference
Differential hydraulic wet disc brakesReference
Cab standard with air-conditioning.Reference
Variants
612518-speed Funk power shiftReference
612432-speed QuadrashiftReference
Engine
CDC 5.9L 6-cyl dieselReference
Fuel tank253.6 LReference
Drawbar (tested)82.5 kWReference
CDC 6BT5.9Reference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement5.9 LReference
Bore/Stroke102 x 120 mmReference
Fuel systemdirect injectionReference
Air cleanertwo paper elementsReference
Compression18.5:1Reference
Rated RPM2200Reference
Starter volts12Reference
Coolant capacity20.6 LReference
Power at rated engine speed93.2 kWReference
Max power82.5 kWReference
Transmission
18-speed full power shiftReference
ManufacturerFunk-DeereReference
Typefull power shiftReference
Gears18 forward and 9 reverseReference
Clutchhydraulic wet discReference
PTO & Hydraulics
PTO (claimed)92.5 kWReference
PTO (tested)93.2 kWReference
Typeclosed centerReference
Pressure158.6 barReference
Valves3Reference
Pump flow83.3 lpmReference
Rear TypeIII/IIReference
Controlelectronic lower-link draft sensingReference
Rear lift (at 24"/610mm)3129 kgReference
Rear lift (at 24"/610mm)3991 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Power at rated PTO speed97.6 kWReference
Dimensions
Wheelbase269 cmReference
Weight15400 to 16832 poundsReference
Front tire10.00-16Reference
Rear tire18.4R38DReference
Ag front10.00-16Reference
Ag rear18.4R38DReference
Length456 cmReference
Height300 cmReference
Bar rear axle2489 mmReference
Bar rear axle2921 mmReference
Shipping6985 kgReference
Operating7634 kgReference
Ballasted8538 kgReference
6125 Serial Numbers
1993620001Reference
1994621001Reference
1995621201Reference
1996622301Reference
1997622338Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Test results
Diesel 18-speed 4WDApril 19 - May 10, 1994Link: OCED Tractor Test 1676 fileReference
PTO performanceReference
Fuel use29.5 l/hourReference
Drawbar performanceReference
Fuel use29.9 l/hourReference
Gear 8 used for power test.Reference
Max pull9024 kgReference
Gear 3 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
