Tractor · 1994Unverified

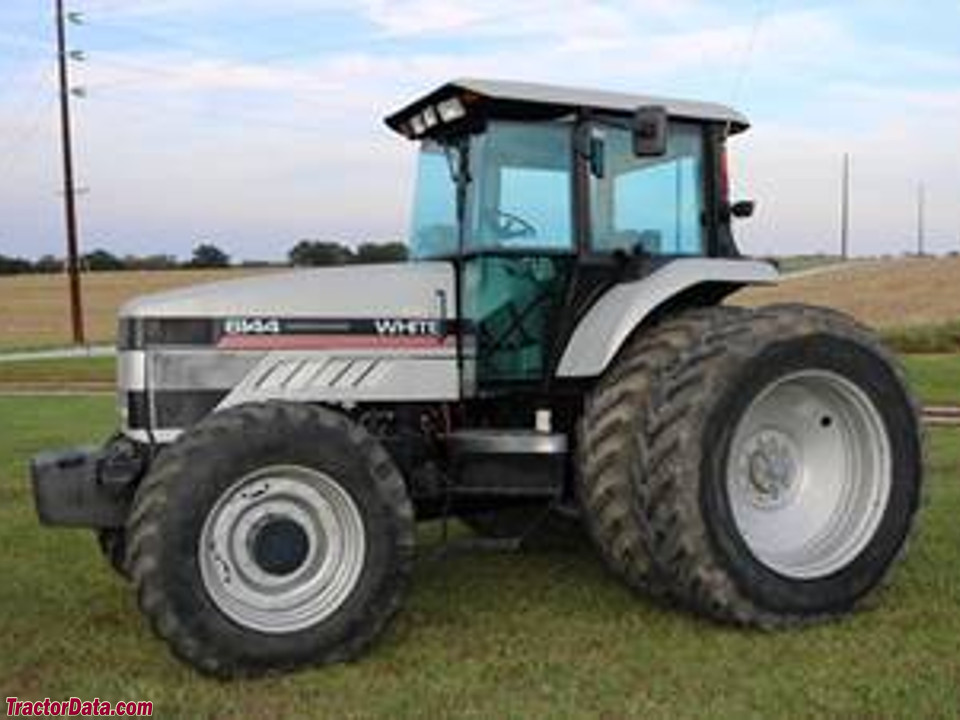

White 6144
White 6144 — Workhorse 6100 Series · 143 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
143 hp
Max power
94.7 kW
Weight
6740 kg
Hover a source tag to verify
Overview
ManufacturerWhite (a part of AGCO)Reference
Row-Crop tractorReference
Built in Coldwater, Ohio, USAReference
Original price was $73,000 in 1997Reference
Two- or four-wheel driveReference
Power steeringReference
Hydraulic wet disc brakesReference
Cab standard.Reference
Variants
614518-speed Funk power shiftReference
614432-speed QuadrashiftReference
Engine
CDC 5.9L 6-cyl dieselReference
Fuel tank287.7 LReference
Drawbar (tested)94.7 kWReference
CDC 6BTA5.9Reference
turbocharged aftercooled dieselReference
6-cylinderReference
liquid-cooledReference
Displacement5.9 LReference
Bore/Stroke102 x 120 mmReference
Fuel systemdirect injectionReference
Air cleanertwo paper elementsReference
Compression16.5:1Reference
Rated RPM2200Reference
Starter volts12Reference
Power at rated engine speed106.3 kWReference
Max power94.7 kWReference
Transmission
32-speed partial power shiftReference
TransmissionQuadrashiftReference
Typepartial power shiftReference
Gears32 forward and reverseReference
Clutchdual dry discReference
Eight-speed transmission coupled with a four-speed power shift and mechanical shuttle.Reference
PTO & Hydraulics
PTO (claimed)106.6 kWReference
PTO (tested)106.3 kWReference
Typeclosed centerReference
Valves3Reference
Pump flow102.2 lpmReference
Rear TypeII/IIIReference
Rear lift4717 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Power at rated PTO speed107.6 kWReference
Dimensions
Wheelbase292 cmReference
Weight6740 kgReference
Front tire10.00-16Reference
Rear tire18.4R38DReference
Ag front10.00-16Reference
Ag rear18.4R38DReference
Operating weight6740 kgReference
Ballasted weight7930 kgReference
6144 Serial Numbers
1994645001Reference
1995645501Reference
1996646301Reference
1997646411Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Battery volts12Reference
Test results
Diesel 32-speed 4WDJune 1 - 14, 1995Link: OCED Tractor Test 1695 fileReference
PTO performanceReference
Fuel use30.3 l/hourReference
Drawbar performanceReference
Max pull6999 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
