Tractor · 1993Unverified

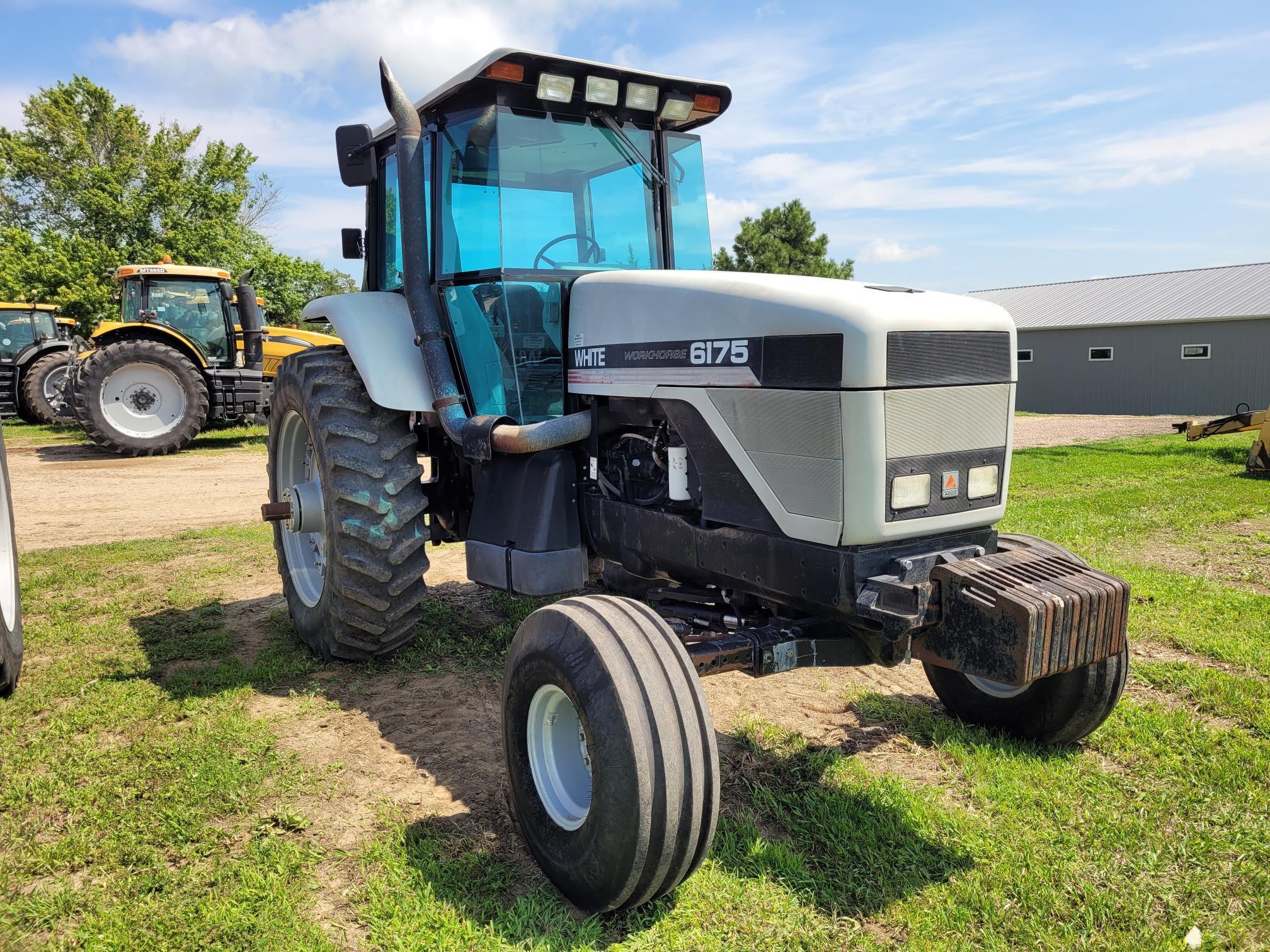

White 6175
White 6175 — Workhorse 6100 Series · 175 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
175 hp
Max power
143.9 kW
Weight
16750 to 18556 pounds
Hover a source tag to verify
Overview
ManufacturerWhite (a part of AGCO)Reference
Row-Crop tractorReference
Built in Coldwater, Ohio, USAReference
Original price was $91,000 in 1999Reference
Two- or four-wheel driveReference
Power steeringReference
Differential hydraulic wet disc brakesReference
Cab standard with air-conditioning.Reference
Engine
CDC-Cummins 8.3L 6-cyl dieselReference
Fuel tank344.4 LReference
Drawbar (tested)115.4 kWReference
CDC-Cummins 6CT8.3Reference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement8.3 LReference
Bore/Stroke114 x 135 mmReference
Fuel systemdirect injectionReference
Air cleanerdual elements with aspiratorReference
Compression17.3:1Reference
Rated RPM2200Reference
Starter volts12Reference
Max power143.9 kWReference
Power at rated engine speed130.9 kWReference
Max power115.4 kWReference
Transmission
18-speed full power shiftReference
ManufacturerFunk-DeereReference
Typefull power shiftReference
Gears18 forward and 9 reverseReference
Clutchhydraulic wet discReference
PTO & Hydraulics
PTO (claimed)130.5 kWReference
PTO (tested)143.9 kWReference
Typeclosed centerReference
Pressure193.1 barReference
Valves3Reference
Pump flow98.4 lpmReference
Rear TypeIII/IIReference
Controlelectronic lower-link draft sensingReference
Rear lift (at 24"/610mm)3855 kgReference
Rear lift (at 24"/610mm)4898 kgReference
Rear PTOindependentReference
Rear PTO Type1000Reference
Power at rated PTO speed139.3 kWReference
Dimensions
Wheelbase31 cmReference
Weight16750 to 18556 poundsReference
Front tire11.00-16Reference
Rear tire20.8R38DReference
Ag front11.00-16Reference
Ag rear20.8R38DReference
Length479 cmReference
Height302 cmReference
Bar rear axle2489 mmReference
Bar rear axle2921 mmReference
Shipping7597 kgReference
Operating8417 kgReference
Ballasted10057 kgReference
6175 Serial Numbers
199366001Reference
1994661001Reference
1995661501Reference
1996662301Reference
1997662393Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Test results
Diesel 18-speed 4WDOctober 16 - 27, 1994Link: OCED Tractor Test 1685 fileReference
PTO performanceReference
Fuel use40.9 l/hourReference
Fuel use39.7 l/hourReference
Drawbar performanceReference
Fuel use40.1 l/hourReference
Gear 8 used for power test.Reference
Max pull10556 kgReference
Gear 4 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
