Tractor · 1993Unverified

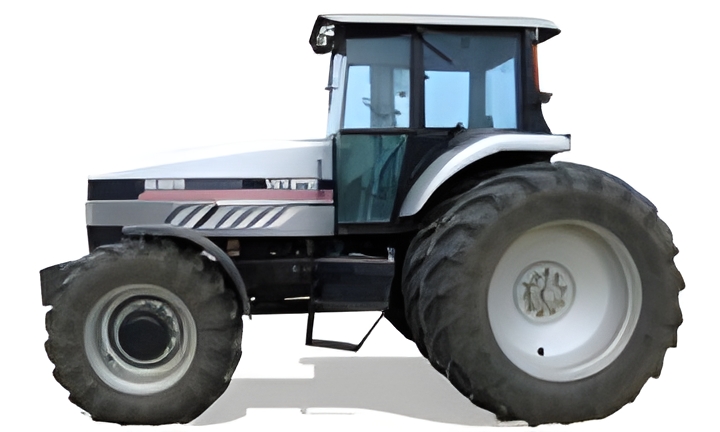

White 6195
White 6195 — Workhorse 6100 Series · 200 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
200 hp
Max power
162.6 kW
Weight
17000 to 17500 pounds
Hover a source tag to verify
Overview
ManufacturerWhite (a part of AGCO)Reference
Row-Crop tractorReference
Built in Coldwater, Ohio, USAReference
Original price was $112,000 in 1999Reference
Four-wheel driveReference
Power steeringReference
Differential hydraulic wet disc brakesReference
Cab standard with air-conditioning.Reference
Engine
CDC-Cummins 8.3L 6-cyl dieselReference
Fuel tank344.4 LReference
Drawbar (tested)130.3 kWReference
CDC-Cummins 6CTA8.3Reference
turbocharged intercooled dieselReference
6-cylinderReference
liquid-cooledReference
Displacement8.3 LReference
Bore/Stroke114 x 135 mmReference
Fuel systemdirect injectionReference
Compression16.5:1Reference
Rated RPM2200Reference
Starter volts12Reference
Max power162.6 kWReference
Power at rated engine speed149.5 kWReference
Max power130.3 kWReference
Transmission
18-speed full power shiftReference
ManufacturerFunk-DeereReference
Typefull power shiftReference
Gears18 forward and 9 reverseReference
Clutchhydraulic wet discReference
PTO & Hydraulics
PTO (claimed)149.1 kWReference
PTO (tested)162.6 kWReference
Typeclosed centerReference
Pressure193.1 barReference
Valves3Reference
Pump flow98.4 lpmReference
Rear TypeIII/IIReference
Controlelectronic lower-link draft sensingReference
Rear lift (at 24"/610mm)4898 kgReference
Rear PTOindependentReference
Rear PTO Type1000Reference
Power at rated PTO speed159.2 kWReference
Dimensions
Wheelbase287 cmReference
Weight17000 to 17500 poundsReference
Front tire16.9R28Reference
Rear tire20.8R38DReference
Ag front16.9R28Reference
Ag rear20.8R38DReference
Length479 cmReference
Height302 cmReference
Weight7938 kgReference
Shipping weight7711 kgReference
Bar rear axle2489 mmReference
Bar rear axle2921 mmReference
6195 Serial Numbers
1993680001Reference
1994681001Reference
1995681501Reference
1996682301Reference
1997682378Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Test results
Diesel 18-speed 4WDOctober 21 - 27, 1994Link: OCED Tractor Test 1686 fileReference
PTO performanceReference
Fuel use47.3 l/hourReference
Fuel use45.4 l/hourReference
Fuel use46.9 l/hourReference
Drawbar performanceReference
Gear 11 used for power test.Reference
Max pull11067 kgReference
Gear 4 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
