Tractor · 1998Unverified

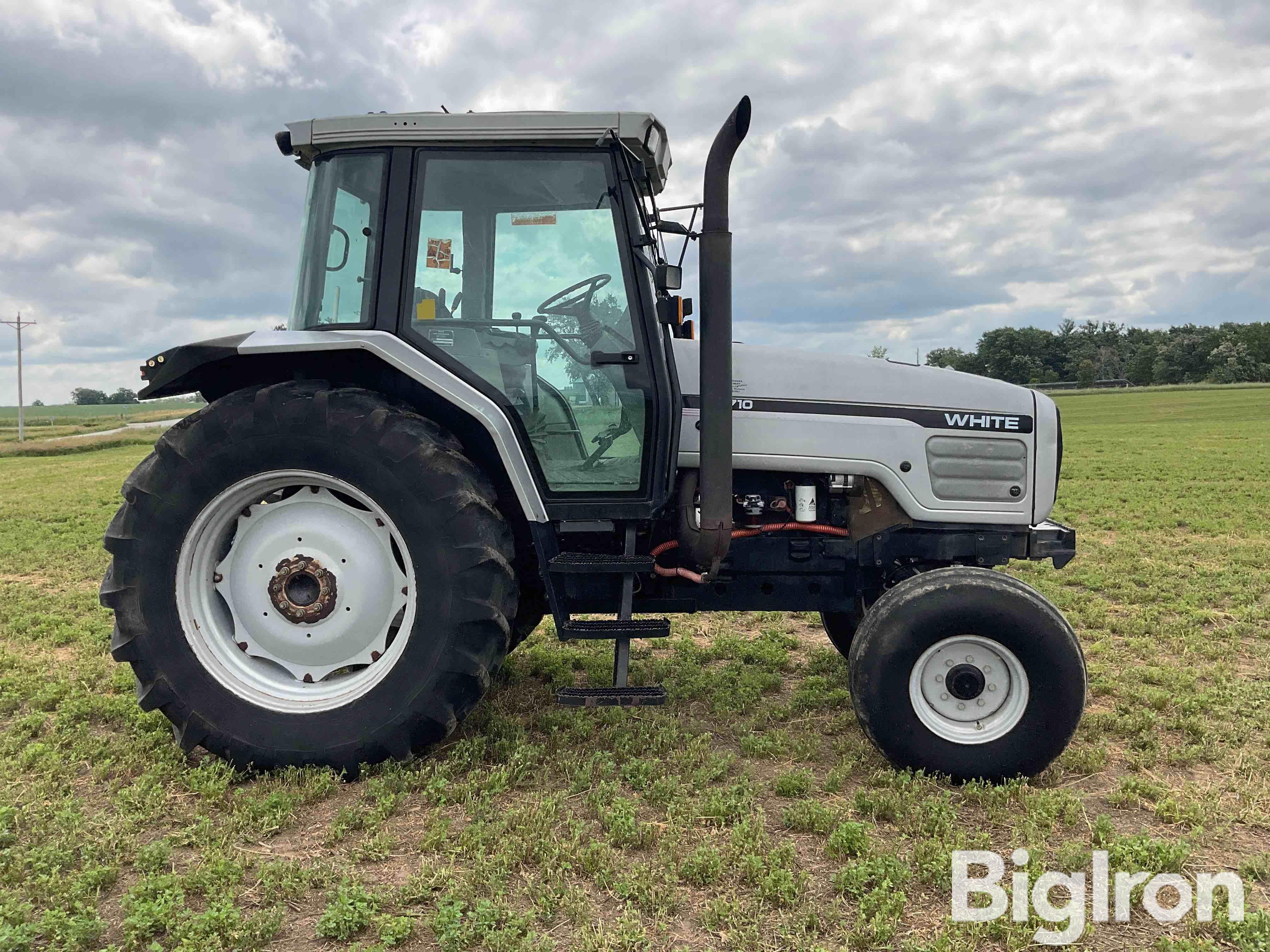

White 6710
White 6710 — Utility tractor · 96 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
96 hp
Max power
76.1 kW
Weight
10400 to 11300 pounds
Hover a source tag to verify
Overview
ManufacturerWhite (a part of AGCO)Reference
Utility tractorReference
Built in Beauvais, FranceReference
Original price was $45,000 in 1999Reference
Two- or four-wheel driveReference
Final drivesinboard planetaryReference
Differential lockelectro-hydraulic front and rearReference
Power steeringReference
Hydraulic wet disc brakesReference
Two-post ROPS. Cab optional with air-conditioning. FieldStar readyReference
Variants
8775similar AGCO Allis modelReference
Engine
Cummins 5.9L 6-cyl dieselReference
Fuel tank159.0 LReference
Cummins B5.9TReference
turbocharged dieselReference
6-cylinderReference
liquid-cooled inlineReference
Displacement5.9 LReference
Bore/Stroke102 x 120 mmReference
Air cleanerdry elementsReference
Compression17:1Reference
Rated RPM2200Reference
Starter volts12Reference
Max power76.1 kWReference
Power at rated engine speed71.3 kWReference
Transmission
32-speed four-speed power shiftReference
TransmissionQuadrashiftReference
Typefour-speed power shiftReference
Gears32 forward and reverseReference
Clutchwet discReference
Four power shift gears in eight synchronized ranges with synchronized shuttle.Reference
PTO & Hydraulics
PTO (claimed)70.8 kWReference
PTO (tested)76.1 kWReference
Typeclosed centerReference
Pressure200.0 barReference
Valves2Reference
Pump flow109.8 lpmReference
SCV flow104.8 lpmReference
Rear TypeIIReference
Rear lift (at 24"/610mm)3175 kgReference
Rear PTOindependentReference
Clutchwet discReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@2000Reference
Engine RPM1000@2000Reference
Power at rated PTO speed74.7 kWReference
Dimensions
Wheelbase286 cmReference
Weight10400 to 11300 poundsReference
Front tire11.00-16Reference
Rear tire16.9R38Reference
Ag front11.00-16Reference
Ag rear16.9R38Reference
Length439 cmReference
Width223 cmReference
Height (cab)276 cmReference
Flange rear axleReference
4WD ROPS Shipping4717 kgReference
4WD Cab Shipping5125 kgReference
4WD Cab Operating5041 kgReference
White 6710 attachments
front-end loaderReference
6710 Serial Numbers
1998G001001Reference
1999H001001Reference
2000J001001Reference
2001K001001Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Battery volts12Reference
Attachment overview
White 688 loaderReference
White 688 SL loaderReference
Test results
Diesel 32-speed 4WDSeptember 16 - 23, 1999Link: Nebraska Tractor Test 1763 fileReference
PTO performanceReference
Fuel use21.6 l/hourReference
Fuel use23.1 l/hourReference
Fuel use22.3 l/hourReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
