Tractor · 1998Unverified

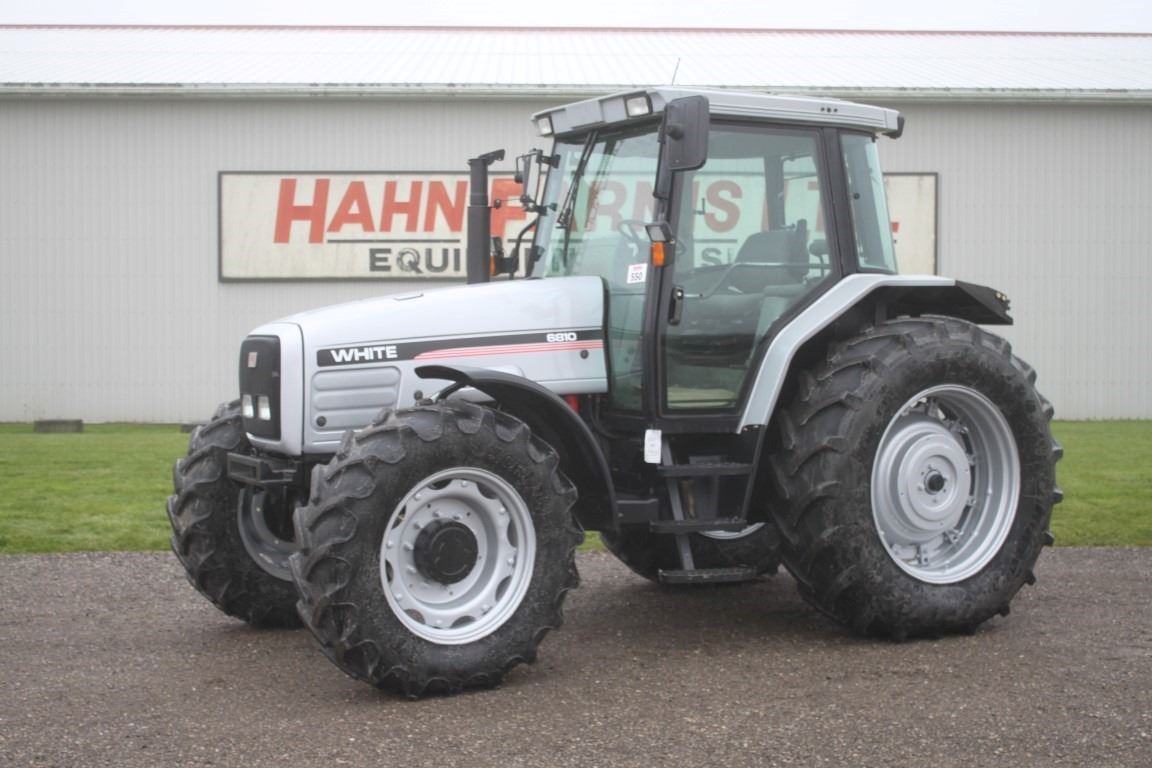

White 6810
White 6810 — Utility tractor · 111 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
111 hp
Max power
89.4 kW
Weight
10400 to 12725 pounds
Hover a source tag to verify
Overview
ManufacturerWhite (a part of AGCO)Reference
Utility tractorReference
Built in Beauvais, FranceReference
Original price was $51,000 in 1999Reference
Two- or four-wheel driveReference
Final drivesinboard planetaryReference
Differential lockelectro-hydraulic front and rearReference
Power steeringReference
Hydraulic wet disc brakesReference
Two-post ROPS. Cab optional with air-conditioning. FieldStar readyReference
Variants
8785similar AGCO Allis modelReference
Engine
Cummins 5.9L 6-cyl dieselReference
ROPS Fuel tank159.0 LReference
Cab] Fuel tank223.3 LReference
Drawbar (tested)71.5 kWReference
Cummins B5.9TReference
turbocharged dieselReference
6-cylinderReference
liquid-cooled inlineReference
Displacement5.9 LReference
Bore/Stroke102 x 120 mmReference
Air cleanerdry elementsReference
Compression17.4:1Reference
Rated RPM2200Reference
Starter volts12Reference
Max power89.4 kWReference
Power at rated engine speed82.9 kWReference
Max power71.5 kWReference
Transmission
32-speed four-speed power shiftReference
TransmissionQuadrashiftReference
Typefour-speed power shiftReference
Gears32 forward and reverseReference
Clutchwet discReference
Four power shift gears in eight synchronized ranges with synchronized shuttle.Reference
PTO & Hydraulics
PTO (claimed)82.0 kWReference
PTO (tested)89.4 kWReference
Typeclosed centerReference
Pressure200.0 barReference
Valves2 or 3Reference
Pump flow109.8 lpmReference
SCV flow104.1 lpmReference
Rear TypeIIReference
Rear lift (at 24"/610mm)4082 kgReference
Rear PTOindependentReference
Clutchwet discReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@2000Reference
Engine RPM1000@2000Reference
Power at rated PTO speed87.9 kWReference
Dimensions
Wheelbase286 cmReference
Weight10400 to 12725 poundsReference
Front tire11.00-16Reference
Rear tire18.4R38Reference
Ag front11.00-16Reference
Ag rear18.4R38Reference
Length439 cmReference
Width223 cmReference
Height (cab)276 cmReference
Bar rear axle82 by 2235 mmReference
Bar rear axle82 by 2870 mmReference
4WD ROPS Shipping4717 kgReference
4WD Cab Shipping5125 kgReference
4WD Cab Operating5772 kgReference
White 6810 attachments
front-end loaderReference
6810 Serial Numbers
1998G001001Reference
1999H001001Reference
2000J001001Reference
2001K001001Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Battery volts12Reference
Attachment overview
White 688 loaderReference
White 688 SL loaderReference
Test results
Diesel 32-speed 4WDJune 14 - 19, 2000Link: OCED Tractor Test 1780 fileReference
PTO performanceReference
Fuel use26.1 l/hourReference
Fuel use26.5 l/hourReference
Drawbar performanceReference
Gear 1HB used for power test.Reference
Max pull5409 kgReference
Gear 2LC used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
