Tractor · 1998Unverified

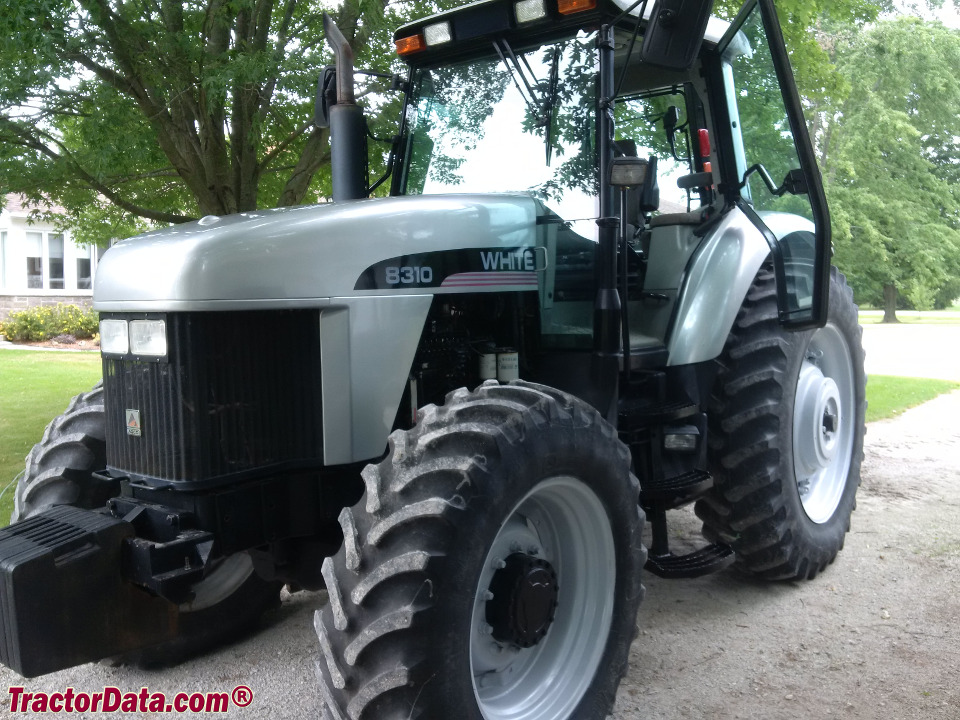

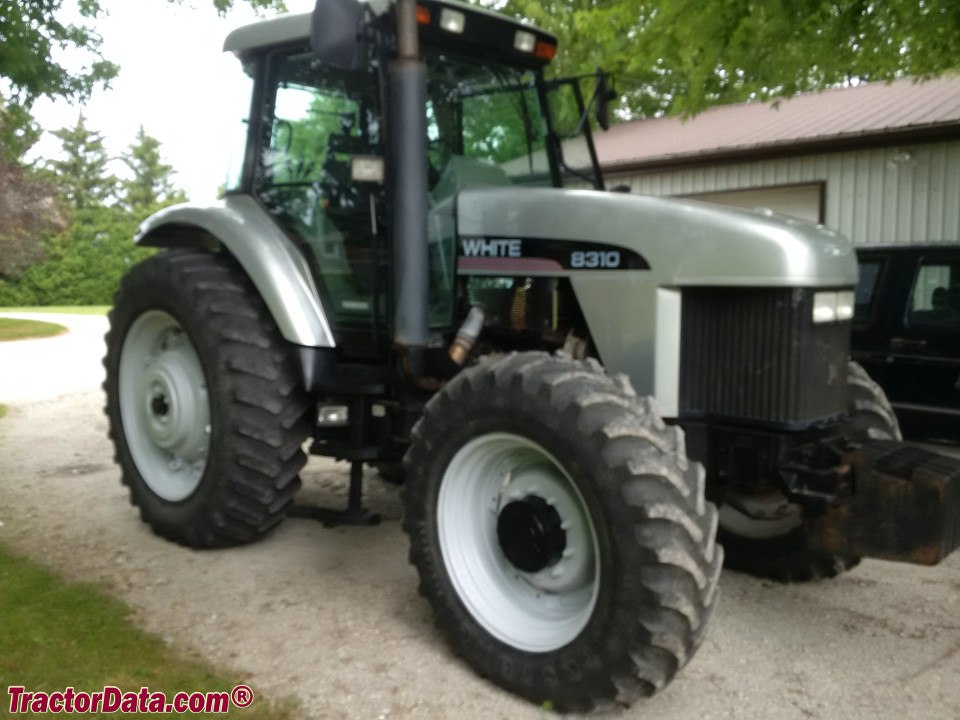

White 8310
White 8310 — Row-Crop tractor · 126 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
126 hp
Max power
82.4 kW
Weight
6804 kg
Hover a source tag to verify
Overview
ManufacturerWhite (a part of AGCO)Reference
Row-Crop tractorReference
FactoriesColdwater, Ohio, USAReference
FactoriesBeauvais, FranceReference
Original price was $74,000 in 1999Reference
Two- or four-wheel driveReference
Power steeringReference
Hydraulic wet disc brakesReference
Cab standard.Reference
Variants
9735similar AGCO Allis modelReference
Engine
Cummins 5.9L 6-cyl dieselReference
Fuel tank378.5 LReference
Drawbar (tested)82.4 kWReference
CumminsReference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement5.9 LReference
Bore/Stroke102 x 120 mmReference
Rated RPM2200Reference
Starter volts12Reference
Power at rated engine speed93.8 kWReference
Max power82.4 kWReference
Transmission
32-speed partial power shiftReference
18-speed full power shiftReference
TransmissionQuadrashiftReference
Typepartial power shiftReference
Gears32 forward and reverseReference
ManufacturerFunk-DeereReference
Typefull power shiftReference
Gears18 forward and 6 reverseReference
PTO & Hydraulics
PTO (claimed)93.2 kWReference
PTO (tested)93.8 kWReference
Typeclosed centerReference
Valves3Reference
Pump flow106.0 lpmReference
Rear TypeII,IIINReference
Rear lift4717 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Power at rated PTO speed101.3 kWReference
Dimensions
Wheelbase276 cmReference
Weight6804 kgReference
Front tire11.00-16Reference
Rear tire18.4R38Reference
Ag front11.00-16Reference
Ag rear18.4R38Reference
Length434 cmReference
Width249 cmReference
Height (cab)287 cmReference
Shipping weight6804 kgReference
White 8310 attachments
front-end loaderReference
8310 Serial Numbers
1998G001001Reference
1999H001001Reference
2000J001001Reference
2001K001001Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Battery volts12Reference
Attachment overview
White 688 loaderReference
White 688 SL loaderReference
Test results
Diesel 32-speed 4WDOctober 27 - November 19, 1998Link: OCED Tractor Test 1759 fileReference
PTO performanceReference
Fuel use62.5 l/hourReference
Fuel use1238.8 l/hourReference
Drawbar performanceReference
Fuel use28.8 l/hourReference
Gear 16 used for power test.Reference
Max pull6683 kgReference
Gear 6 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
