Tractor · 1998Unverified

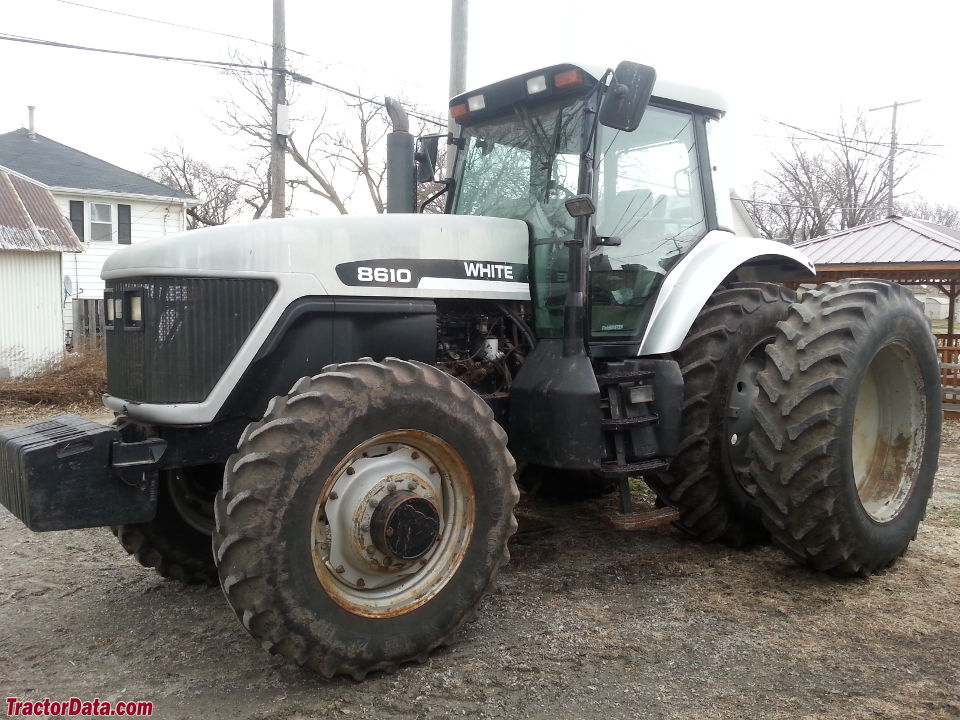

White 8610
White 8610 — FieldMaster 8010 Series · 184 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
184 hp
Max power
119.5 kW
Weight
18500 to 19485 pounds
Hover a source tag to verify
Overview
ManufacturerWhite (a part of AGCO)Reference
Row-Crop tractorReference
FactoriesColdwater, Ohio, USAReference
FactoriesBeauvais, FranceReference
Original price was $110,000 in 1999Reference
Four-wheel driveReference
Power steeringReference
Hydraulic wet disc brakesReference
Cab standard.Reference
Variants
9765similar AGCO Allis modelReference
Engine
Cummins 8.3L 6-cyl dieselReference
Fuel tank454.2 LReference
Drawbar (tested)119.5 kWReference
Cummins C8.3AReference
turbocharged aftercooled dieselReference
6-cylinderReference
liquid-cooledReference
Displacement8.3 LReference
Bore/Stroke114 x 135 mmReference
Air cleanerdual paper elementsReference
Compression17.3:1Reference
Rated RPM2200Reference
StarterelectricReference
Starter volts12Reference
Power at rated engine speed137.4 kWReference
Max power119.5 kWReference
Transmission
18-speed full power shiftReference
ManufacturerFunk-DeereReference
Typefull power shiftReference
Gears18 forward and 6 reverseReference
Clutchelectro-hydraulic wet discReference
PTO & Hydraulics
PTO (claimed)134.2 kWReference
PTO (tested)137.4 kWReference
Typeclosed center pressure-flow compensated (PFC)Reference
Pressure200.0 barReference
Valves4Reference
Pump flow109.8 lpmReference
Pump flow147.6 lpmReference
Rear TypeIII/IIINReference
Rear lift (at 24"/610mm)6350 kgReference
Rear PTOindependentReference
Rear PTO Type1000Reference
Engine RPM1000@2100Reference
Power at rated PTO speed149.1 kWReference
Dimensions
Wheelbase307 cmReference
Weight18500 to 19485 poundsReference
Front tire14.9-28Reference
Rear tire18.4R38Reference
Ag front14.9-28Reference
Ag rear18.4R38Reference
Length515 cmReference
Width249 cmReference
Height (cab)307 cmReference
Front tread152 to 223 cmReference
Rear tread156 to 320 cmReference
Shipping8391 kgReference
Operating8838 kgReference
Ballasted11469 kgReference
White 8610 attachments
front-end loaderReference
8610 Serial Numbers
1998CG001001Reference
1999CH001001Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Test results
Diesel 18-speed 4WDSeptember 12 - 26, 2000Link: OCED Tractor Test 1782 fileReference
PTO performanceReference
Fuel use43.5 l/hourReference
Fuel use45.0 l/hourReference
Drawbar performanceReference
Fuel use43.1 l/hourReference
Gear 8 used for power test.Reference
Max pull10737 kgReference
Gear 3 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
