Tractor · 1998Unverified

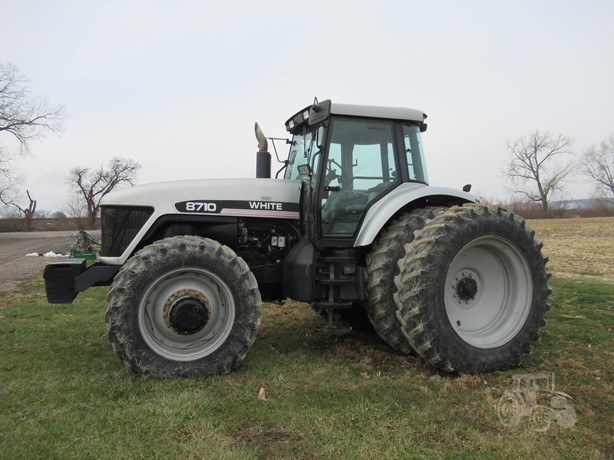

White 8710
White 8710 — FieldMaster 8010 Series · 204 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
204 hp
Max power
168.0 kW
Weight
18800 to 19630 pounds
Hover a source tag to verify
Overview
ManufacturerWhite (a part of AGCO)Reference
FactoriesColdwater, Ohio, USAReference
FactoriesBeauvais, FranceReference
Original price was $120,000 in 1999Reference
Four-wheel driveReference
Power steeringReference
Hydraulic wet disc brakesReference
Cab standard.Reference
Variants
9775similar AGCO Allis modelReference
Engine
Cummins 8.3L 6-cyl dieselReference
Fuel tank454.2 LReference
Drawbar (tested)132.1 kWReference
Cummins C8.3AReference
turbocharged aftercooled dieselReference
6-cylinderReference
liquid-cooledReference
Displacement8.3 LReference
Bore/Stroke114 x 135 mmReference
Air cleanerdual paper elementsReference
Compression17.3:1Reference
Rated RPM2200Reference
StarterelectricReference
Starter volts12Reference
Max power168.0 kWReference
Power at rated engine speed152.4 kWReference
Max power132.1 kWReference
Transmission
18-speed full power shiftReference
ManufacturerFunk-DeereReference
Typefull power shiftReference
Gears18 forward and 6 reverseReference
Clutchelectro-hydraulic wet discReference
PTO & Hydraulics
PTO (claimed)149.1 kWReference
PTO (tested)168.0 kWReference
Typeclosed center pressure-flow compensated (PFC)Reference
Pressure200.0 barReference
Valves4Reference
Pump flow109.8 lpmReference
Pump flow147.6 lpmReference
Rear TypeIII/IIINReference
Rear lift (at 24"/610mm)6350 kgReference
Rear PTOindependentReference
Rear PTO Type1000Reference
Engine RPM1000@2100Reference
Power at rated PTO speed165.1 kWReference
Dimensions
Wheelbase307 cmReference
Weight18800 to 19630 poundsReference
Front tire16.9-28Reference
Rear tire18.4R42Reference
Ag front16.9-28Reference
Ag rear18.4R42Reference
Length515 cmReference
Width249 cmReference
Height (cab)307 cmReference
Front tread152 to 223 cmReference
Rear tread162 to 327 cmReference
Shipping8527 kgReference
Operating8904 kgReference
Ballasted12192 kgReference
White 8710 attachments
front-end loaderReference
8710 Serial Numbers
1998CG001001Reference
1999CH001001Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Test results
Diesel 18-speed 4WDMay 7 - 18, 2001Link: OCED Tractor Test 1794 fileReference
PTO performanceReference
Fuel use51.1 l/hourReference
Fuel use49.2 l/hourReference
Fuel use50.7 l/hourReference
Drawbar performanceReference
Gear 11 used for power test.Reference
Max pull11098 kgReference
Gear 4 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
