Tractor · 1998Unverified

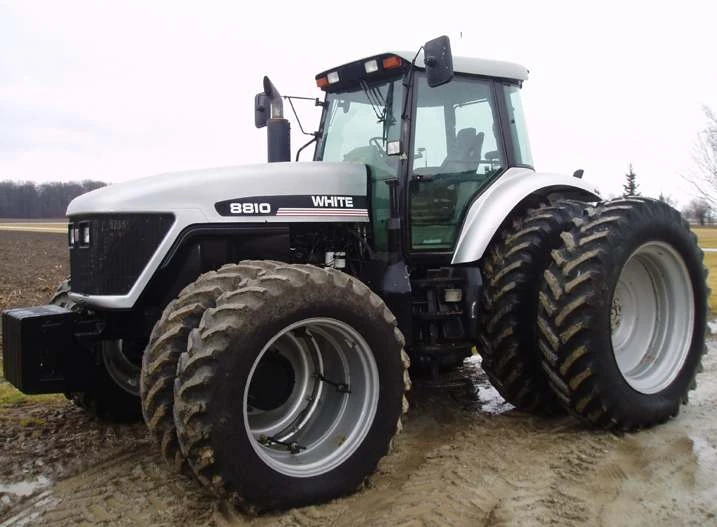

White 8810
White 8810 — FieldMaster 8010 Series · 228 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
228 hp
Max power
174.0 kW
Weight
18800 to 19745 pounds
Hover a source tag to verify
Overview
ManufacturerWhite (a part of AGCO)Reference
FactoriesColdwater, Ohio, USAReference
FactoriesBeauvais, FranceReference
Original price was $135,000 in 1999Reference
Four-wheel driveReference
Power steeringReference
Differential hydraulic wet disc brakesReference
Cab standard.Reference
Variants
9785similar AGCO Allis modelReference
Engine
Cummins 8.3L 6-cyl dieselReference
Fuel tank454.2 LReference
Drawbar (tested)149.6 kWReference
Cummins C8.3AReference
turbocharged aftercooled dieselReference
6-cylinderReference
liquid-cooledReference
Displacement8.3 LReference
Bore/Stroke114 x 135 mmReference
Air cleanerdual paper elementsReference
Compression17.3:1Reference
Rated RPM2200Reference
StarterelectricReference
Starter volts12Reference
Max power174.0 kWReference
Power at rated engine speed170.0 kWReference
Max power149.6 kWReference
Transmission
18-speed full power shiftReference
ManufacturerFunk-DeereReference
Typefull power shiftReference
Gears18 forward and 6 reverseReference
Clutchelectro-hydraulic wet discReference
PTO & Hydraulics
PTO (claimed)167.8 kWReference
PTO (tested)174.0 kWReference
Typeclosed center pressure-flow compensated (PFC)Reference
Pressure200.0 barReference
Valves4Reference
Pump flow109.8 lpmReference
Pump flow147.6 lpmReference
Rear TypeIII/IIINReference
Rear lift (at 24"/610mm)6350 kgReference
Rear PTOindependentReference
Rear PTO Type1000Reference
Engine RPM1000@2100Reference
Power at rated PTO speed174.0 kWReference
Dimensions
Wheelbase307 cmReference
Weight18800 to 19745 poundsReference
Front tire16.9R28Reference
Rear tire18.4R42Reference
Ag front16.9R28Reference
Ag rear18.4R42Reference
Length515 cmReference
Width249 cmReference
Height (cab)307 cmReference
Front tread152 to 223 cmReference
Rear tread162 to 327 cmReference
Shipping8527 kgReference
Operating8956 kgReference
Ballasted12954 kgReference
White 8810 attachments
front-end loaderReference
8810 Serial Numbers
1998CG001001Reference
1999CH001001Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Test results
Cummins diesel 18-speed 4WDMay 2 - 18, 2001Link: OCED Tractor Test 1795 fileReference
PTO performanceReference
Fuel use53.7 l/hourReference
Fuel use54.5 l/hourReference
Drawbar performanceReference
Fuel use54.9 l/hourReference
Gear 11 used for power test.Reference
Max pull8293 kgReference
Gear 7 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
