Tractor · 1986Unverified

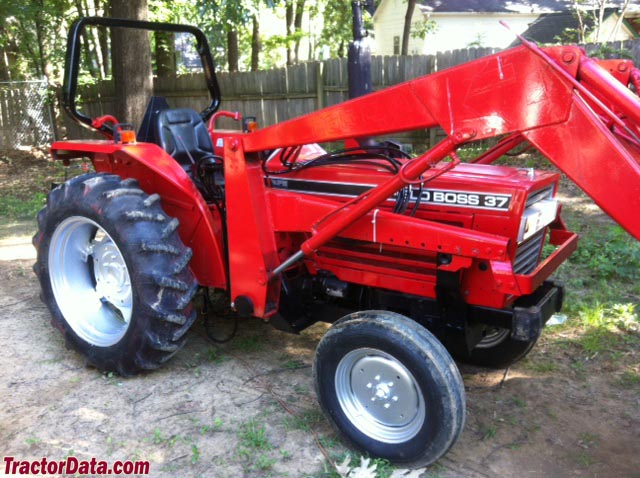

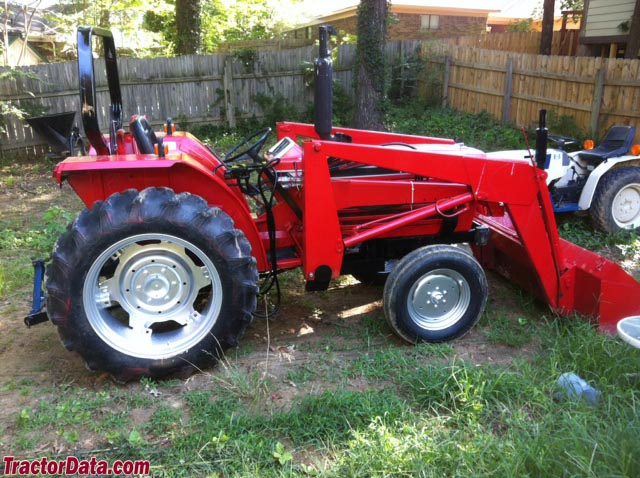

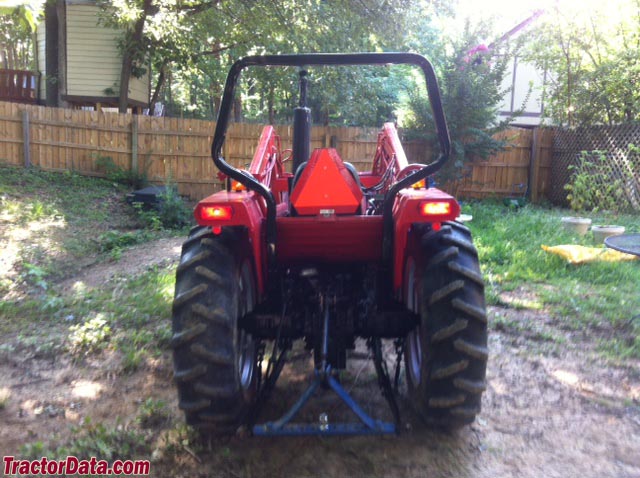

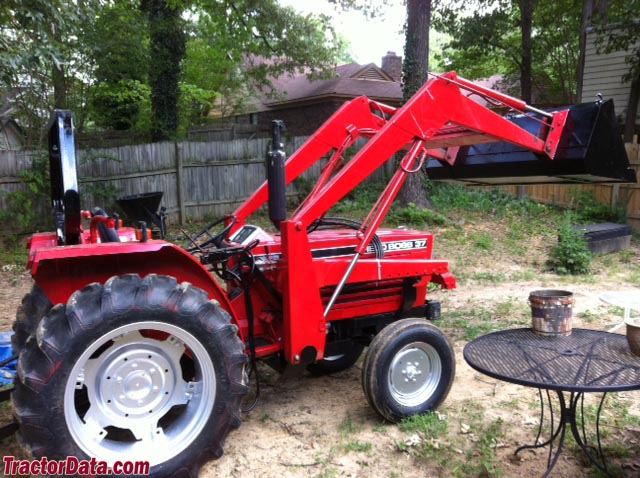

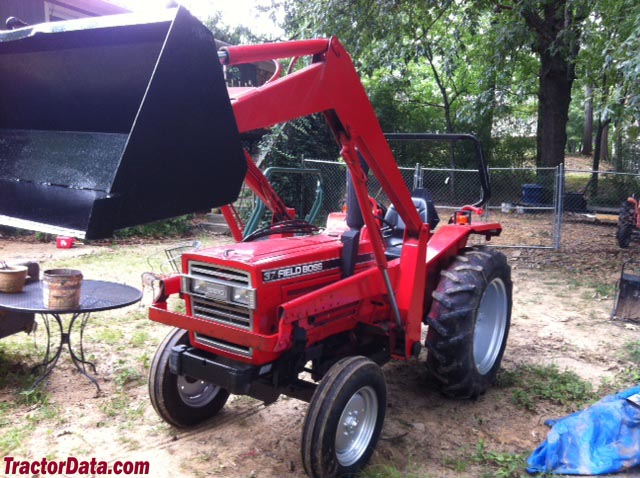

White Field Boss 37
White Field Boss 37 — Compact Utility tractor · 30 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
30 hp
Weight
1324 kg
Hover a source tag to verify
Overview
DistributorWhiteReference
ManufacturerIsekiReference
Compact Utility tractorReference
Original price$11,000 (1988)Reference
Two- or four-wheel driveReference
Final driveshelical gearReference
SteeringpowerReference
Mechanical wet disc brakesReference
Two-post ROPS. Optional canopy.Reference
Variants
TE4370similar Iseki modelReference
Engine
Isuzu 1.8L 4-cyl dieselReference
Fuel tank40.0 LReference
Engine27.6 kWReference
Isuzu 4FB1Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement1.8 LReference
Bore/Stroke84 x 82 mmReference
Power27.6 kWReference
Air cleanerdry elementReference
Pre-heatingglow plugsReference
Compression21:1Reference
Rated RPM2600Reference
Firing order1-3-4-2Reference
Starter volts12Reference
Oil capacity7.0 LReference
Transmission
18-speedReference
Gears18 forward and 6 reverseReference
Clutchdry discReference
PTO & Hydraulics
PTO (claimed)22.4 kWReference
Typeopen centerReference
Pressure147.2 barReference
Valves1 or 2Reference
Pump flow29.1 lpmReference
Rear Type1Reference
Controlposition and draft controlReference
Rear PTOindependentReference
Clutchelectric-hydraulic wet discsReference
Rear PTO Type540Reference
Engine RPM540@2232Reference
Dimensions
Wheelbase180 cmReference
Weight1324 kgReference
Front tire6.00-16Reference
2WD Rear tire12.4-28Reference
2WD Standard tires (ag)Front: 6.00-16. Rear: 12.4-28Reference
4WD Standard tires (ag)Front: 9.5-16. Rear: 8-16Reference
Lawn/turf front8-16Reference
Lawn/turf rear11.2-28Reference
Length321 cmReference
Width181 cmReference
Height (ROPS)213 cmReference
Height (exhaust)200 cmReference
2WD, 3,153 4WD} Shipping weight1324 kgReference
Ground clearance33 cmReference
2WD Front tread115 to 154 cmReference
4WD Front tread120 cmReference
Rear tread114 to 150 cmReference
White Field Boss 37 attachments
front-end loaderReference
Field Boss 37 Serial Numbers
Location:Frame, front-leftReference
198600083 (2WD)Reference
198700121 (2WD)Reference
198800221 (2WD)Reference
19860679 (4WD)Reference
198700713 (4WD)Reference
198801025 (4WD)Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps35Reference
Battery CCA531Reference
Battery volts12Reference
Attachment overview
The White Field Boss 37 was advertised as compatible with 60 or 72 inch rear mowers, 5 or 6 foot blades, and 50 or 58 inch tillers.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
