Tractor · 1990Unverified

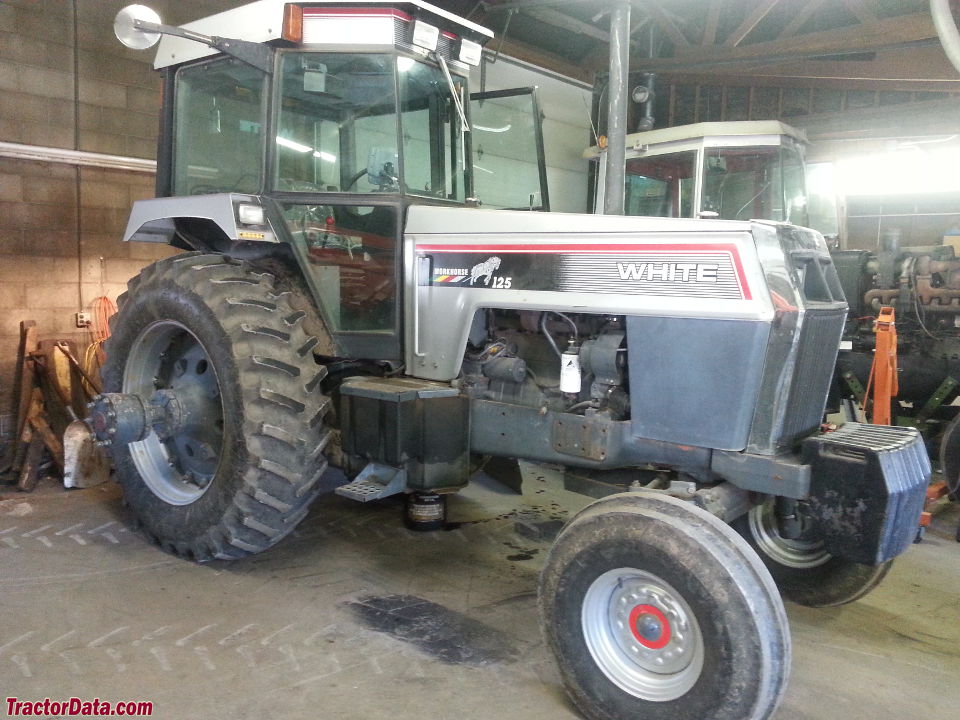

White Workhorse 125
White Workhorse 125 — Workhorse Series · 119 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
119 hp
Max power
76.8 kW
Weight
6561 kg
Hover a source tag to verify
Overview
ManufacturerWhiteReference
Row-Crop tractorReference
Original price was $55,000 in 1992Reference
Two- or four-wheel driveReference
Differential lockhydraulic rearReference
Power steeringReference
Hydraulic wet disc brakesReference
Cab standard with air-conditioning.Reference
Engine
CDC 5.9L 6-cyl dieselReference
Fuel tank219.5 LReference
Drawbar (tested)76.8 kWReference
CDCReference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement5.9 LReference
Bore/Stroke102 x 120 mmReference
Air cleanerdual paper elementsReference
Compression18.5:1Reference
Rated RPM2200Reference
Starter volts12Reference
Power at rated engine speed88.8 kWReference
Max power76.8 kWReference
Transmission
18-speed partial power shiftReference
Transmission3x6 Over/UnderReference
Typepartial power shiftReference
Gears18 forward and 6 reverseReference
Six forward and two reverse gears with an over and under powershift for each gear.Reference
PTO & Hydraulics
PTO (tested)88.8 kWReference
Typeopen centerReference
Pressure155.1 barReference
Rear valves2 or 3Reference
Pump flow83.3 lpmReference
Rear TypeIII/IIReference
Controllower-link draft sensingReference
Rear lift3276 kgReference
Rear lift3830 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Power at rated PTO speed90.9 kWReference
Dimensions
2WD Wheelbase283 cmReference
4WD Wheelbase251 cmReference
Weight6561 kgReference
Front tire10.00-16Reference
Rear tire18.4R-38Reference
Ag front10.00-16Reference
Ag rear18.4R-38Reference
Length441 cmReference
Operating weight6561 kgReference
Ballasted weight6946 kgReference
2WD Front tread152 to 213 cmReference
4WD Front tread151 to 220 cmReference
Rear tread152 to 269 cmReference
125 Serial Numbers
Location:Left rear side of frameReference
1990404066Reference
1991404601Reference
1992500001Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Test results
Diesel 18-speed 2WDSeptember 21 - October 4, 1988Link: Nebraska Tractor Test 1615 fileReference
PTO performanceReference
Fuel use26.9 l/hourReference
Fuel use27.3 l/hourReference
Drawbar performanceReference
Fuel use26.5 l/hourReference
Gear 4-direct used for power test.Reference
Max pull6480 kgReference
Gear 1-Over used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
