Tractor · 1990Unverified

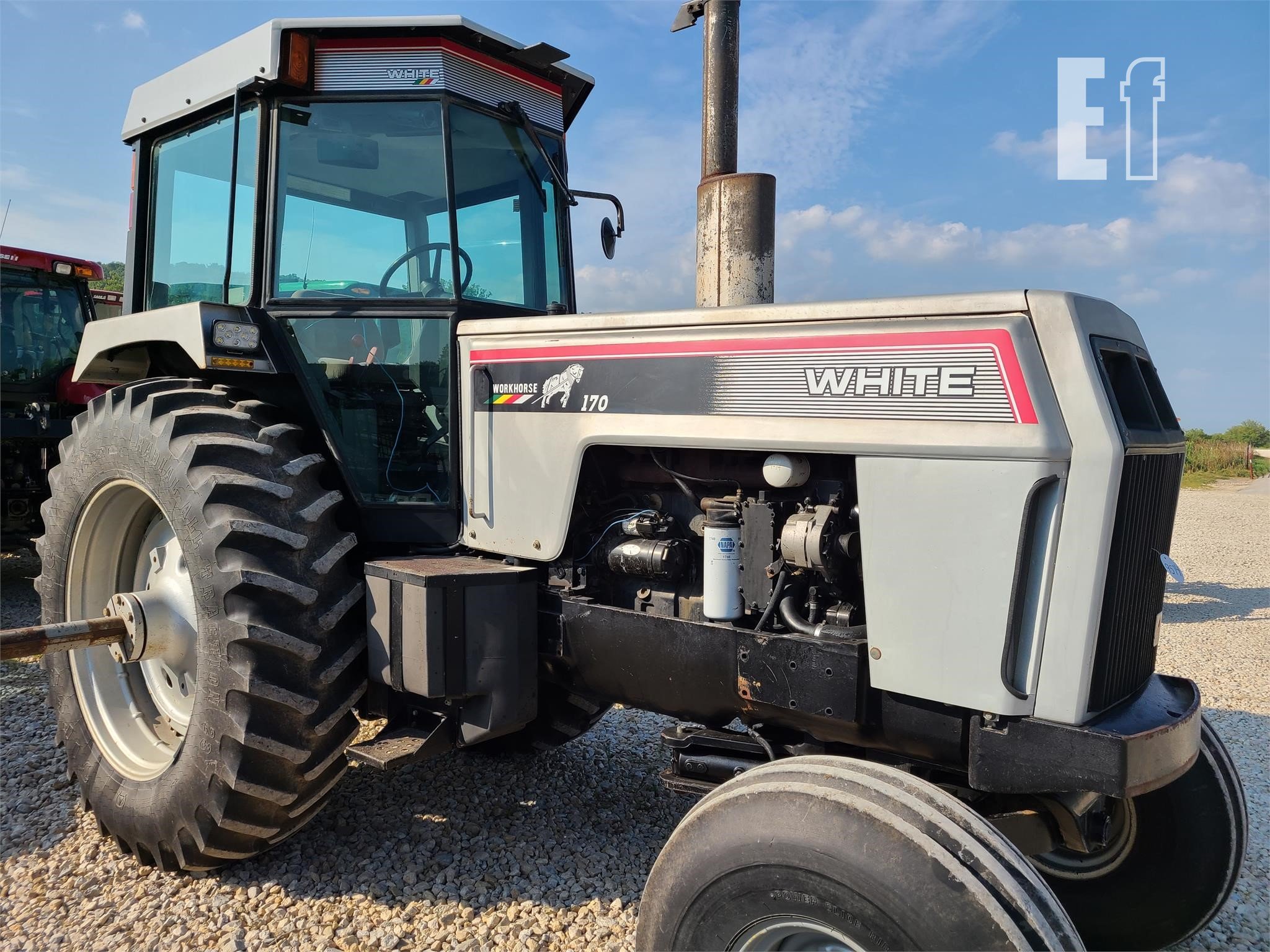

White Workhorse 170
White Workhorse 170 — Workhorse Series · 162 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
162 hp
Max power
104.7 kW
Weight
7842 kg
Hover a source tag to verify
Overview
ManufacturerWhiteReference
Row-Crop tractorReference
Original price was $66,000 in 1992Reference
Two- or four-wheel driveReference
Differential lockhydraulic rearReference
Power steeringReference
Independent hydraulic wet disc brakesReference
Cab standard with air-conditioning.Reference
Engine
CDC-Cummins 8.3L 6-cyl dieselReference
Fuel tank280.1 LReference
Drawbar (tested)104.7 kWReference
CDC-CumminsReference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement8.3 LReference
Bore/Stroke114 x 135 mmReference
Air cleanerdual paper elementsReference
Compression17.3:1Reference
Rated RPM2200Reference
Starter volts12Reference
Power at rated engine speed121.2 kWReference
Max power104.7 kWReference
Transmission
18-speed partial power shiftReference
Transmission3x6 Over/UnderReference
Typepartial power shiftReference
Gears18 forward and 6 reverseReference
Six forward and two reverse gears with an over and under powershift for each gear.Reference
PTO & Hydraulics
PTO (claimed)119.3 kWReference
PTO (tested)121.2 kWReference
Typeclosed centerReference
Pressure172.4 barReference
Rear valves2 or 3Reference
Pump flow83.3 lpmReference
Rear TypeIII/IIReference
Controllower-link draft sensingReference
Rear lift3855 kgReference
Rear lift4490 kgReference
Rear PTOindependentReference
Rear PTO Type1000Reference
Power at rated PTO speed123.8 kWReference
Dimensions
2WD Wheelbase284 cmReference
4WD Wheelbase259 cmReference
Weight7842 kgReference
Front tire11.00-16Reference
Rear tire18.4R-38Reference
Ag front11.00-16Reference
Ag rear18.4R-38Reference
2WD Length457 cmReference
4WD Length439 cmReference
Operating weight7842 kgReference
Ballasted weight8550 kgReference
2WD Front tread152 to 203 cmReference
4WD Front tread160 to 205 cmReference
Rear tread152 to 243 cmReference
170 Serial Numbers
Location:Left rear side of frameReference
1990404228Reference
1991404766Reference
1992510001Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Test results
Diesel 18-speed 4WDApril 5 - 19, 1988Link: Nebraska Tractor Test 1607 fileReference
PTO performanceReference
Fuel use34.8 l/hourReference
Fuel use35.2 l/hourReference
Drawbar performanceReference
Fuel use34.4 l/hourReference
Gear 4-direct used for power test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
