Tractor · 1990Unverified

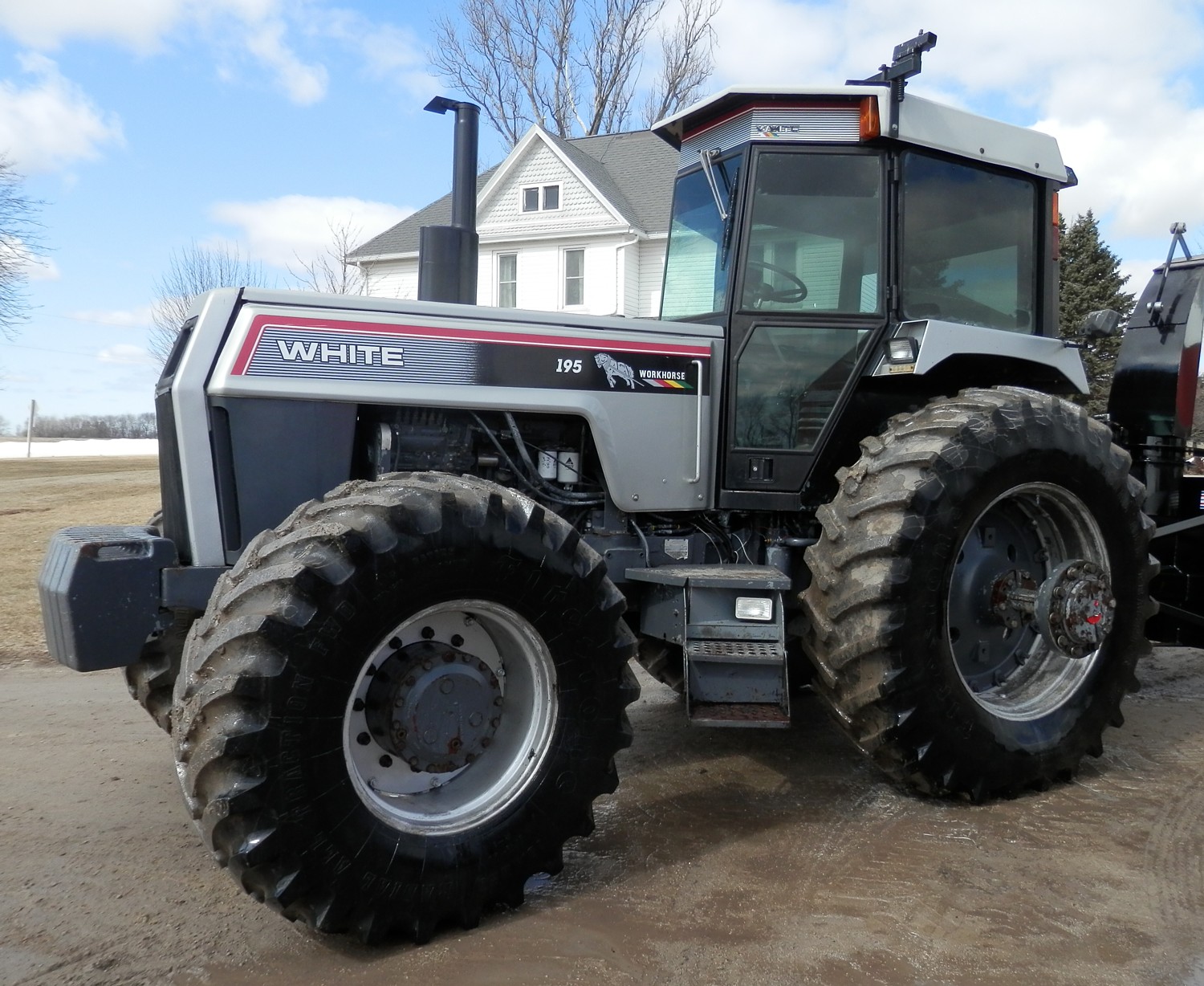

White Workhorse 195
White Workhorse 195 — Workhorse Series · 188 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
188 hp
Max power
122.0 kW
Weight
7051 kg
Hover a source tag to verify
Overview
ManufacturerWhiteReference
Row-Crop tractorReference
Original price was $66,000 in 1992Reference
Four-wheel driveReference
Differential lockhydraulic rearReference
Power steeringReference
Differential hydraulic wet disc brakesReference
Cab standard with air-conditioning.Reference
Engine
CDC-Cummins 8.3L 6-cyl dieselReference
Fuel tank280.1 LReference
Drawbar (tested)122.0 kWReference
CDC-CumminsReference
turbocharged aftercooled dieselReference
6-cylinderReference
liquid-cooledReference
Displacement8.3 LReference
Bore/Stroke114 x 135 mmReference
Air cleanerdual paper elementsReference
Compression16.5:1Reference
Rated RPM2200Reference
Starter volts12Reference
Power at rated engine speed139.9 kWReference
Max power122.0 kWReference
Transmission
18-speed partial power shiftReference
Transmission3x6 Over/UnderReference
Typepartial power shiftReference
Gears18 forward and 6 reverseReference
Six forward and two reverse gears with an over and under powershift for each gear.Reference
PTO & Hydraulics
PTO (tested)139.9 kWReference
Typeclosed centerReference
Pressure172.4 barReference
Rear valves2 or 3Reference
Pump flow83.3 lpmReference
Rear TypeIIIReference
Controllower-link draft sensingReference
Rear lift3855 kgReference
Rear lift4490 kgReference
Rear PTOindependentReference
Rear PTO Type1000Reference
Power at rated PTO speed143.5 kWReference
Dimensions
4WD Wheelbase259 cmReference
Weight7051 kgReference
2WD Length457 cmReference
4WD Length439 cmReference
Operating weight7051 kgReference
Ballasted weight8514 kgReference
2WD Front tread152 to 203 cmReference
4WD Front tread160 to 205 cmReference
Rear tread152 to 243 cmReference
195 Serial Numbers
Location:Left rear side of main frameReference
1990404166Reference
1991404826Reference
1992511001Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Test results
Diesel 18-speed 4WDApril 5 - 18, 1988Link: Nebraska Tractor Test 1608 fileReference
PTO performanceReference
Fuel use41.3 l/hourReference
Fuel use42.0 l/hourReference
Drawbar performanceReference
Fuel use40.9 l/hourReference
Gear 4-direct used for power test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
