Tractor · 1994Unverified

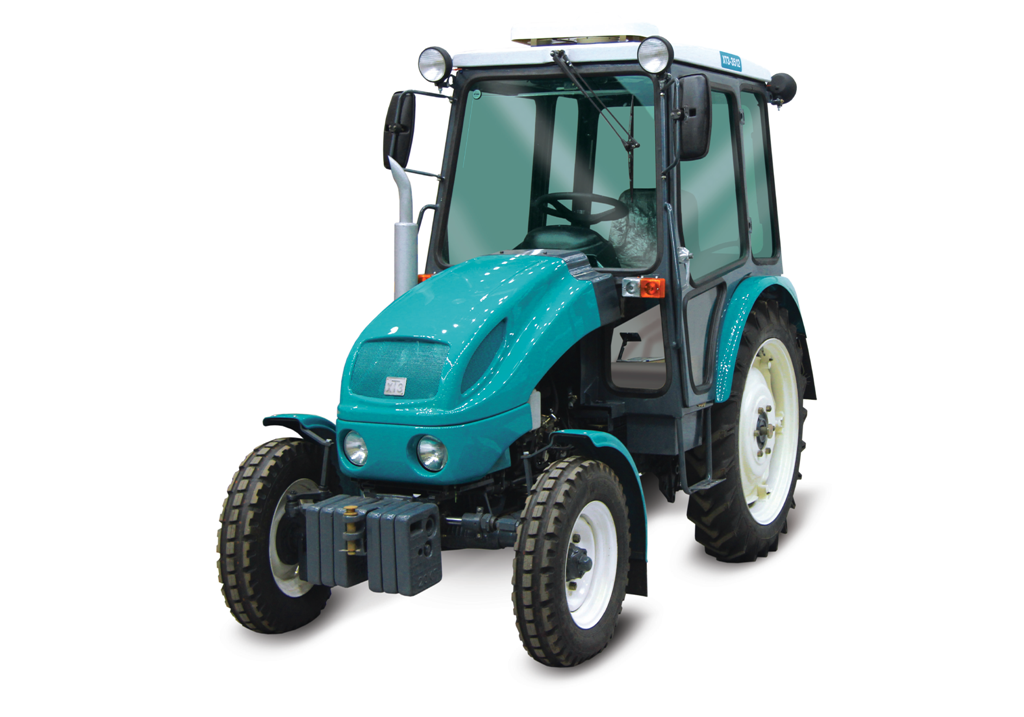

XTZ XTZ-2511

Name: XTZ XTZ-2511
Brand: XTZ

XTZ XTZ-2511 — Compact Utility tractor · 27 hp. Reference specifications; pending source verification.

The XTZ XTZ-2511 is a 27 hp tractor, making it one of the more compact options in its class. Manufactured in 1994, it features a 2-cylinder diesel air-cooled engine, which is paired with a two-wheel drive system and an 8-speed gearbox. The listed weight of the tractor is 2199 kg, and it is suitable for tasks covering areas of approximately 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

27 hp

Weight

2199 kg

Catalogue coverage

Variants represented

Richest spec table

35 rows

Recorded power

27 hp

Recorded weight

2199 kg

Transmissions

8-speed

Production years

1994-1994

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerXTZReference

Compact Utility tractorReference

Built in Kharkiv, UkraineReference

Two-wheel driveReference

Manual steeringReference

Cab standard, heater available.Reference

Engine

VMTZ 2.1L 2-cyl dieselReference

Fuel tank50.0 LReference

Engine20.1 kWReference

VMTZ D-120Reference

dieselReference

2-cylinderReference

air-cooledReference

Displacement2.1 LReference

Bore/Stroke105 x 120 mmReference

Power20.1 kWReference

StarterelectricReference

Starter volts12Reference

Transmission

8-speedReference

Gears8 forward and 6 reverseReference

Clutchdry discReference

PTO & Hydraulics

Rear PTOindependentReference

Rear PTO Type540Reference

Dimensions

Wheelbase186 cmReference

Weight2199 kgReference

Front tire6.5R16Reference

Rear tire9.5R32Reference

Ag front6.5R16Reference

Ag rear9.5R32Reference

Length350 cmReference

Width141 cmReference

Height249 cmReference

Ground clearance27 cmReference

Front tread119 to 139 cmReference

Rear tread109 to 150 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
