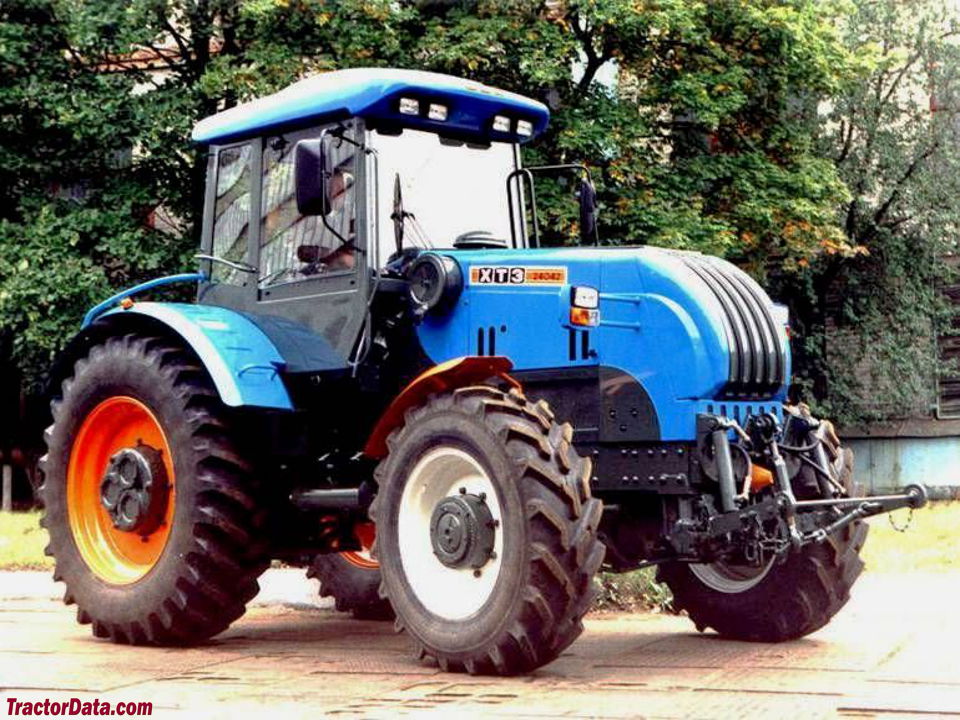

The XTZ XTZ-3510 is a tractor with a rated output of 35 hp — making it one of the more compact options in its class. Under the hood is a 2-cylinder diesel air-cooled engine, driving through two-wheel drive with a 8-speed gearbox. Listed weight is 2199 kg, and it is aimed at jobs of around up to 200 ac. The available specification table below shows both UK and US units.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
35 hp
Weight
2199 kg
Catalogue coverage
Variants represented
2
Richest spec table
35 rows
Recorded power
35 hp
Recorded weight
2199 kg
Transmissions
8-speed
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerXTZReference
Compact Utility tractorReference
Built in Kharkiv, UkraineReference
Two-wheel driveReference
Manual steeringReference
Cab standard, heater available.Reference
Engine
Deutz 1.7L 2-cyl dieselReference
Fuel tank50.0 LReference
Engine26.1 kWReference
Deutz F2L511Reference
dieselReference
2-cylinderReference
air-cooledReference
Displacement1.7 LReference
Bore/Stroke100 x 105 mmReference
Power26.1 kWReference
StarterelectricReference
Starter volts12Reference
Transmission
8-speedReference
Gears8 forward and 6 reverseReference
Clutchdry discReference
PTO & Hydraulics
Rear PTOindependentReference
Rear PTO Type540Reference
Dimensions
Wheelbase186 cmReference
Weight2199 kgReference
Front tire6.5R16Reference
Rear tire9.5R32Reference
Ag front6.5R16Reference
Ag rear9.5R32Reference
Length350 cmReference
Width141 cmReference
Height249 cmReference
Ground clearance27 cmReference
Front tread119 to 139 cmReference
Rear tread109 to 150 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
