Tractor · 2022Unverified

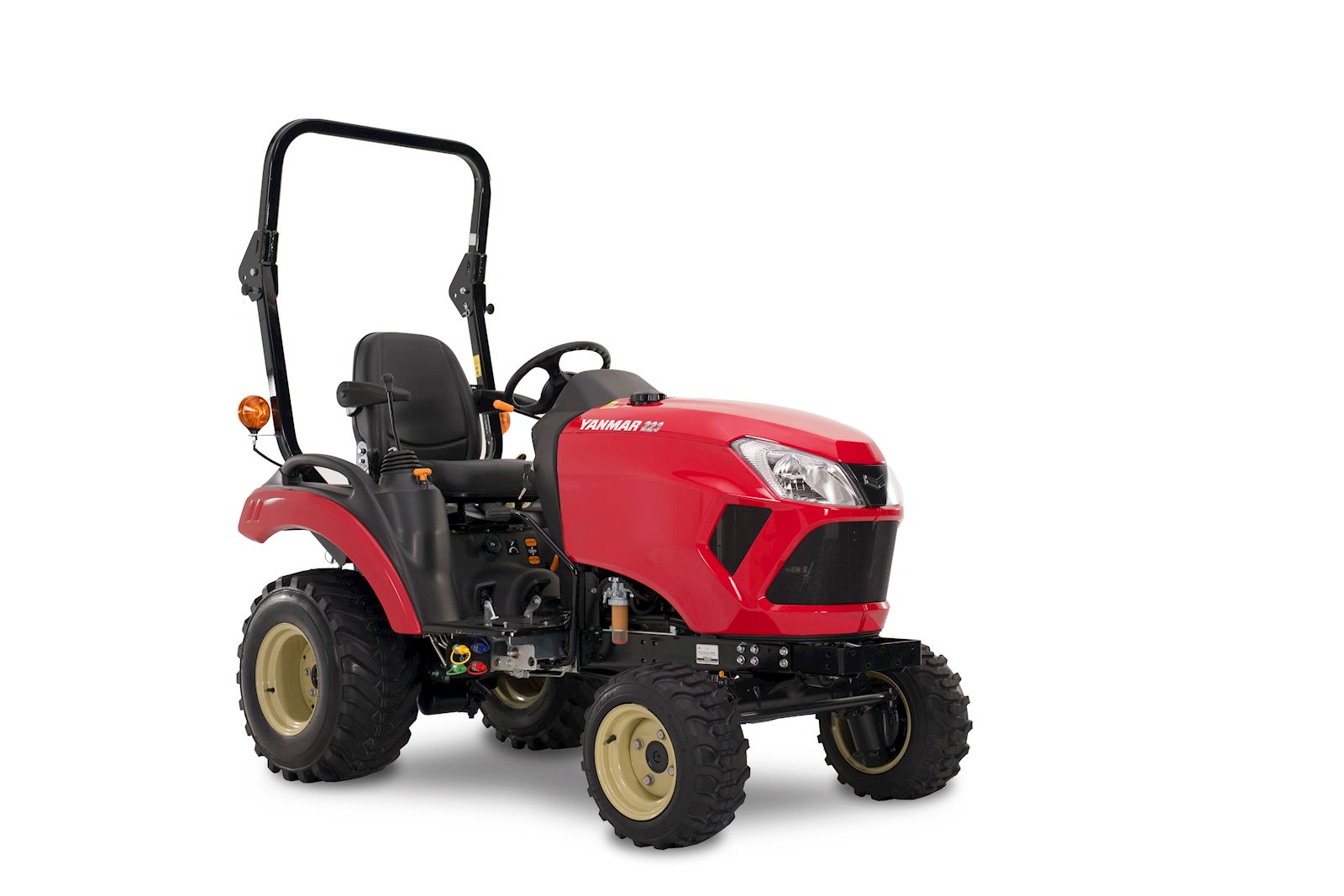

Yanmar 223
Yanmar 223 — SA Series · 22 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
22 hp
Weight
697 kg
Hover a source tag to verify
Overview
ManufacturerYanmarReference
Sub-Compact Utility tractorReference
Four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS.Reference
Engine
Yanmar 1.0L 3-cyl dieselReference
Fuel tank23.1 LReference
Engine (gross)16.0 kWReference
Engine (net)14.5 kWReference
Yanmar 3TNM74FReference
dieselReference
3-cylinderReference
liquid-cooled inlineReference
Displacement1.0 LReference
Bore/Stroke74 x 77 mmReference
Power (net)14.5 kWReference
Power (gross)16.0 kWReference
Rated RPM3200Reference
Torque53.4 NmReference
StarterelectricReference
Starter volts12Reference
Oil capacity2.9 LReference
Coolant capacity2.8 LReference
Transmission
hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and reverse (2-range)Reference
Oil capacity15.5 LReference
PTO & Hydraulics
PTO (claimed)11.6 kWReference
Typeopen centerReference
Pressure130.4 barReference
Pump flow16.3 lpmReference
Steering flow14.0 lpmReference
Rear TypeI (Limited)Reference
Controlposition controlReference
Rear lift (at 24"/610mm)299 kgReference
Rear PTOindependentReference
ClutchhydraulicReference
Rear PTO Type540 (1.375)Reference
Engine RPM554@3200Reference
Mid PTOindependentReference
Mid PTO Type16/32 15TReference
Engine RPM2057@3200Reference
Dimensions
Wheelbase147 cmReference
Weight697 kgReference
Weight128 kgReference
Weight307 kgReference
Lawn/turf front18x8.50-10Reference
Lawn/turf rear26x12.0-12Reference
Industrial front18x8.50-10Reference
Industrial rear26x12.0-12Reference
Length259 cmReference
Width120 cmReference
Height (steering wheel)129 cmReference
Height (ROPS)209 cmReference
Height (Folded ROPS)168 cmReference
Ground clearance16 cmReference
Front tread89 cmReference
Rear tread89 cmReference
Yanmar 223 attachments
60" mid-mount mower deckReference

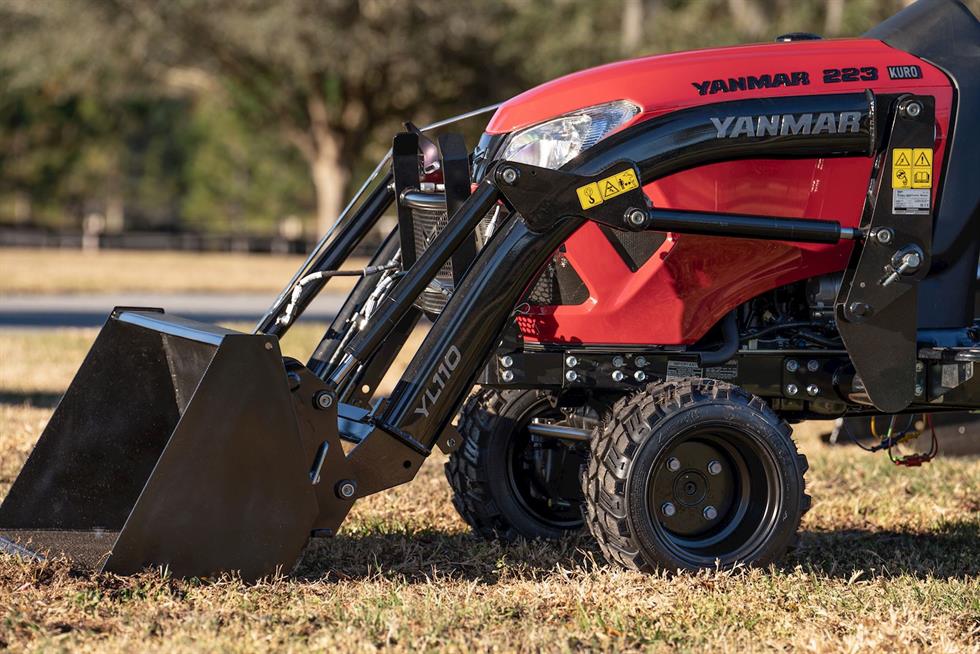

front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps40Reference
Battery CCA540Reference
Battery volts12Reference
Attachment overview
60" mid-mount mower deckReference
Front-end loaderReference
BackhoeReference
60" Mower deck
Typemid-mount Yanmar M60Reference
Type3-bladeReference
Cutting width152 cmReference
DriveshaftReference
Cut height2 to 10 cmReference
Yanmar B65 Backhoe
Backhoe typeYanmar B65 BackhoeReference
2-Foot flat digging depth199 cmReference
Reach from pivot259 cmReference
Loading height152 cmReference
Bucket Rotation180°Reference
Swing Arc150°Reference
Bucket force1270 kgReference
Dipperstick force721 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
