Tractor · 2014Unverified

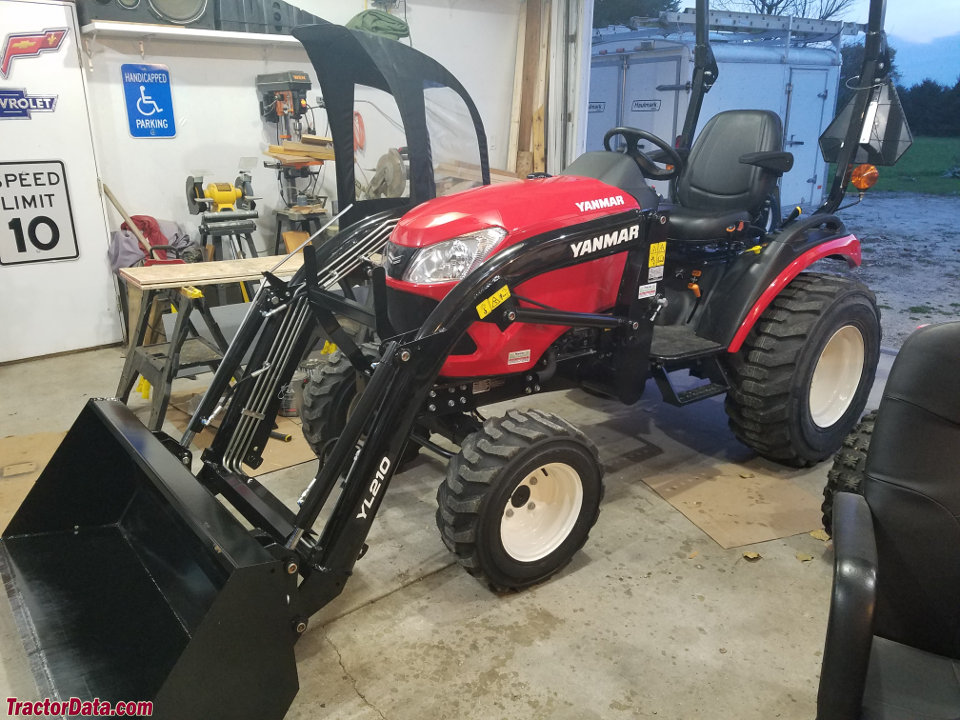

Yanmar 324

Name: Yanmar 324
Brand: Yanmar

Yanmar 324 — SA Series · 24 hp. Reference specifications; pending source verification.

The Yanmar 324 is a compact tractor that produces 24 hp, placing it in the lower power range of its class. Manufactured between 2014 and 2022, this model features a 3-cylinder diesel liquid-cooled engine. The tractor is equipped with four-wheel drive and a hydrostatic transmission. Its listed weight is 777 kg.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

24 hp

Max power

23.9 hp

Weight

777 kg

Catalogue coverage

Variants represented

Richest spec table

107 rows

Recorded power

24 hp

Recorded weight

777 kg

Transmissions

hydrostatic

Production years

2014-2022

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerYanmarReference

Sub-Compact Utility tractorReference

Four-wheel driveReference

Power steeringReference

Wet disc brakesReference

Two-post folding ROPS.Reference

Engine

Yanmar 1.3L 3-cyl dieselReference

Engine (gross)17.8 kWReference

Engine (net)16.2 kWReference

Yanmar 3TNV80FReference

dieselReference

3-cylinderReference

liquid-cooled inlineReference

Displacement1.3 LReference

Bore/Stroke80 x 84 mmReference

EmissionsTier 4Reference

Power (net)16.2 kWReference

Power (gross)17.8 kWReference

Rated RPM3200Reference

Torque62.0 NmReference

StarterelectricReference

Starter volts12Reference

Oil capacity3.4 LReference

Coolant capacity2.8 LReference

Fuel TypedieselReference

No of Cylinders1/2/1,900 cylinderReference

Rated engine speed10/4/1,908 RPMReference

Emissions complianceTier 4Reference

Engine torque at rated speed20.7 kgReference

Bore and stroke3.15x3.30 inchesReference

Cooling systemliquid-cooledReference

Transmission

hydrostaticReference

TypehydrostaticReference

Gearsinfinite forward and reverse (2-range)Reference

Oil capacity15.5 LReference

Transmission TypeHSTReference

forward and reverse optionsHydrostatic : infinite forward and reverse (2-range)Reference

Wheel Drive4WDReference

PTO & Hydraulics

PTO (claimed)13.5 kWReference

Typeopen centerReference

Pressure167.5 barReference

Pump flow16.3 lpmReference

Steering flow14.0 lpmReference

Rear TypeI (limited)Reference

Controlposition controlReference

Rear lift (at 24"/610mm)548 kgReference

Rear PTOindependentReference

ClutchhydraulicReference

Rear PTO Type540 (1.375)Reference

Engine RPM554@3200Reference

Mid PTOindependentReference

Clutch2057:3200Reference

Mid PTO Type2000 (1.0)Reference

Capacities

Fuel22.7 LReference

Front axle3.0 LReference

Capacity3/17/1,900 ciReference

Fuel tank22.7 LReference

Crankcase oil volume3.6 qtsReference

Dimensions

Wheelbase160 cmReference

Weight777 kgReference

Lawn/turf front23x8.50-12Reference

Lawn/turf rear33x12.5-16.5Reference

Industrial front23x8.50-12Reference

Industrial rear12-16.5Reference

Length268 cmReference

Width138 cmReference

Ground clearance21 cmReference

Front tread96 cmReference

Rear tread107 cmReference

Steering wheel140 cmReference

Yanmar 324 attachments

60" mid-mount mower deckReference

front-end loaderReference

Electrical

GroundnegativeReference

Battery CCA540Reference

Battery volts12Reference

Total cold cranking amps540 ampsReference

Attachment overview

60" mid-mount mower deckReference

Front-end loaderReference

60" Mower deck

Typemid-mount YanmarReference

Cutting width152 cmReference

Yanmar 324 Height

ROPS218 cmReference

ROPS178 cmReference

General

Make & ModelYanmarReference

SCV controlJoystickReference

Rollover protective structureTwo-post folding ROPS.Reference

Power

Max Power23.9 hpReference

Rated Power21.7 hpReference

PTO

PTO Power1/17/1,900 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM540 RPMReference

Mid PTO RPM2,000 RPMReference

Engine Speed on Rear PTO speed554@3,200Reference

Steering & brakes

BrakesWet disc brakesReference

Steering typePower steeringReference

Hydraulics

Hydraulics Typeopen centerReference

Maximum operating pressure2,429 psiReference

Steering & Implements flow3.7 gpm (4.3 gpm)Reference

Rear Hitch category (SAE designation)Category I (limited)Reference

Rear Hitch Sensing Typeposition controlReference

Dimensions & weight

Height Over ROPS3/25/1,900 inchesReference

Overall Length268.7 cmReference

Overall Width2/22/1,900 inchesReference

Overall weight777.9 kgReference

Wheels & tyres

Rear Wheel TypeLawn/turf rear: 33x12.5-16.5 | Industrial rear: 12-16.5Reference

Rear wheel tread range108 cmReference

Front Wheel TypeLawn/turf front\\t: 23x8.50-12 | Industrial front: 23x8.50-12Reference

Front Wheel tread range2/5/1,900 inchesReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
