Tractor · 2022Unverified

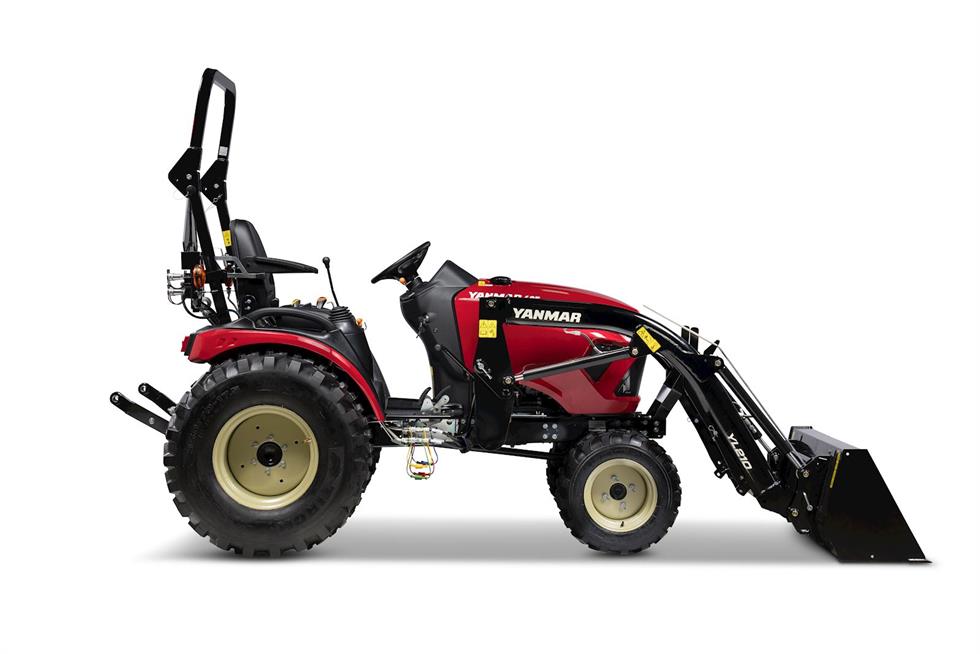

Yanmar 425
Yanmar 425 — SA Series · 24 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
24 hp
Weight
830 kg
Hover a source tag to verify
Overview
ManufacturerYanmarReference
Compact Utility tractorReference
Four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS. Four-post ROPS canopy available (425HDX).Reference
Engine
Yanmar 1.3L 3-cyl dieselReference
Fuel tank23.1 LReference
Engine (gross)17.8 kWReference
Engine (net)16.2 kWReference
Yanmar 3TNV80FReference
dieselReference
3-cylinderReference
liquid-cooled inlineReference
Displacement1.3 LReference
Bore/Stroke80 x 84 mmReference
Power (net)16.2 kWReference
Power (gross)17.8 kWReference
Rated RPM3200Reference
Torque62.0 NmReference
StarterelectricReference
Starter volts12Reference
Oil capacity3.4 LReference
Coolant capacity2.8 LReference
Transmission
hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and reverse (2-range)Reference
Oil capacity15.5 LReference
PTO & Hydraulics
PTO (claimed)13.5 kWReference
Typeopen centerReference
Pressure167.5 barReference
Pump flow16.3 lpmReference
Steering flow14.0 lpmReference
Rear TypeI (Limited)Reference
Controlposition controlReference
Rear lift (at 24"/610mm)548 kgReference
Rear PTOindependentReference
ClutchhydraulicReference
Rear PTO Type540 (1.375)Reference
Engine RPM554@3200Reference
Mid PTOindependentReference
Mid PTO Type16/32 15TReference
Engine RPM2057@3200Reference
Dimensions
Wheelbase160 cmReference
Weight830 kgReference
Weight164 kgReference
Weight307 kgReference
Lawn/turf front23x8.50-12Reference
Lawn/turf rear36x14.00-15Reference
Industrial front23x8.50-12Reference
Industrial rear14-17.5Reference
Length268 cmReference
Width137 cmReference
Height (steering wheel)144 cmReference
Height (ROPS)221 cmReference
Height (Folded ROPS)182 cmReference
Ground clearance25 cmReference
Front tread96 cmReference
Rear tread102 cmReference
Yanmar 425 attachments
60" mid-mount mower deckReference
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps40Reference
Battery CCA540Reference
Battery volts12Reference
Attachment overview
60" mid-mount mower deckReference
Front-end loaderReference
BackhoeReference
60" Mower deck
Typemid-mount Yanmar M60Reference
Type3-bladeReference
Cutting width152 cmReference
DriveshaftReference
Cut height2 to 10 cmReference
Yanmar B65 Backhoe
Backhoe typeYanmar B65 BackhoeReference
2-Foot flat digging depth193 cmReference
Reach from pivot259 cmReference
Loading height158 cmReference
Bucket Rotation180°Reference
Swing Arc150°Reference
Bucket force1270 kgReference
Dipperstick force721 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
