Tractor · 2004Unverified

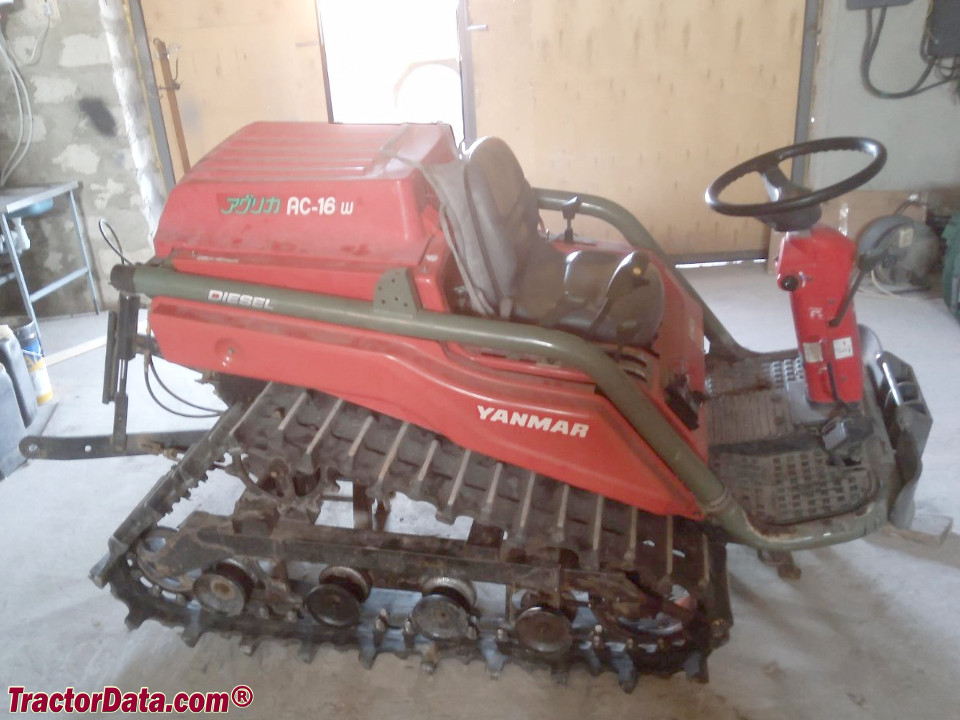

Yanmar AC-16

Name: Yanmar AC-16
Brand: Yanmar

Yanmar AC-16 — AC Series · 16 hp. Reference specifications; pending source verification.

The Yanmar AC-16 is a tractor with a rated power output of 16 hp, positioned at the lower end of its class. Manufactured between 2004 and 2007, this model features a 3-cylinder diesel liquid-cooled engine, paired with a tracked undercarriage and hydrostatic transmission. The listed operating weight of the Yanmar AC-16 is 805 kg, making it suitable for operations of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

16 hp

Weight

805 kg

Catalogue coverage

Variants represented

Richest spec table

26 rows

Recorded power

16 hp

Recorded weight

805 kg

Transmissions

hydrostatic

Production years

2004-2007

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerYanmarReference

Agricultural Crawler tractorReference

DrivecrawlerReference

Two-post ROPS.Reference

Engine

Yanmar 0.8L 3-cyl dieselReference

Fuel tank20.1 LReference

Engine11.6 kWReference

Yanmar 3TNE68Reference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement0.8 LReference

Bore/Stroke68 x 72 mmReference

Power11.6 kWReference

StarterelectricReference

Starter volts12Reference

Transmission

hydrostaticReference

TypehydrostaticReference

Dimensions

Weight805 kgReference

TracksReference

Length233 cmReference

Width119 cmReference

Height182 cmReference

Ground clearance32 cmReference

Electrical

GroundnegativeReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
