Tractor · 2002Unverified

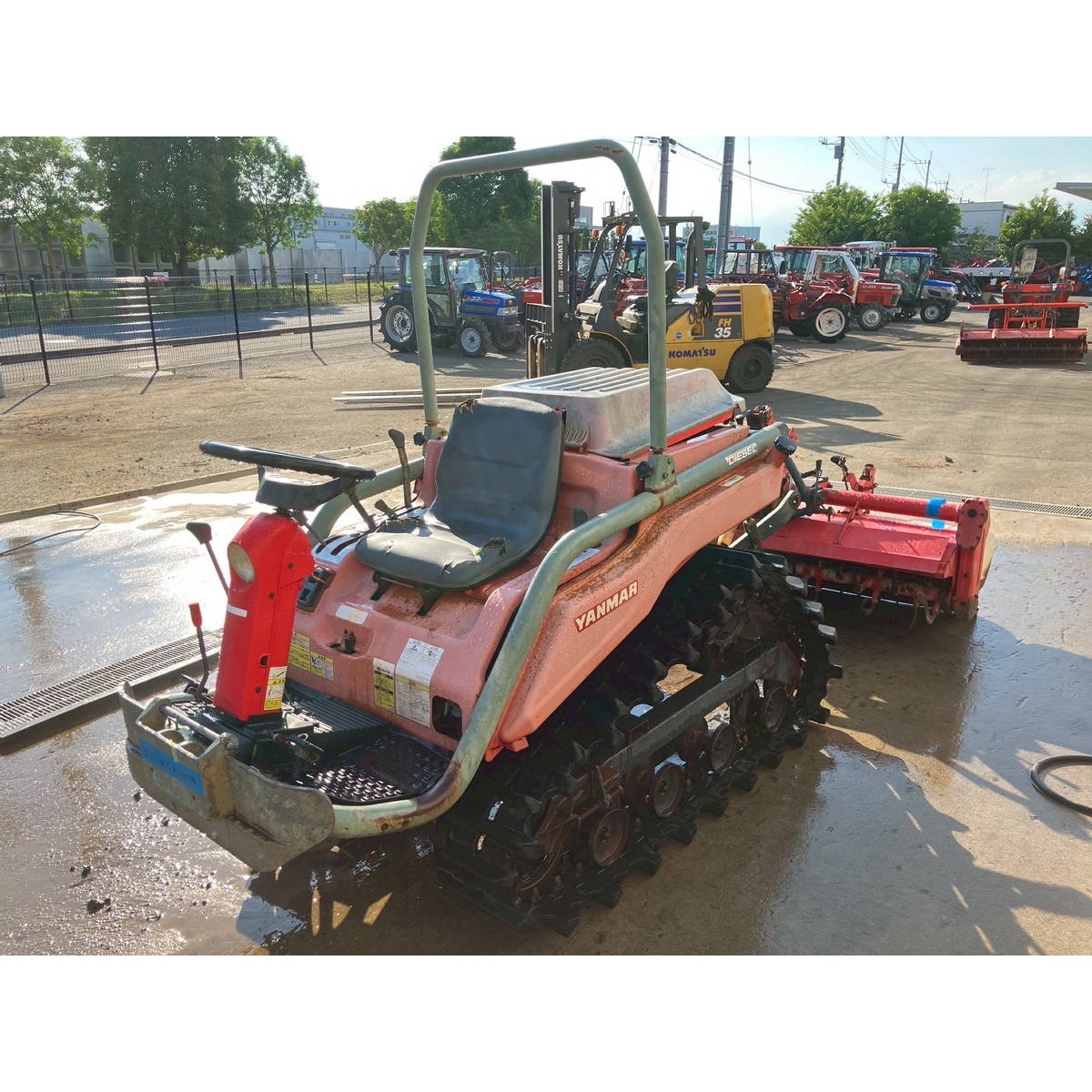

Yanmar AC-18
Yanmar AC-18 — AC Series · 18 hp. Reference specifications; pending source verification.
The Yanmar AC-18 is a tractor model with a rated power of 18 hp, categorising it as a lighter model within its class. Manufactured from 2002 to 2007, this model features a 3-cylinder diesel liquid-cooled engine paired with a tracked undercarriage and a hydrostatic transmission. The tractor has an operating weight of 645 kg, and it is suitable for operations covering up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
18 hp
Weight
645 kg
Catalogue coverage
Variants represented
2
Richest spec table
28 rows
Recorded power
18 hp
Recorded weight
645 kg
Transmissions
hydrostatic
Production years
2002-2007
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerYanmarReference
Agricultural Crawler tractorReference
DrivecrawlerReference
Two-post ROPS.Reference
Engine
Yanmar 1.0L 3-cyl dieselReference
Fuel tank18.2 LReference
Engine13.4 kWReference
Yanmar 3TNE74Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.0 LReference
Bore/Stroke74 x 78 mmReference
Power13.4 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and reverse (2-range)Reference
Dimensions
Weight645 kgReference
TracksReference
Length220 cmReference
Width119 cmReference
Height176 cmReference
Ground clearance34 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
