Tractor · 2004Unverified

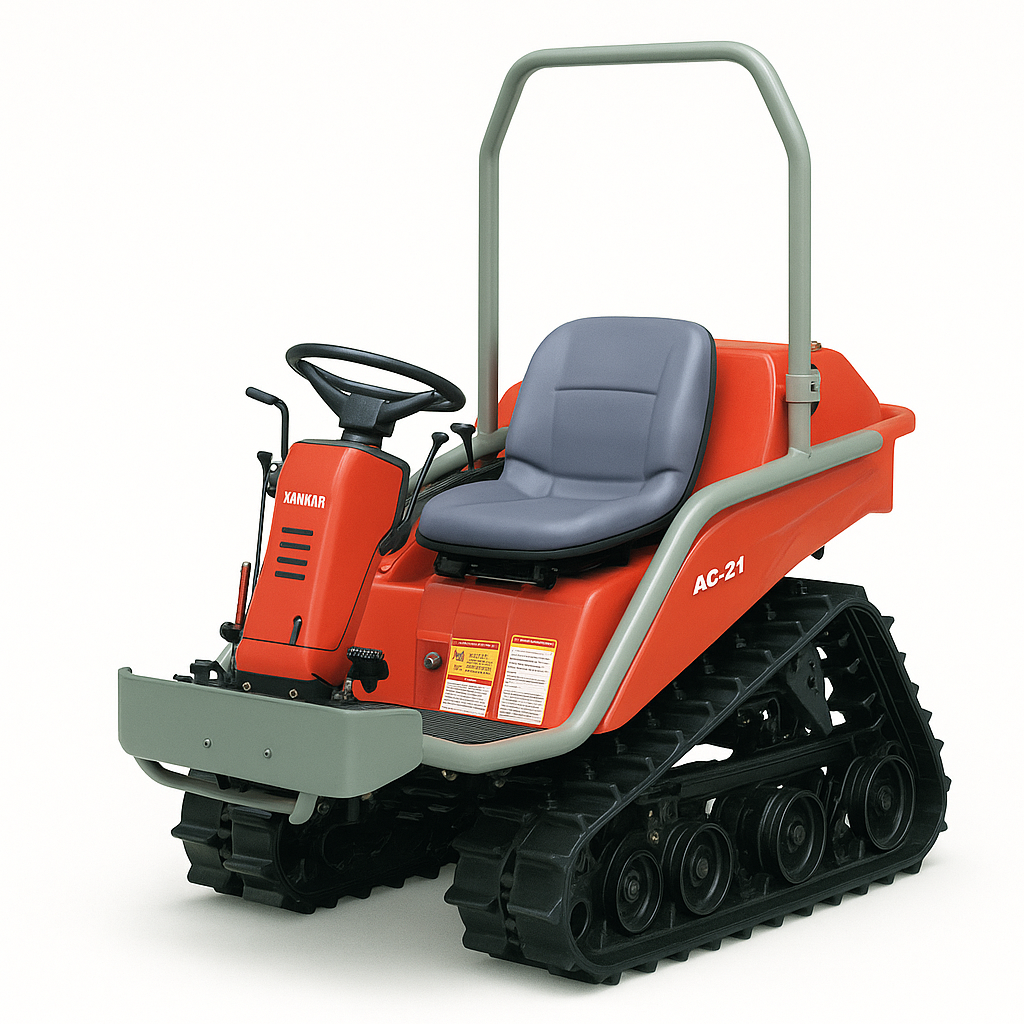

Yanmar AC-21
Yanmar AC-21 — AC Series · 21 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
21 hp
Weight
830 kg
Hover a source tag to verify
Overview
ManufacturerYanmarReference
Agricultural Crawler tractorReference
DrivecrawlerReference
Two-post ROPS. Cab optional.Reference
Engine
Yanmar 1.0L 3-cyl dieselReference
Fuel tank20.1 LReference
Engine15.3 kWReference
Yanmar 3TNE74Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.0 LReference
Bore/Stroke74 x 78 mmReference
Power15.3 kWReference
StarterelectricReference
Starter volts12Reference
Transmission
hydrostaticReference
TypehydrostaticReference
Dimensions
Weight830 kgReference
TracksReference
Length233 cmReference
Width125 cmReference
Height182 cmReference
Ground clearance32 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
