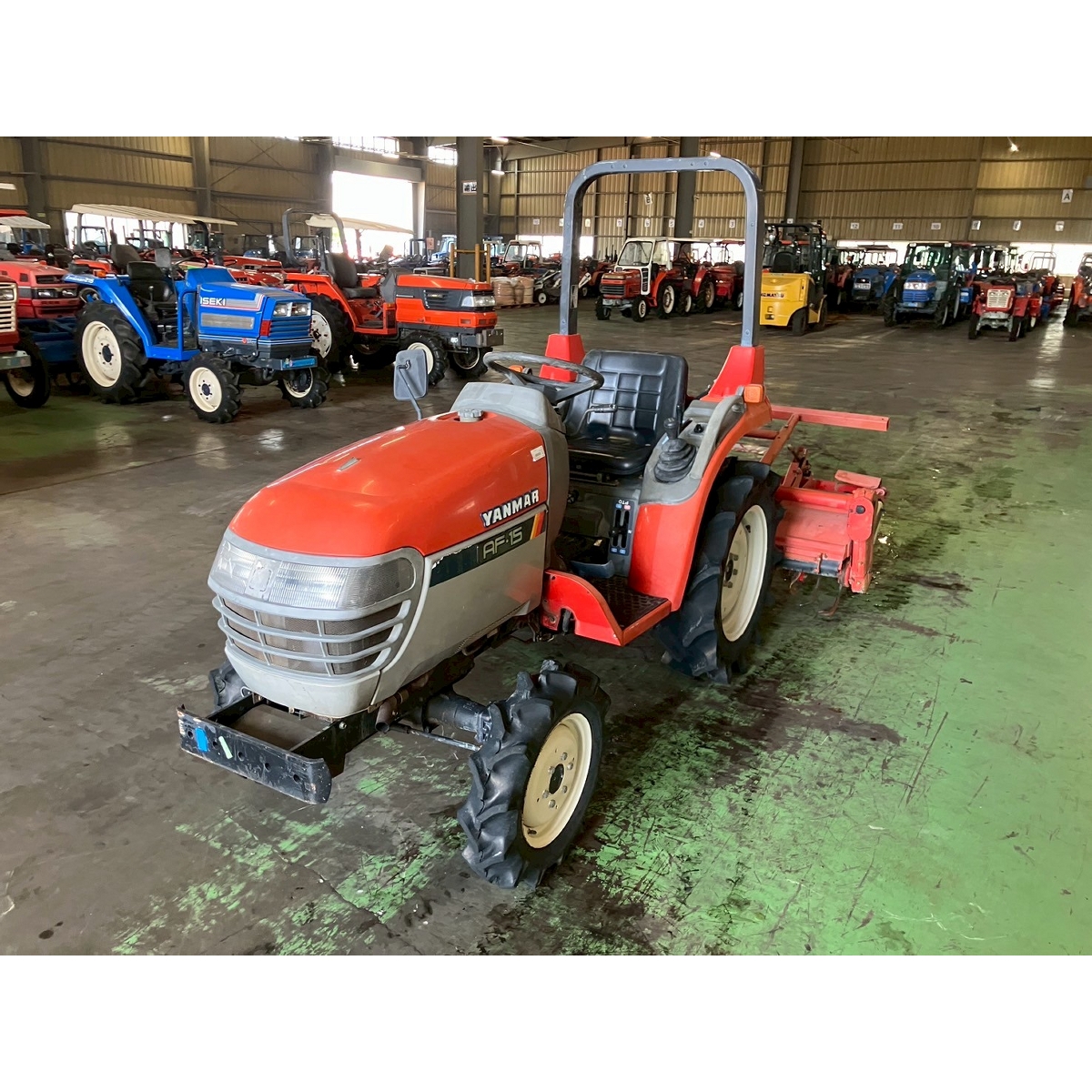

Yanmar AF-15
Yanmar AF-15 — AF Series · 15 hp. Reference specifications; pending source verification.
The Yanmar AF-15 is a tractor with a rated power of 15 hp, positioned at the lower end of its class. It features a 3-cylinder diesel liquid-cooled engine and four-wheel drive, paired with an 8-speed gearbox. This model was manufactured between 1992 and 1996 and has a listed operating weight of 719 kg. It is suitable for operations covering up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
15 hp
Weight
719 kg
Catalogue coverage
Variants represented
2
Richest spec table
41 rows
Recorded power
15 hp
Recorded weight
719 kg
Transmissions
8-speed
Production years
1992-1996
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerYanmarReference
Compact Utility tractorReference
Four-wheel driveReference
Two-post ROPS.Reference
Engine
Yanmar 0.9L 3-cyl dieselReference
Fuel tank20.1 LReference
Engine11.0 kWReference
Yanmar 3TNA72Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement0.9 LReference
Bore/Stroke72 x 72 mmReference
Power11.0 kWReference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Transmission
8-speedReference
12-speed creeperReference
Gears8 forward and reverseReference
TypecreeperReference
Gears12 forward and reverseReference
PTO & Hydraulics
Rear PTO Type540 (1.375)Reference
Engine RPM558@2500Reference
Engine RPM805@2500Reference
Engine RPM1228@2500Reference
Engine RPM-745@2500Reference
Dimensions
Wheelbase135 cmReference
Weight719 kgReference
Front tire5.00-12Reference
Rear tire8-18Reference
Standard tires (ag)Front: 5.00-12. Rear: 8-18Reference
Length262 cmReference
Width104 cmReference
Height183 cmReference
Ground clearance28 cmReference
Front tread82 cmReference
Rear tread81 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Battery AH45Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
