Tractor · 1997Unverified

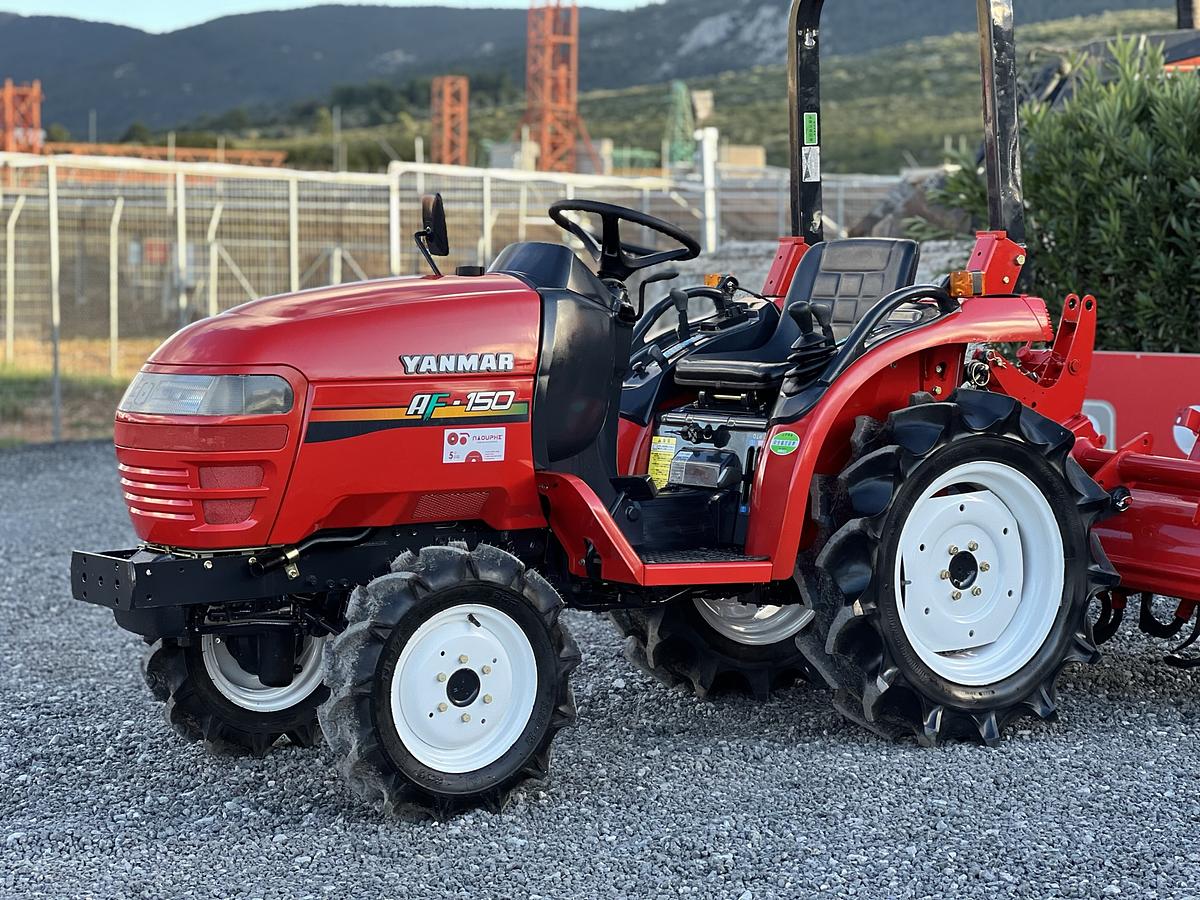

Yanmar AF-150
Yanmar AF-150 — AF100 Series · 15 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
15 hp
Weight
719 kg
Hover a source tag to verify
Overview
ManufacturerYanmarReference
Compact Utility tractorReference
Four-wheel driveReference
Two-post ROPS.Reference
Engine
Yanmar 1.0L 3-cyl dieselReference
Fuel tank20.1 LReference
Engine11.0 kWReference
Yanmar 3TNE72Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.0 LReference
Bore/Stroke72 x 78 mmReference
Power11.0 kWReference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Transmission
8-speed shuttleReference
TypeshuttleReference
Gears8 forward and reverseReference
PTO & Hydraulics
Rear PTO Type540 (1.375)Reference
Engine RPM558@2500Reference
Engine RPM805@2500Reference
Engine RPM1228@2500Reference
Engine RPM-745@2500Reference
Dimensions
Wheelbase135 cmReference
Weight719 kgReference
Front tire5.00-12Reference
Rear tire8-18Reference
Standard tires (ag)Front: 5.00-12. Rear: 8-18Reference
Length262 cmReference
Width109 cmReference
Height186 cmReference
Ground clearance28 cmReference
Front tread83 cmReference
Rear tread81 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
