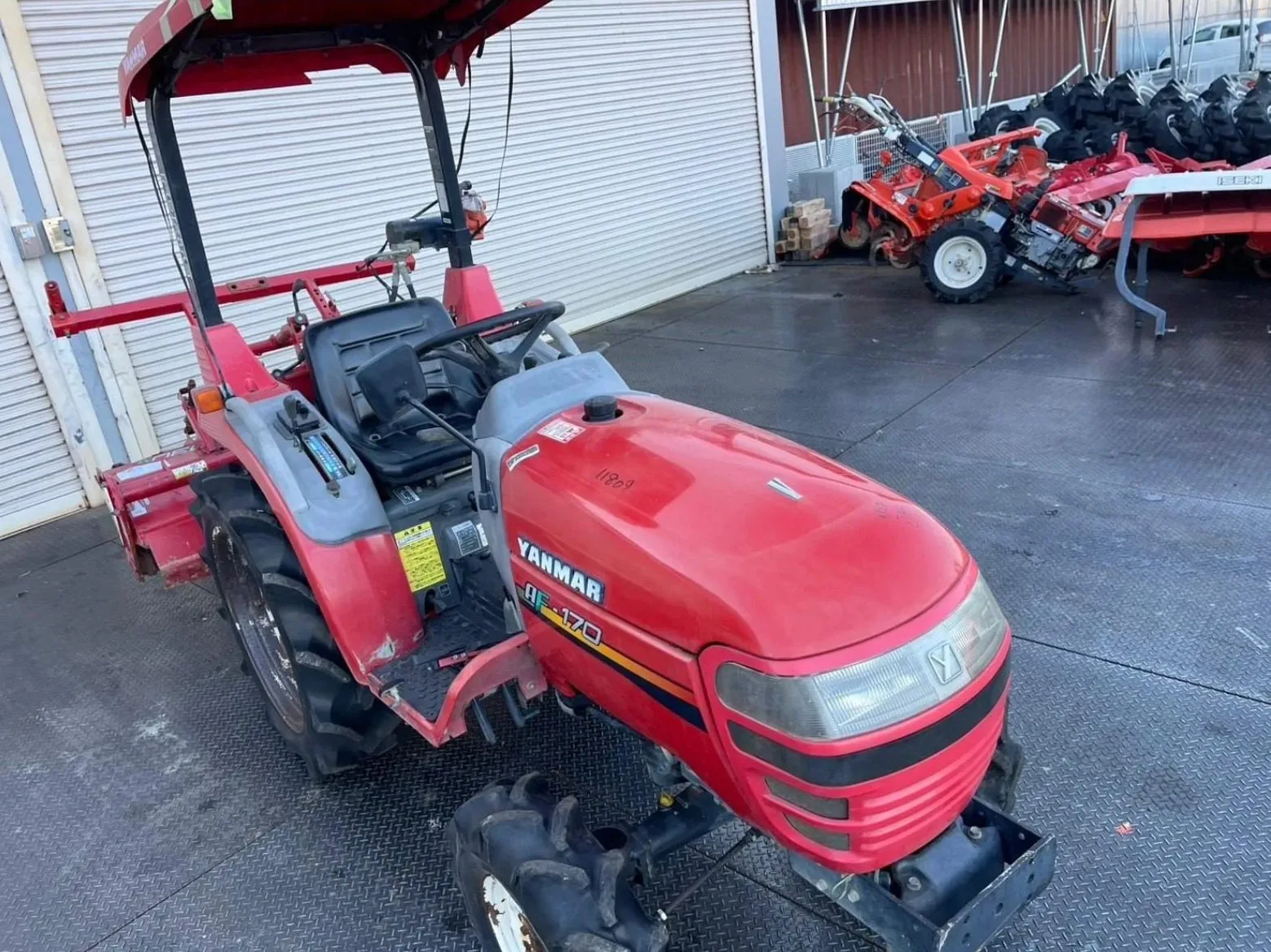

The Yanmar AF-170 is a tractor model, rated at approximately 17 hp, which positions it at the lower end of its class in terms of power output. It was manufactured from 1997 to 2000 and features a 3-cylinder diesel liquid-cooled engine, paired with four-wheel drive and an 8-speed gearbox. The AF-170 has an operating weight of 739 kg, and it is suitable for operations covering up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
17 hp
Weight
739 kg
Catalogue coverage
Variants represented
2
Richest spec table
38 rows
Recorded power
17 hp
Recorded weight
739 kg
Transmissions
8-speed shuttle
Production years
1997-2000
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerYanmarReference
Compact Utility tractorReference
Four-wheel driveReference
Two-post ROPS.Reference
Engine
Yanmar 1.0L 3-cyl dieselReference
Fuel tank20.1 LReference
Engine12.5 kWReference
Yanmar 3TNE74Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.0 LReference
Bore/Stroke74 x 78 mmReference
Power12.5 kWReference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Transmission
8-speed shuttleReference
TypeshuttleReference
Gears8 forward and reverseReference
PTO & Hydraulics
Rear PTO Type540 (1.375)Reference
Engine RPM558@2500Reference
Engine RPM805@2500Reference
Engine RPM1228@2500Reference
Engine RPM-745@2500Reference
Dimensions
Wheelbase135 cmReference
Weight739 kgReference
Front tire6-12Reference
Rear tire8.3-20Reference
Standard tires (ag)Front: 6-12. Rear: 8.3-20Reference
Length262 cmReference
Width106 cmReference
Height188 cmReference
Ground clearance29 cmReference
Front tread86 cmReference
Rear tread83 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
