Tractor · 1997Unverified

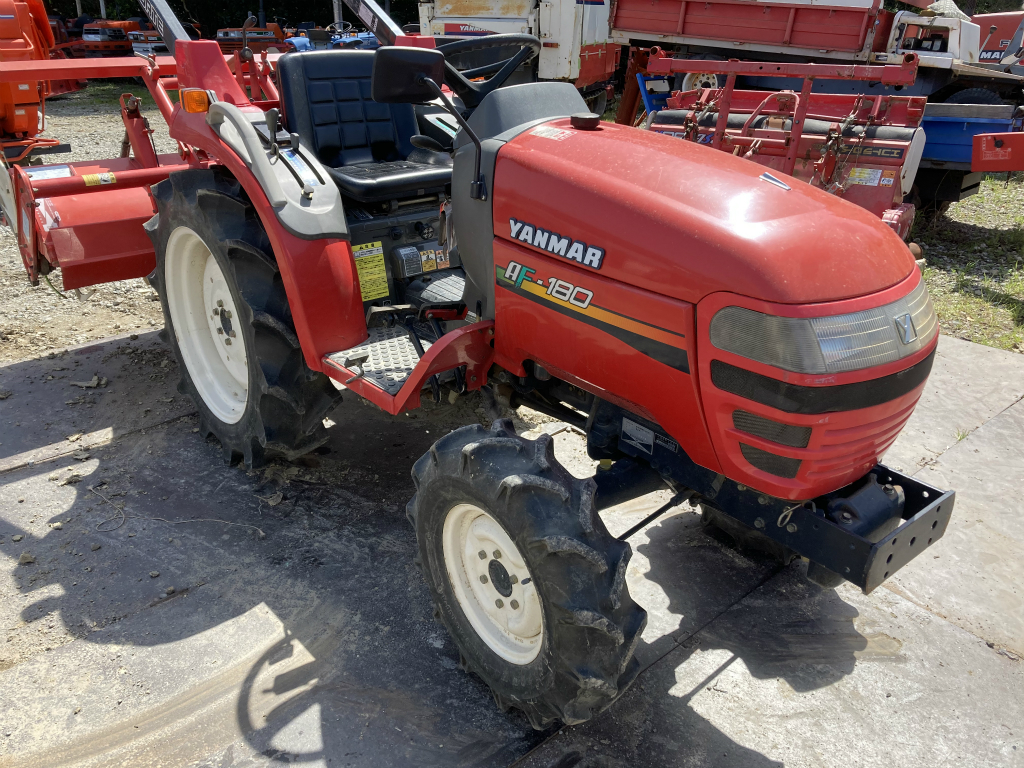

Yanmar AF-180
Yanmar AF-180 — AF100 Series · 18 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
18 hp
Weight
1653 to 1676 pounds
Hover a source tag to verify
Overview
ManufacturerYanmarReference
Compact Utility tractorReference
Four-wheel driveReference
Two-post ROPS.Reference
Variants
AF-180XhydrostticReference
Engine
Yanmar 1.0L 3-cyl dieselReference
Fuel tank20.1 LReference
Engine13.3 kWReference
Yanmar 3TNE74Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.0 LReference
Bore/Stroke74 x 78 mmReference
Power13.3 kWReference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Transmission
8-speed shuttleReference
hydrostaticReference
Gear Weight749 kgReference
TypeshuttleReference
Gears8 forward and reverseReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
PTO & Hydraulics
Rear PTO Type540 (1.375)Reference
Engine RPM558@2500Reference
Engine RPM805@2500Reference
Engine RPM1228@2500Reference
Engine RPM-745@2500Reference
Dimensions
Wheelbase135 cmReference
Weight1653 to 1676 poundsReference
Front tire6.00-12Reference
Rear tire8.3-22Reference
Standard tires (ag)Front: 6.00-12. Rear: 8.3-22Reference
Length262 cmReference
Width109 cmReference
Height192 cmReference
Hydro Weight760 kgReference
Ground clearance33 cmReference
Front tread86 cmReference
Rear tread86 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
