Tractor · 1992Unverified

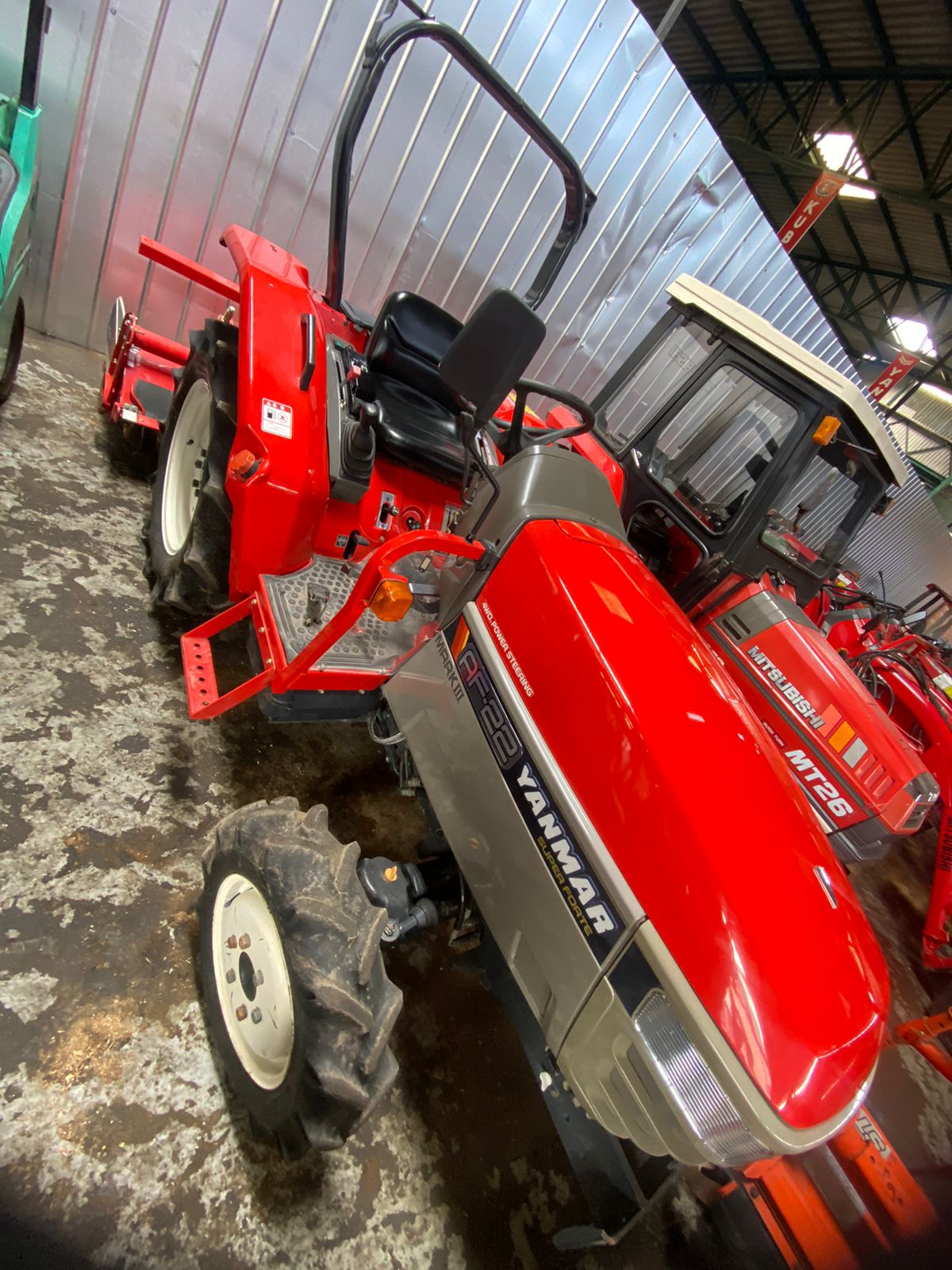

Yanmar AF-22
Yanmar AF-22 — AF Series · 22 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
22 hp
Weight
1164 kg
Hover a source tag to verify
Overview
ManufacturerYanmarReference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Two-post ROPS. Cab optional.Reference
Engine
Yanmar 1.4L 3-cyl dieselReference
Fuel tank37.9 LReference
Engine16.2 kWReference
Yanmar 3TNS82Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.4 LReference
Bore/Stroke82 x 90 mmReference
Power16.2 kWReference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speed shuttleReference
16-speed four-speed power shiftReference
TypeshuttleReference
Gears16 forward and reverseReference
Four gears in three ranges, plus creeper range with mechincal shuttle.Reference
Typefour-speed power shiftReference
Four power shift gears in three ranges, plus creeper range with power shuttleReference
PTO & Hydraulics
Rear TypeJIS1Reference
Rear PTO Type540 (1.375)Reference
Engine RPM551@2500Reference
Engine RPM756@2500Reference
Engine RPM963@2500Reference
Engine RPM1293@2500Reference
Engine RPM-694@2500Reference
Dimensions
Wheelbase153 cmReference
Weight1164 kgReference
Front tire6-14Reference
Rear tire9.5-22Reference
Standard tires (ag)Front: 6-14. Rear: 9.5-22Reference
Length287 cmReference
Width123 cmReference
Height194 cmReference
Ground clearance31 cmReference
Front tread98 cmReference
Rear tread97/108 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps35Reference
Battery volts12Reference
Battery AH70Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
