Tractor · 1992Unverified

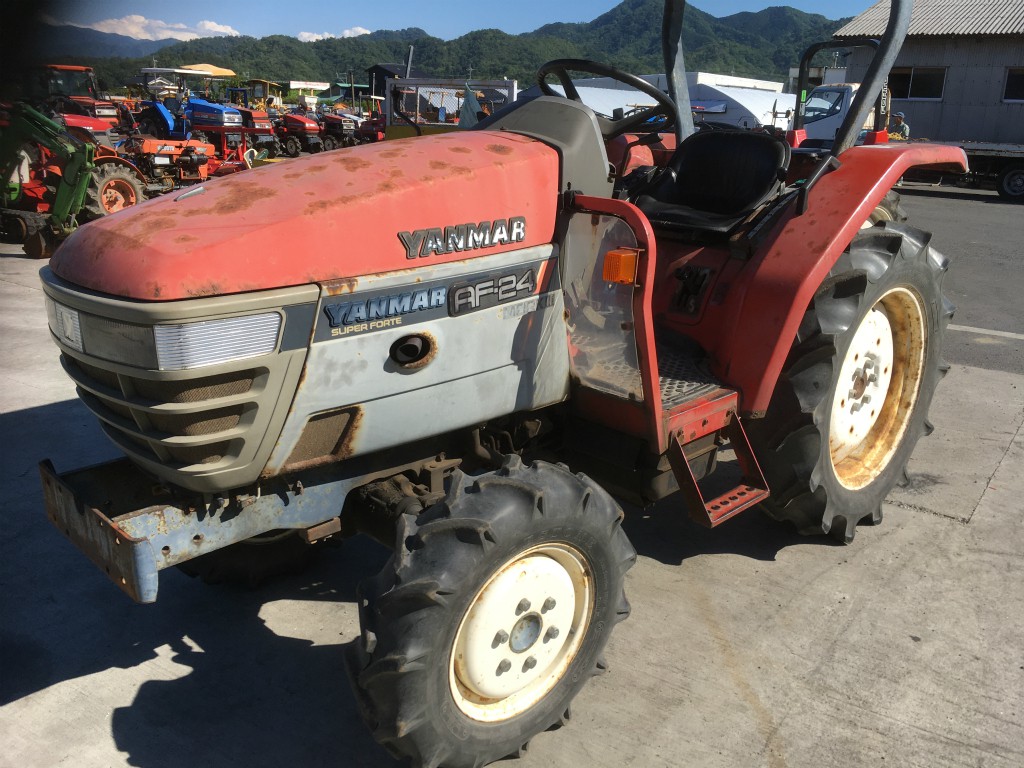

Yanmar AF-24
Yanmar AF-24 — AF Series · 24 hp. Reference specifications; pending source verification.
The Yanmar AF-24 is a tractor with an approximate engine power output of 24 hp, positioning it at the lower end of its class in terms of power. It was manufactured from 1992 to 1997. The tractor features a 3-cylinder diesel liquid-cooled engine paired with four-wheel drive and a powershift transmission. Its operating weight is 1179 kg, with an indicated capacity for working on areas of up to 200 ac.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
24 hp
Weight
1179 kg
Catalogue coverage
Variants represented
2
Richest spec table
48 rows
Recorded power
24 hp
Recorded weight
1179 kg
Transmissions
16-speed shuttle
Production years
1992-1997
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerYanmarReference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Two-post ROPS. Cab optional.Reference
Engine
Yanmar 1.4L 3-cyl dieselReference
Fuel tank37.9 LReference
Engine17.7 kWReference
Yanmar 3TNS82Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.4 LReference
Bore/Stroke82 x 90 mmReference
Power17.7 kWReference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speed shuttleReference
16-speed four-speed power shiftReference
TypeshuttleReference
Gears16 forward and reverseReference
Four gears in three ranges, plus creeper range with mechincal shuttle.Reference
Typefour-speed power shiftReference
Four power shift gears in three ranges, plus creeper range with power shuttleReference
PTO & Hydraulics
Rear TypeJIS1Reference
Rear PTO Type540 (1.375)Reference
Engine RPM551@2500Reference
Engine RPM756@2500Reference
Engine RPM963@2500Reference
Engine RPM1293@2500Reference
Engine RPM-694@2500Reference
Dimensions
Wheelbase153 cmReference
Weight1179 kgReference
Front tire7-14Reference
Rear tire9.5-24Reference
Standard tires (ag)Front: 7-14. Rear: 9.5-24Reference
Length287 cmReference
Width123 cmReference
Height196 cmReference
Ground clearance33 cmReference
Front tread98 cmReference
Rear tread97/108 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps35Reference
Battery volts12Reference
Battery AH70Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
