Tractor · 1992Unverified

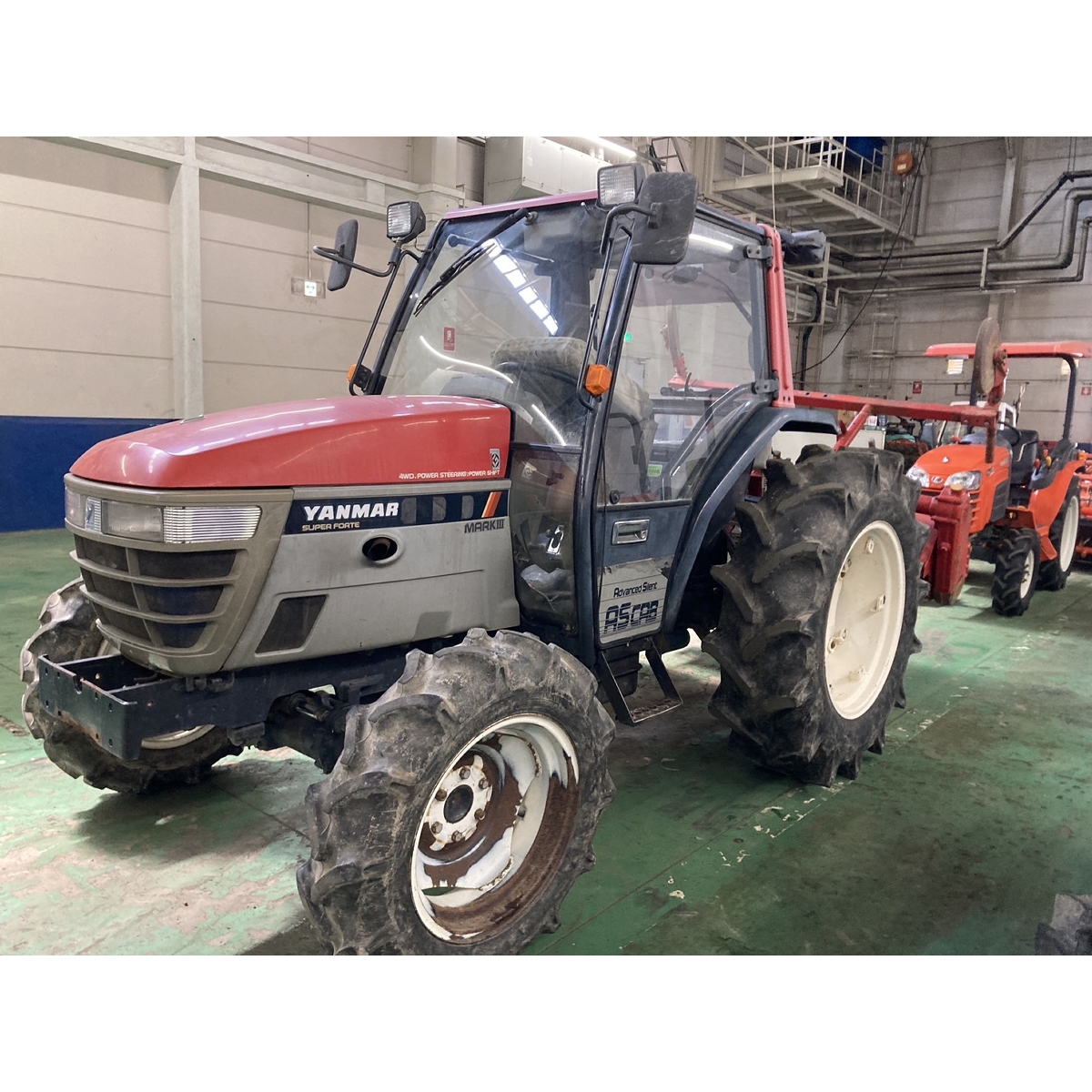

Yanmar AF-33
Yanmar AF-33 — AF Series · 33 hp. Reference specifications; pending source verification.
The Yanmar AF-33 is a tractor rated at 33 hp — making it one of the more compact options in its class. It was manufactured from 1992 to 1997. Under the hood is a 3-cylinder diesel liquid-cooled engine, driving through four-wheel drive with a powershift transmission. Listed weight is 1430 kg, and it is aimed at jobs of around up to 200 ac. The available specification table below shows both UK and US units.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
33 hp
Weight
1430 kg
Catalogue coverage
Variants represented
2
Richest spec table
48 rows
Recorded power
33 hp
Recorded weight
1430 kg
Transmissions
16-speed shuttle
Production years
1992-1997
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerYanmarReference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Two-post ROPS. Cab optional.Reference
Engine
Yanmar 1.5L 3-cyl dieselReference
Fuel tank37.9 LReference
Engine24.3 kWReference
Yanmar 3TNS84Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Bore/Stroke84 x 90 mmReference
Power24.3 kWReference
Rated RPM2800Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speed shuttleReference
16-speed four-speed power shiftReference
TypeshuttleReference
Gears16 forward and reverseReference
Four gears in three ranges, plus creeper range with mechincal shuttle.Reference
Typefour-speed power shiftReference
Four power shift gears in three ranges, plus creeper range with power shuttleReference
PTO & Hydraulics
Rear TypeJIS1Reference
Rear PTO Type540 (1.375)Reference
Engine RPM595@2800Reference
Engine RPM816@2800Reference
Engine RPM1039@2800Reference
Engine RPM1352@2800Reference
Engine RPM-749@2800Reference
Dimensions
Wheelbase180 cmReference
Weight1430 kgReference
Front tire8-18Reference
Rear tire12.4-28Reference
Standard tires (ag)Front: 8-18. Rear: 12.4-28Reference
Length318 cmReference
Width147 cmReference
Height196 cmReference
Ground clearance34 cmReference
Front tread121 cmReference
Rear tread115 to 150 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps35Reference
Battery volts12Reference
Battery AH70Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
