Tractor · 2002Unverified

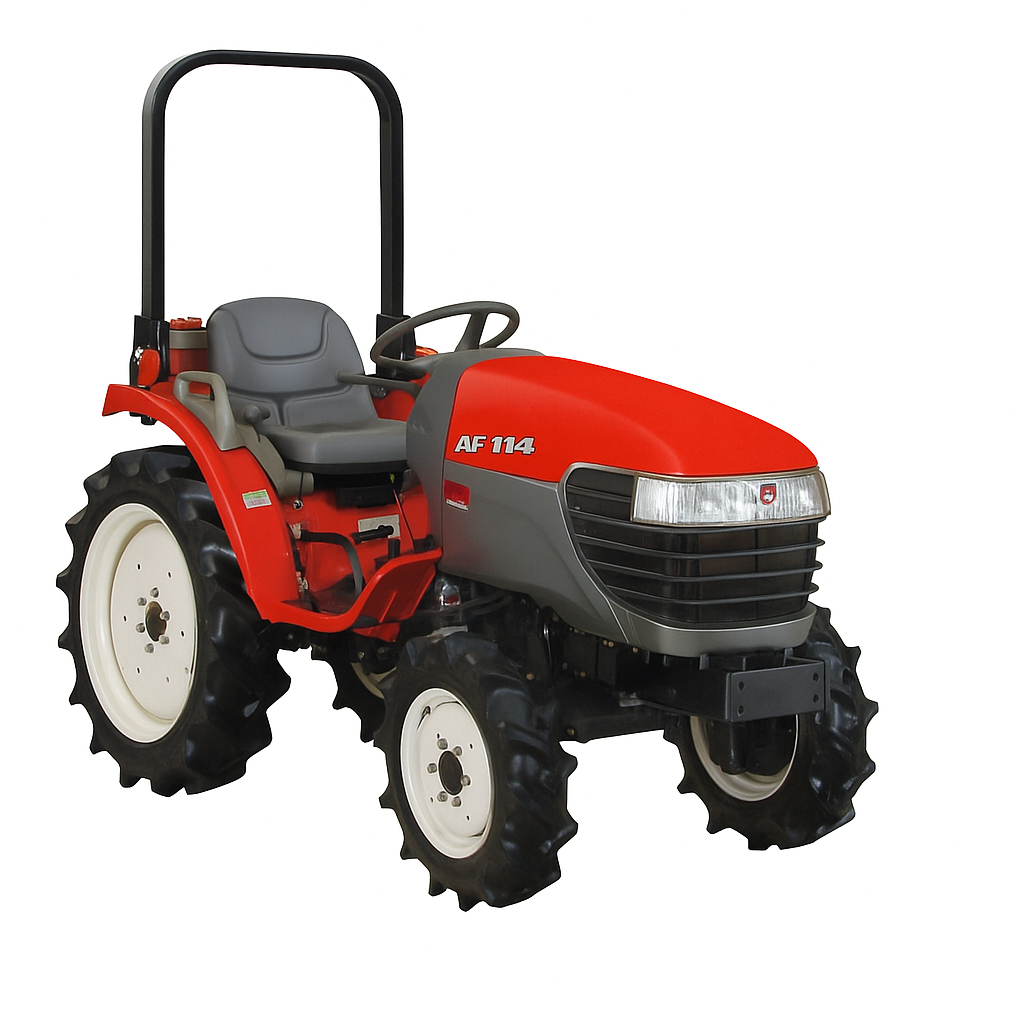

Yanmar AF114
Yanmar AF114 — AF100 Series · 14 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
14 hp
Weight
650 kg
Hover a source tag to verify
Overview
ManufacturerYanmarReference
Four-wheel driveReference
SteeringmanualReference
SteeringpowerReference
Wet disc brakesReference
Two-post ROPS.Reference
Engine
Yanmar 1.0L 3-cyl dieselReference
Fuel tank20.1 LReference
Engine10.4 kWReference
Yanmar 3TNE72Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.0 LReference
Power10.4 kWReference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Transmission
8-speedReference
Gears8 forward and reverseReference
Clutchdry discReference
PTO & Hydraulics
Clutchdry discReference
Rear PTO Type546/781/1176 (1.375)Reference
Dimensions
Wheelbase137 cmReference
Weight650 kgReference
Front tire5.00-12Reference
Rear tire8.00-16Reference
Standard tires (ag)Front: 5.00-12. Rear: 8.00-16Reference
Length262 cmReference
Width103 cmReference
Height183 cmReference
Ground clearance31 cmReference
Front tread83 cmReference
Rear tread81 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Battery AH45Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
