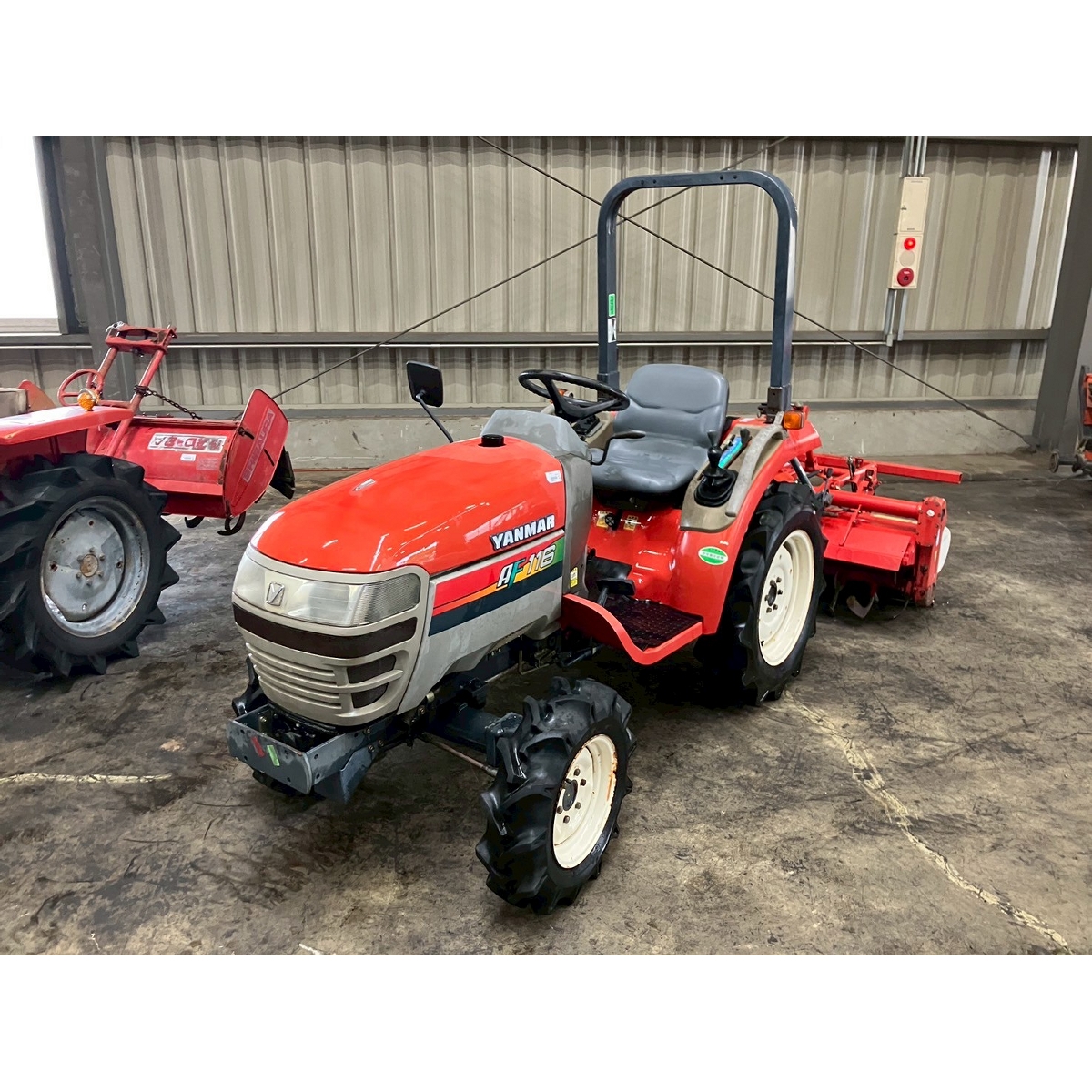

The Yanmar AF116 is a compact tractor with a rated output of 16 hp, produced from 2002 to 2005. It features a 3-cylinder diesel liquid-cooled engine, which powers a four-wheel drive system via an 8-speed gearbox. The tractor's listed weight is 659 kg, and it is designed for use on areas up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
16 hp
Weight
659 kg
Catalogue coverage
Variants represented
2
Richest spec table
37 rows
Recorded power
16 hp
Recorded weight
659 kg
Transmissions
8-speed
Production years
2002-2005
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerYanmarReference
Four-wheel driveReference
SteeringmanualReference
SteeringpowerReference
Wet disc brakesReference
Two-post ROPS.Reference
Engine
Yanmar 1.0L 3-cyl dieselReference
Fuel tank20.1 LReference
Engine11.9 kWReference
Yanmar 3TNE72Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.0 LReference
Power11.9 kWReference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Transmission
8-speedReference
Gears8 forward and reverseReference
Clutchdry discReference
PTO & Hydraulics
Clutchdry discReference
Rear PTO Type546/781/1176 (1.375)Reference
Dimensions
Wheelbase137 cmReference
Weight659 kgReference
Front tire6.00-12Reference
Rear tire8.00-18Reference
Standard tires (ag)Front: 6.00-12. Rear: 8.00-18Reference
Length262 cmReference
Width103 cmReference
Height185 cmReference
Ground clearance32 cmReference
Front tread86 cmReference
Rear tread81 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Battery AH45Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
