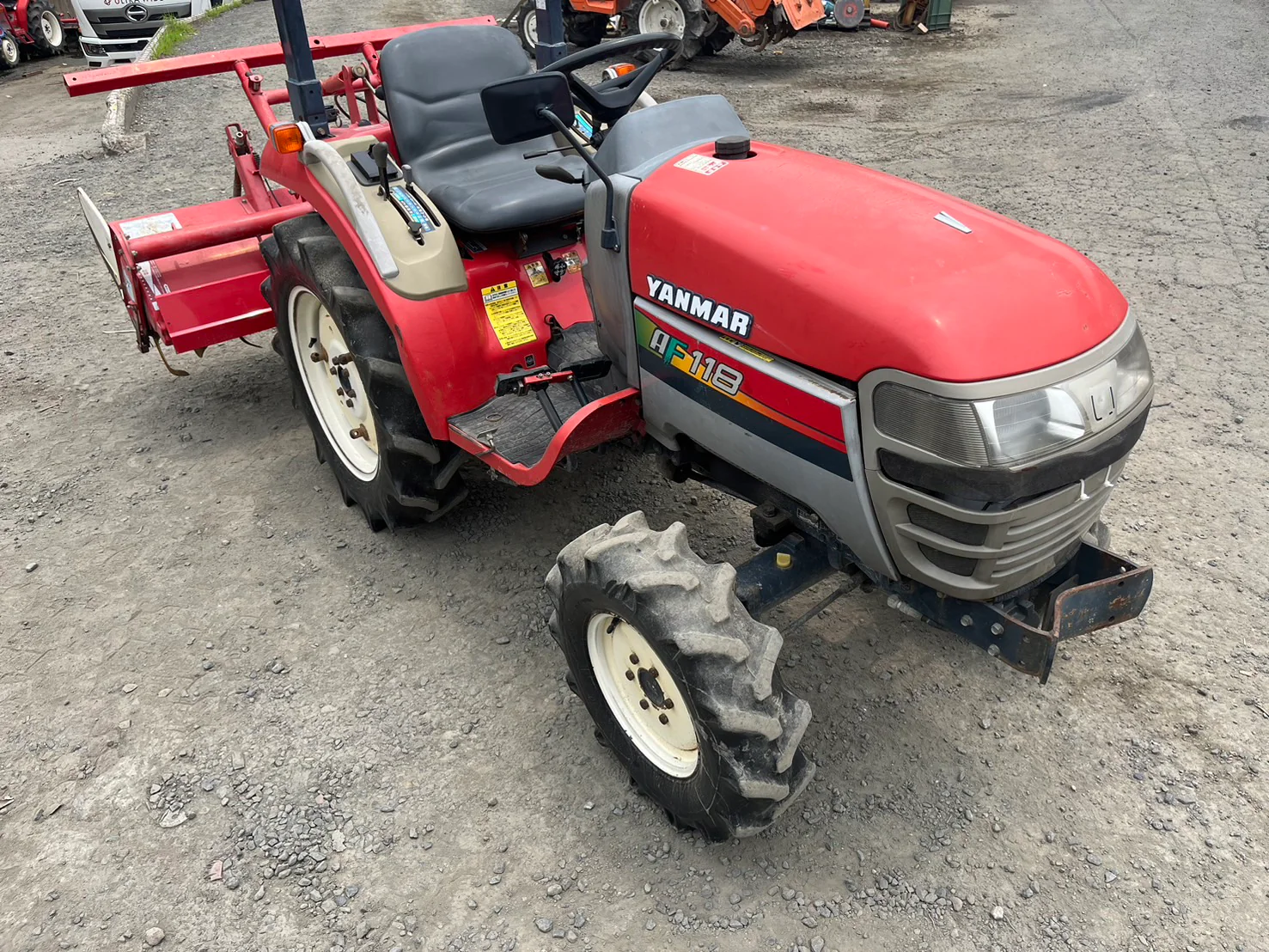

The Yanmar AF118 is a tractor with an 18 hp rated power, categorising it at the lighter end of its class. The AF118 was manufactured between 2002 and 2005. It features a 3-cylinder diesel liquid-cooled engine, paired with four-wheel drive and an 8-speed gearbox. It has an operating weight of 664 kg, suitable for operations covering up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
18 hp
Weight
664 kg
Catalogue coverage
Variants represented
2
Richest spec table
36 rows
Recorded power
18 hp
Recorded weight
664 kg
Transmissions
8-speed
Production years
2002-2005
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerYanmarReference
Four-wheel driveReference
SteeringmanualReference
SteeringpowerReference
Wet disc brakesReference
Two-post ROPS.Reference
Engine
Yanmar 1.0L 3-cyl dieselReference
Fuel tank20.1 LReference
Engine13.4 kWReference
Yanmar 3TNE74Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.0 LReference
Power13.4 kWReference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Transmission
8-speedReference
Gears8 forward and reverseReference
Clutchdry discReference
PTO & Hydraulics
Clutchdry discReference
Rear PTO Type546/781/1176 (1.375)Reference
Dimensions
Wheelbase137 cmReference
Weight664 kgReference
Front tire6.00-12Reference
Rear tire8.30-20Reference
Standard tires (ag)Front: 6.00-12. Rear: 8.30-20Reference
Length262 cmReference
Width103 cmReference
Height188 cmReference
Front tread86 cmReference
Rear tread83 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Battery AH45Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
