Tractor · 2002Unverified

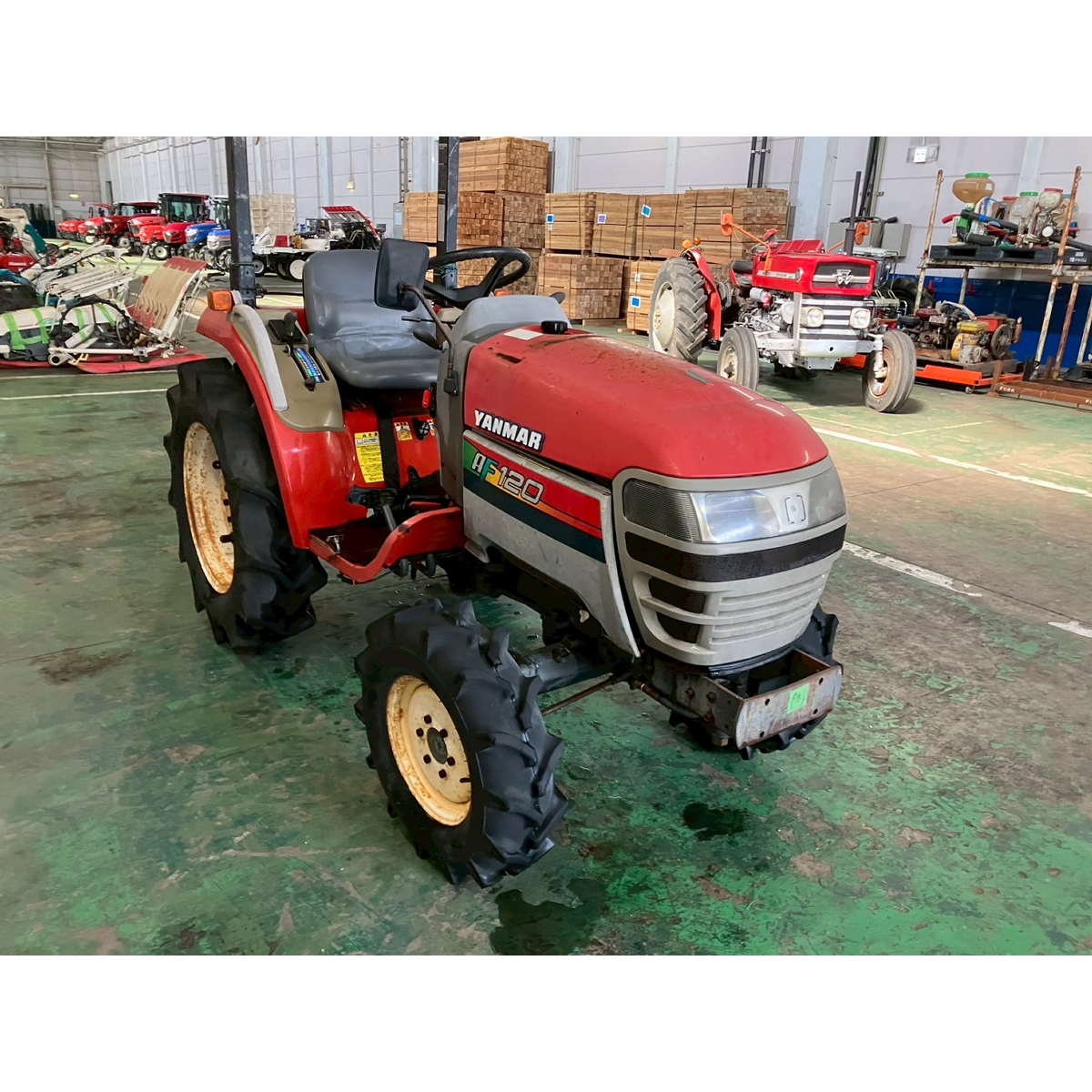

Yanmar AF120
Yanmar AF120 — AF100 Series · 20 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
20 hp
Weight
674 kg
Hover a source tag to verify
Overview
ManufacturerYanmarReference
Four-wheel driveReference
SteeringmanualReference
SteeringpowerReference
Wet disc brakesReference
Two-post ROPS.Reference
Engine
Yanmar 1.0L 3-cyl dieselReference
Fuel tank20.1 LReference
Engine14.9 kWReference
Yanmar 3TNE74Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.0 LReference
Power14.9 kWReference
Rated RPM2700Reference
StarterelectricReference
Starter volts12Reference
Transmission
8-speedReference
Gears8 forward and reverseReference
Clutchdry discReference
PTO & Hydraulics
Clutchdry discReference
Rear PTO Type569/814/1226 (1.375)Reference
Dimensions
Wheelbase137 cmReference
Weight674 kgReference
Front tire6.00-12Reference
Rear tire8.30-2Reference
Standard tires (ag)Front: 6.00-12. Rear: 8.30-2Reference
Length262 cmReference
Width105 cmReference
Height192 cmReference
Front tread86 cmReference
Rear tread83 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Battery AH45Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
