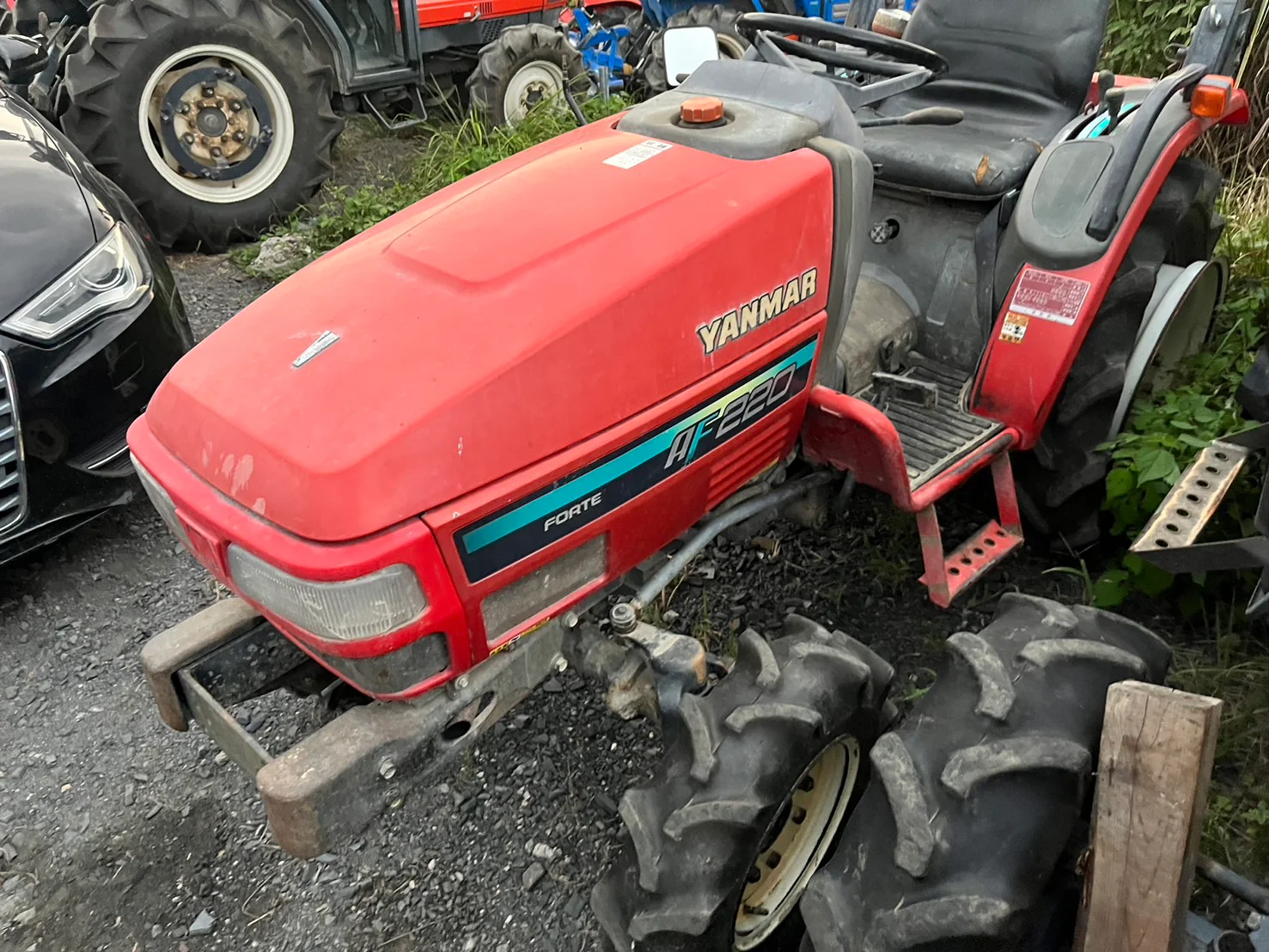

The Yanmar AF220 is a tractor with a rated power output of 20 hp, categorising it at the lighter end of its class. It was manufactured from 2002 to 2004. The tractor features a 3-cylinder diesel liquid-cooled engine, paired with four-wheel drive and an 8-speed gearbox. Its operating weight is listed at 860 kg, making it suitable for operations covering up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
20 hp
Weight
860 kg
Catalogue coverage
Variants represented
2
Richest spec table
39 rows
Recorded power
20 hp
Recorded weight
860 kg
Transmissions
8-speed
Production years
2002-2004
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerYanmarReference
Four-wheel driveReference
SteeringmanualReference
SteeringpowerReference
Wet disc brakesReference
Two-post ROPS.Reference
Engine
Yanmar 1.2L 3-cyl dieselReference
Fuel tank18.2 LReference
Engine14.9 kWReference
Yanmar 3TNE78Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.2 LReference
Power14.9 kWReference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Transmission
8-speedReference
Gears8 forward and reverseReference
Clutchdry discReference
PTO & Hydraulics
Rear Type0Reference
Controlposition controlReference
Clutchdry discReference
Rear PTO Type547/716/1210Reference
Dimensions
Wheelbase141 cmReference
Weight860 kgReference
Front tire6-12Reference
Rear tire8.3-22Reference
Standard tires (ag)Front: 6-12. Rear: 8.3-22Reference
Length268 cmReference
Width111 cmReference
Height190 cmReference
Ground clearance30 cmReference
Front tread90 cmReference
Rear tread90 to 103 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Battery AH55Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
