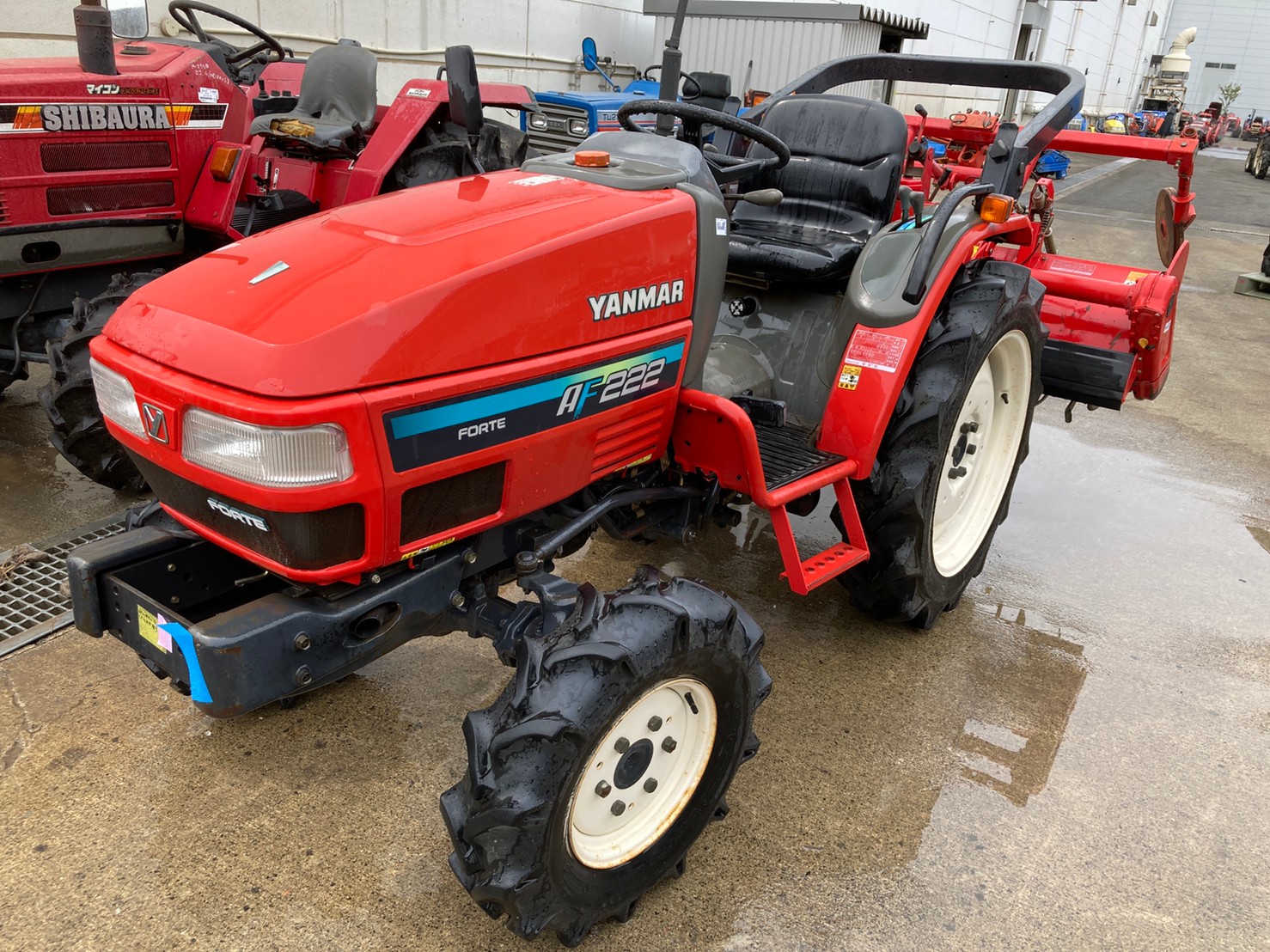

The Yanmar AF222 is a compact tractor with a rated output of 22 hp. It was manufactured from 2002 to 2004 and features a 3-cylinder diesel liquid-cooled engine. The tractor is equipped with a four-wheel drive system and an 8-speed gearbox, with a listed weight of 874 kg. It is designed for use on smaller areas, typically up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
22 hp
Weight
874 kg
Catalogue coverage
Variants represented
2
Richest spec table
40 rows
Recorded power
22 hp
Recorded weight
874 kg
Transmissions
8-speed
Production years
2002-2004
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerYanmarReference
Four-wheel driveReference
SteeringmanualReference
SteeringpowerReference
Wet disc brakesReference
Two-post ROPS.Reference
Engine
Yanmar 1.2L 3-cyl dieselReference
Fuel tank18.2 LReference
Engine16.4 kWReference
Yanmar 3TNE78Reference
dieselReference
3-cylinderReference
liquid-cooled inlineReference
Displacement1.2 LReference
Bore/Stroke78 x 84 mmReference
Power16.4 kWReference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Transmission
8-speedReference
Gears8 forward and reverseReference
Clutchdry discReference
PTO & Hydraulics
Rear Type0Reference
Controlposition controlReference
Clutchdry discReference
Rear PTO Type547/716/1210Reference
Dimensions
Wheelbase141 cmReference
Weight874 kgReference
Front tire6-12Reference
Rear tire8.3-24Reference
Standard tires (ag)Front: 6-12. Rear: 8.3-24Reference
Length268 cmReference
Width111 cmReference
Height191 cmReference
Ground clearance32 cmReference
Front tread91 cmReference
Rear tread90 to 103 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Battery AH55Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
