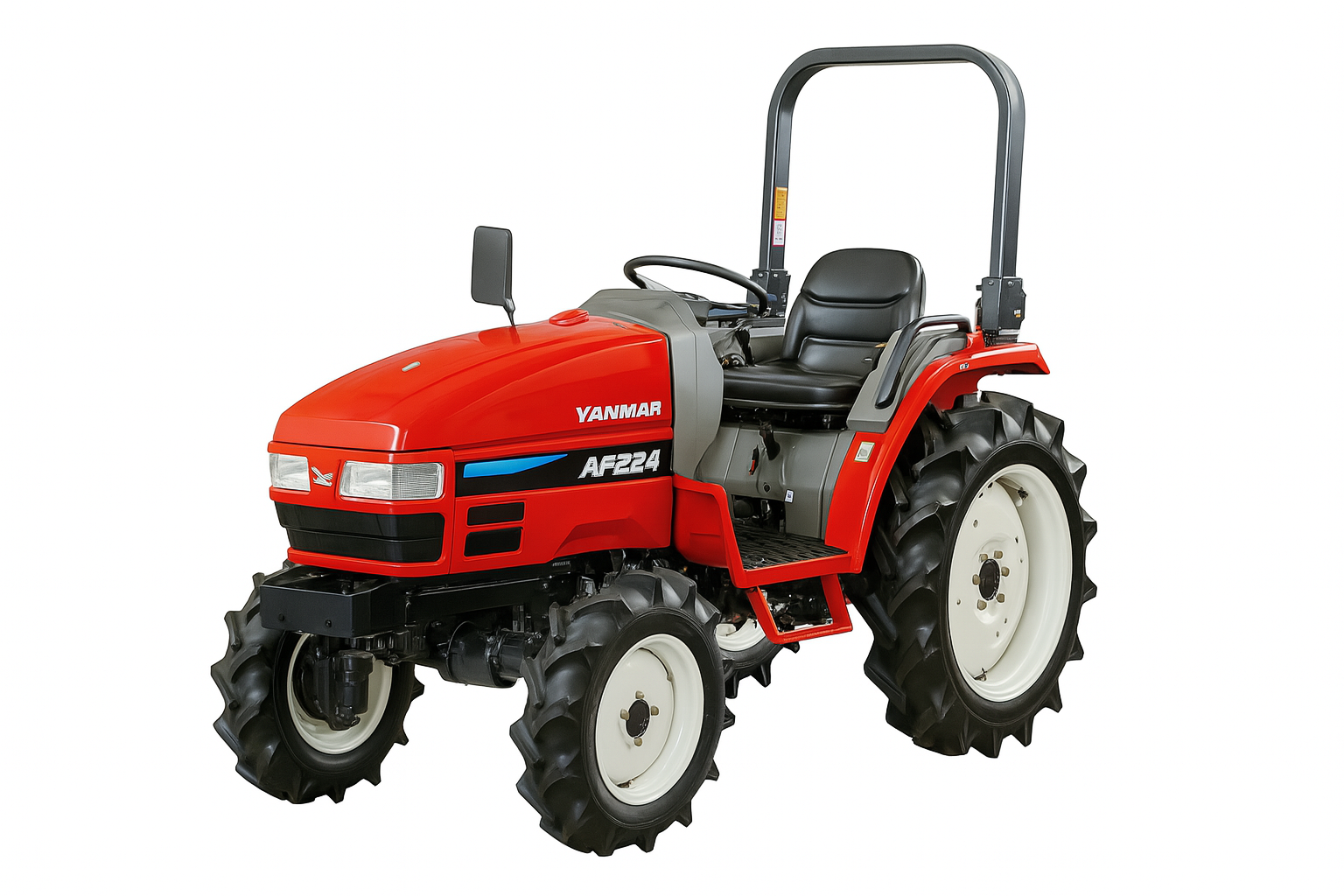

The Yanmar AF224 is a compact tractor rated at 24 hp, making it suitable for smaller-scale agricultural operations. Manufactured between 2002 and 2004, it features a 3-cylinder diesel liquid-cooled engine and four-wheel drive, which is transmitted through an 8-speed gearbox. The tractor weighs 879 kg and is designed for applications involving up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
24 hp
Weight
879 kg
Catalogue coverage
Variants represented
2
Richest spec table
39 rows
Recorded power
24 hp
Recorded weight
879 kg
Transmissions
8-speed
Production years
2002-2004
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerYanmarReference
Four-wheel driveReference
SteeringmanualReference
SteeringpowerReference
Wet disc brakesReference
Two-post ROPS.Reference
Engine
Yanmar 1.3L 3-cyl dieselReference
Fuel tank22.0 LReference
Engine17.9 kWReference
Yanmar 3TNE82Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.3 LReference
Power17.9 kWReference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Transmission
8-speedReference
Gears8 forward and reverseReference
Clutchdry discReference
PTO & Hydraulics
Rear Type0Reference
Controlposition controlReference
Clutchdry discReference
Rear PTO Type547/716/1210Reference
Dimensions
Wheelbase141 cmReference
Weight879 kgReference
Front tire6-14Reference
Rear tire9.5-22Reference
Standard tires (ag)Front: 6-14. Rear: 9.5-22Reference
Length268 cmReference
Width118 cmReference
Height192 cmReference
Ground clearance33 cmReference
Front tread91 cmReference
Rear tread93 to 105 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Battery AH55Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
