Tractor · 2002Unverified

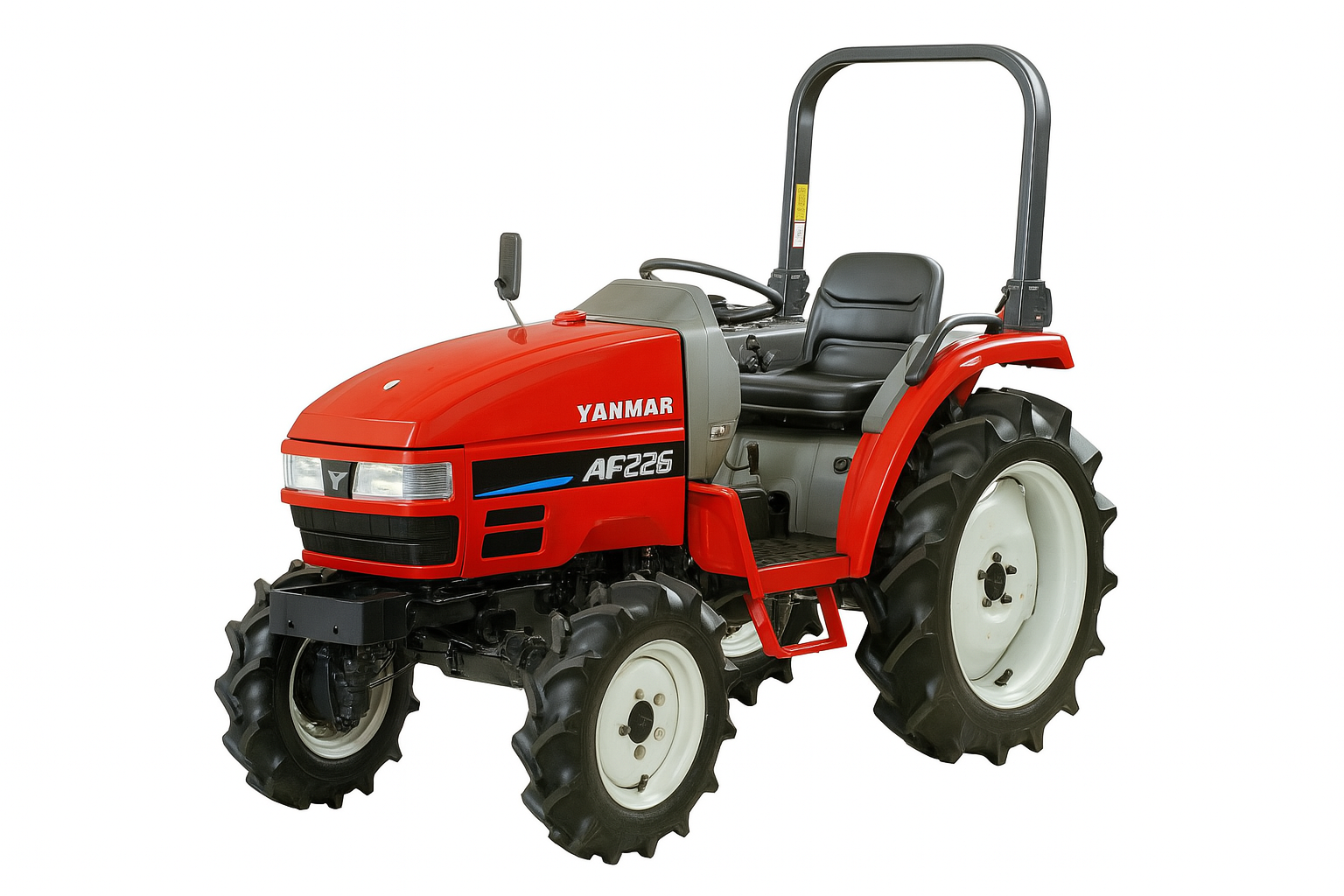

Yanmar AF226
Yanmar AF226 — AF200 Series · 26 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
26 hp
Weight
899 kg
Hover a source tag to verify
Overview
ManufacturerYanmarReference
Four-wheel driveReference
SteeringmanualReference
SteeringpowerReference
Wet disc brakesReference
Two-post ROPS.Reference
Engine
Yanmar 1.3L 3-cyl dieselReference
Fuel tank22.0 LReference
Engine19.4 kWReference
Yanmar 3TNE82Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.3 LReference
Power19.4 kWReference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Transmission
8-speedReference
Gears8 forward and reverseReference
Clutchdry discReference
PTO & Hydraulics
Rear Type0Reference
Controlposition controlReference
Clutchdry discReference
Rear PTO Type548/717/1212Reference
Dimensions
Wheelbase144 cmReference
Weight899 kgReference
Front tire7-14Reference
Rear tire9.5-24Reference
Standard tires (ag)Front: 7-14. Rear: 9.5-24Reference
Length268 cmReference
Width119 cmReference
Height196 cmReference
Ground clearance36 cmReference
Front tread98 cmReference
Rear tread96 to 108 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Battery AH55Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
