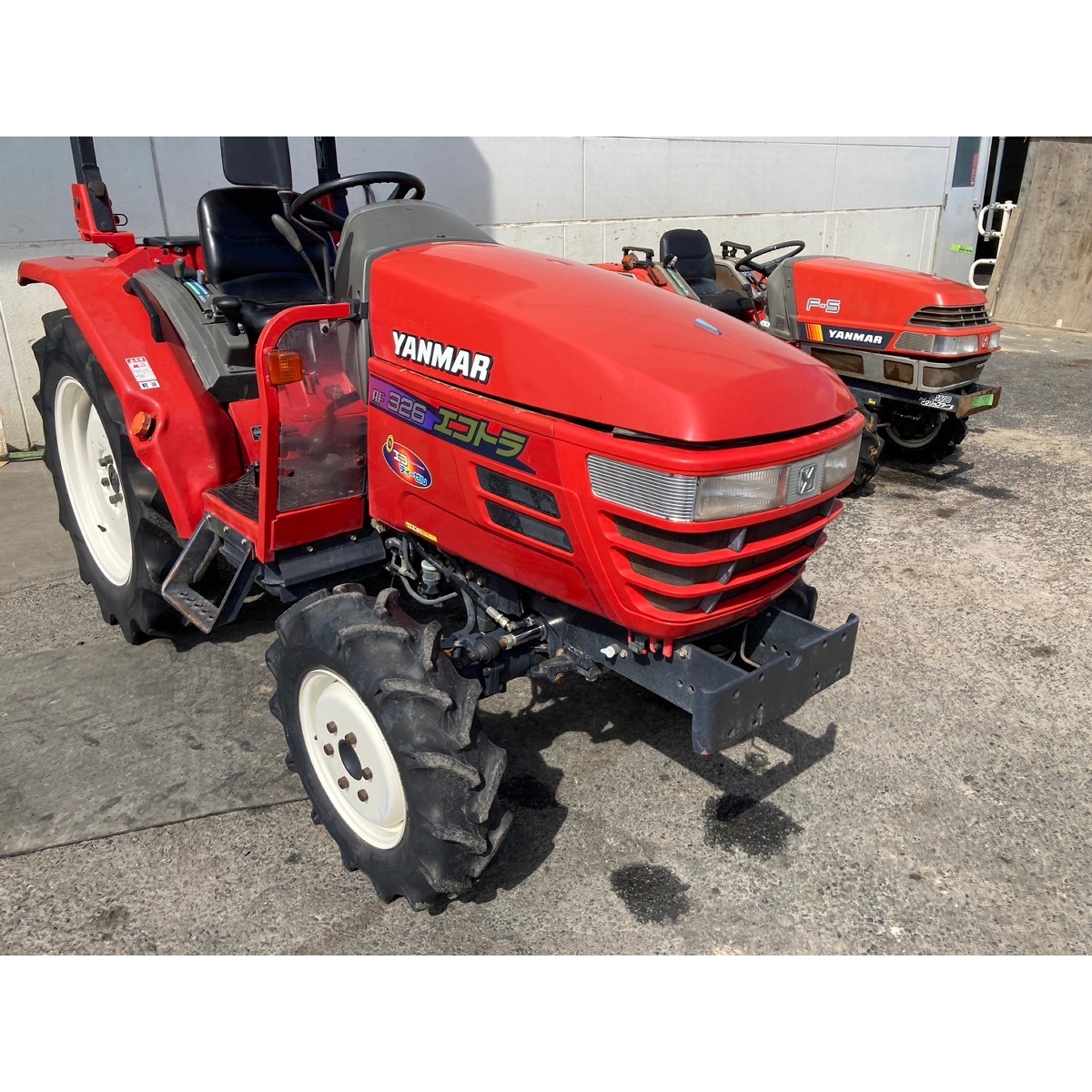

The Yanmar AF326 is a compact tractor with a rated output of 26 hp, manufactured from 2002 to 2005. It features a 3-cylinder diesel liquid-cooled engine and powershift transmission, providing four-wheel drive. The tractor's listed weight is 1174 kg, suitable for jobs of approximately up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
26 hp
Weight
1174 kg
Catalogue coverage
Variants represented
2
Richest spec table
40 rows
Recorded power
26 hp
Recorded weight
1174 kg
Transmissions
16-speed power shuttle
Production years
2002-2005
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerYanmarReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Two-post ROPS.Reference
Engine
Yanmar 1.5L 3-cyl dieselReference
Fuel tank26.9 LReference
Engine19.4 kWReference
Yanmar 3TNE84Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Power19.4 kWReference
Fuel systemdirect injectionReference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speed power shuttleReference
Typepower shuttleReference
Gears16 forward and reverseReference
Clutchwet discReference
Four power shift speeds in four ranges with power shuttle.Reference
PTO & Hydraulics
Rear TypeIReference
Controlposition controlReference
Rear PTO Type568/784/991/1296 (1.375)Reference
Dimensions
Wheelbase153 cmReference
Weight1174 kgReference
Front tire7-14Reference
Rear tire9.5-24Reference
Standard tires (ag)Front: 7-14. Rear: 9.5-24Reference
Length287 cmReference
Width128 cmReference
Height197 cmReference
Ground clearance32 cmReference
Front tread100 cmReference
Rear tread98 to 110 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Battery AH70Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
