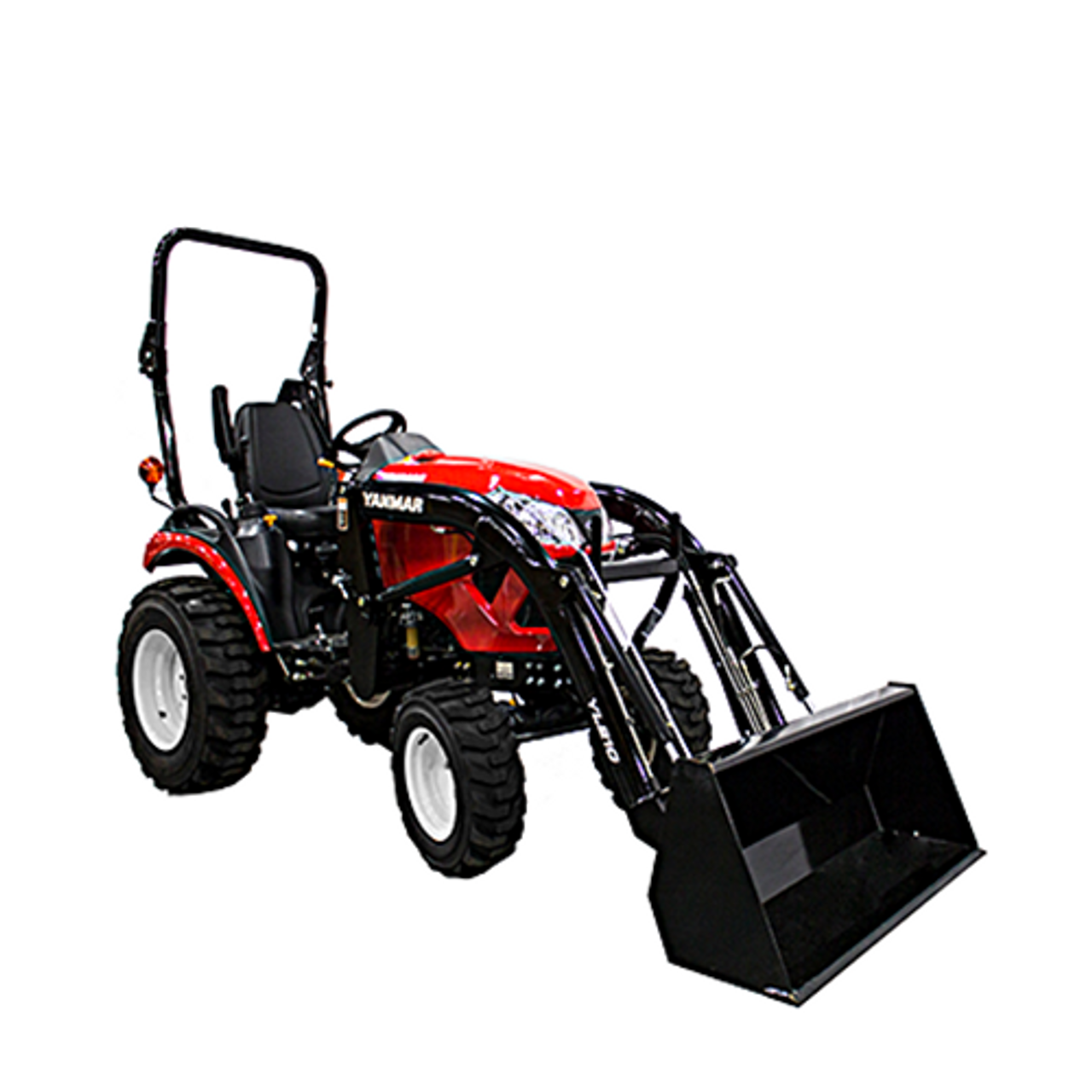

The Yanmar AF336 is a compact tractor rated at 36 hp, positioned within its class as a smaller option. Manufactured from 2002 to 2005, the AF336 features a 4-cylinder diesel liquid-cooled engine, coupled with a powershift transmission and four-wheel drive. Weighing 1450 kg, it is suited for tasks covering approximately 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
36 hp
Weight
1450 kg
Catalogue coverage
Variants represented
2
Richest spec table
40 rows
Recorded power
36 hp
Recorded weight
1450 kg
Transmissions
16-speed power shuttle
Production years
2002-2005
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerYanmarReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Two-post ROPS.Reference
Engine
Yanmar 2.0L 4-cyl dieselReference
Fuel tank36.0 LReference
Engine26.8 kWReference
Yanmar 4TNE84Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.0 LReference
Power26.8 kWReference
Fuel systemdirect injectionReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speed power shuttleReference
Typepower shuttleReference
Gears16 forward and reverseReference
Clutchwet discReference
Four power shift speeds in four ranges with power shuttle.Reference
PTO & Hydraulics
Rear TypeIReference
Controlposition controlReference
Rear PTO Type556/787/994/1300 (1.375)Reference
Dimensions
Wheelbase184 cmReference
Weight1450 kgReference
Front tire8-18Reference
Rear tire13.6-26Reference
Standard tires (ag)Front: 8-18. Rear: 13.6-26Reference
Length328 cmReference
Width150 cmReference
Height196 cmReference
Ground clearance34 cmReference
Front tread122 cmReference
Rear tread115 to 150 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Battery AH70Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
