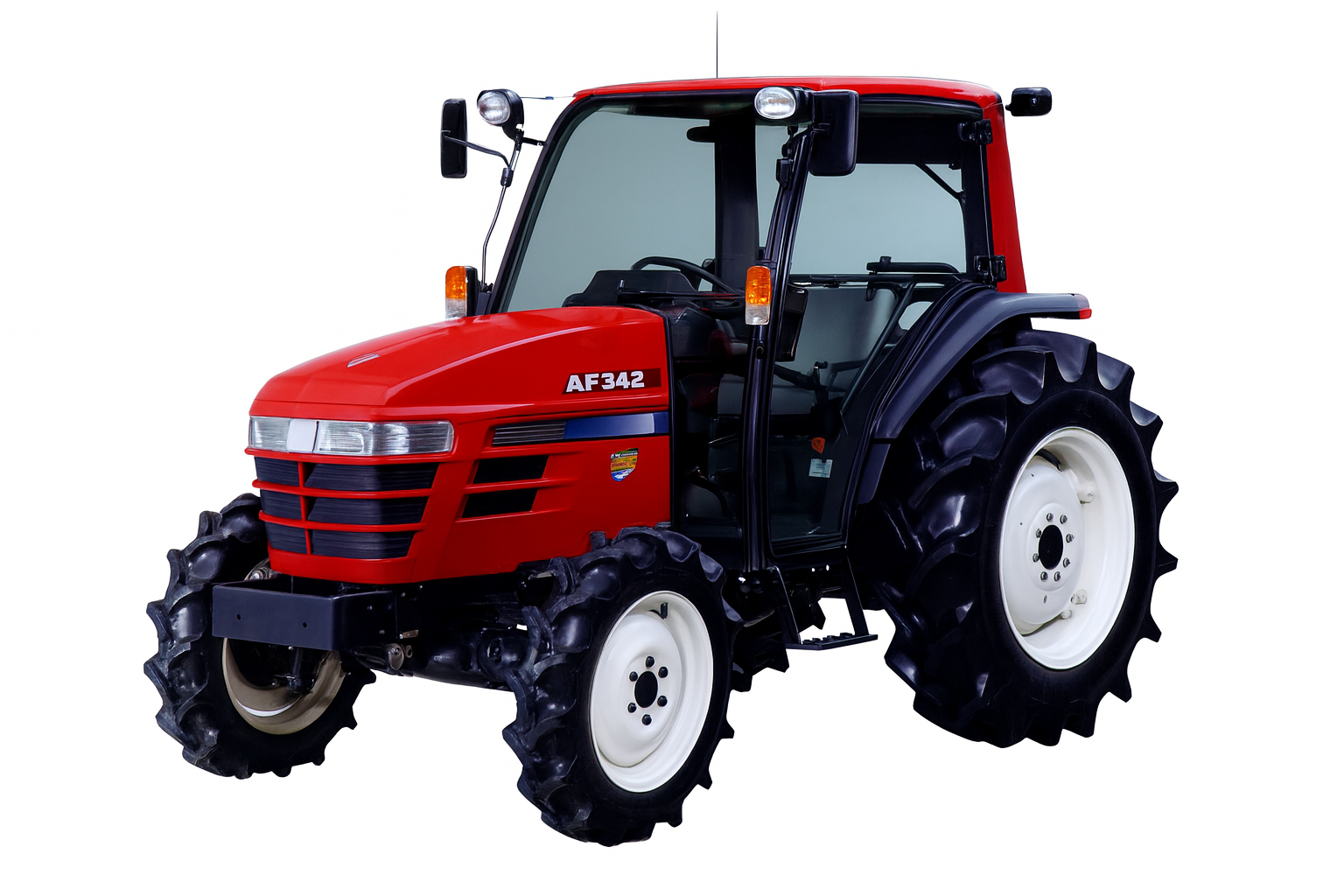

The Yanmar AF342 is a tractor model rated at 42 hp — making it one of the more compact options in its class. The AF342 was manufactured from 2002 to 2005. Under the hood is a 4-cylinder diesel liquid-cooled engine, driving through four-wheel drive with a powershift transmission. Listed weight is 1450 kg, and it is aimed at jobs of around up to 200 ac. The available specification table below shows both UK and US units.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
42 hp
Weight
1450 kg
Catalogue coverage
Variants represented
2
Richest spec table
40 rows
Recorded power
42 hp
Recorded weight
1450 kg
Transmissions
16-speed power shuttle
Production years
2002-2005
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerYanmarReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Two-post ROPS.Reference
Engine
Yanmar 2.2L 4-cyl dieselReference
Fuel tank36.0 LReference
Engine31.3 kWReference
Yanmar 4TNE88Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.2 LReference
Power31.3 kWReference
Fuel systemdirect injectionReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speed power shuttleReference
Typepower shuttleReference
Gears16 forward and reverseReference
Clutchwet discReference
Four power shift speeds in four ranges with power shuttle.Reference
PTO & Hydraulics
Rear TypeIReference
Controlposition controlReference
Rear PTO Type556/787/994/1300 (1.375)Reference
Dimensions
Wheelbase184 cmReference
Weight1450 kgReference
Front tire8-18Reference
Rear tire13.6-26Reference
Standard tires (ag)Front: 8-18. Rear: 13.6-26Reference
Length328 cmReference
Width150 cmReference
Height196 cmReference
Ground clearance34 cmReference
Front tread122 cmReference
Rear tread115 to 150 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Battery AH70Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
