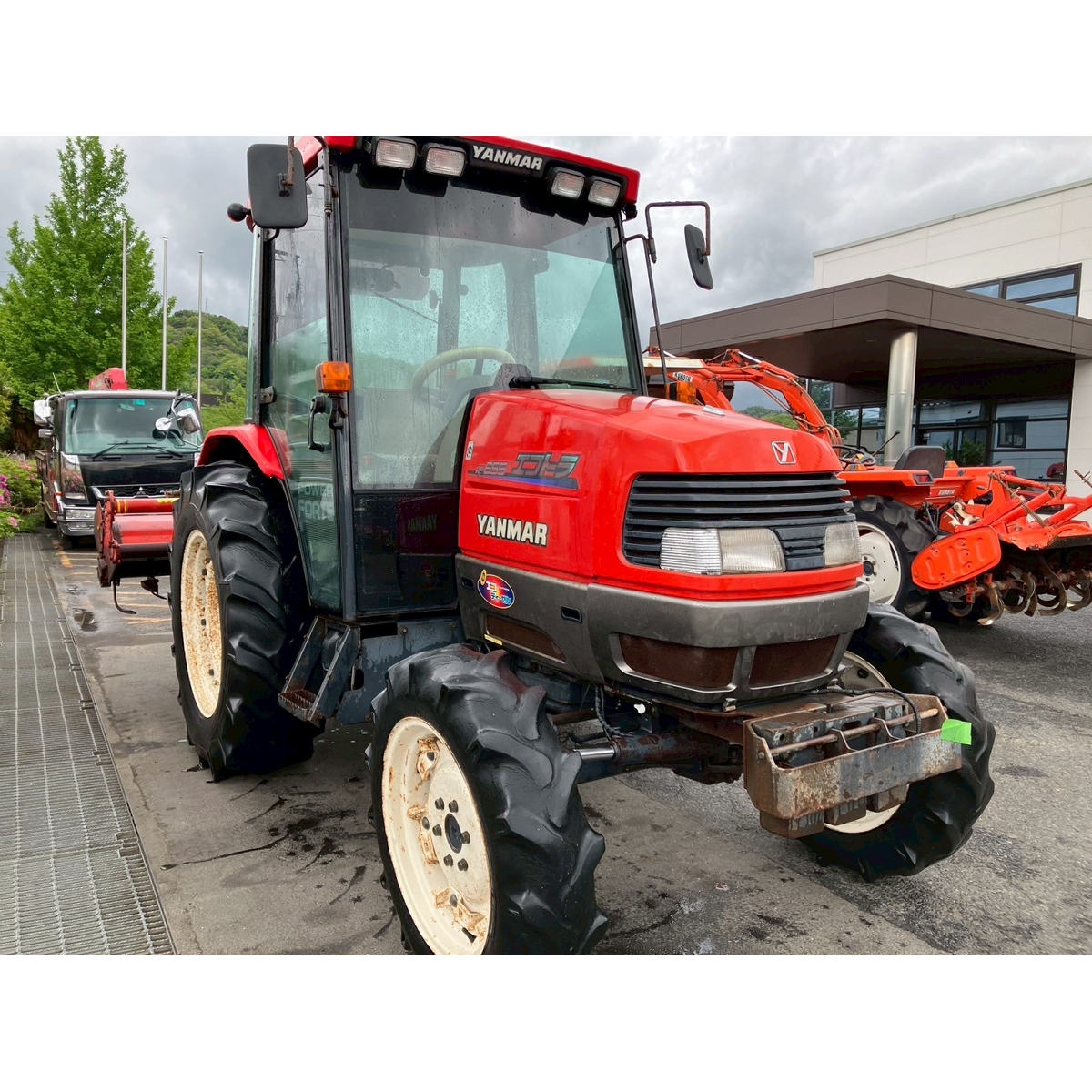

The Yanmar AF655 is a tractor model with an output of approximately 55 hp, positioning it at the lower end of its class in terms of power. Production of this model took place from 2001 to 2005. It features a 4-cylinder diesel liquid-cooled engine coupled with four-wheel drive and an 18-speed gearbox. The operating weight of the Yanmar AF655 is 2254 kg.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
55 hp
Weight
2254 kg
Catalogue coverage
Variants represented
2
Richest spec table
40 rows
Recorded power
55 hp
Recorded weight
2254 kg
Transmissions
18-speed power shuttle
Production years
2001-2005
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerYanmarReference
Four-wheel driveReference
Power steeringReference
Mechanical wet disc brakesReference
Cab standard with air-conditioning.Reference
Engine
Yanmar 3.3L 4-cyl dieselReference
Fuel tank65.1 LReference
Engine41.0 kWReference
Yanmar 4TNV98Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.3 LReference
Power41.0 kWReference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Transmission
18-speed power shuttleReference
Typepower shuttleReference
Gears18 forward and reverseReference
Clutchhydraulic wet discReference
PTO & Hydraulics
Rear TypeIReference
Controlposition controlReference
Rear lift1702 kgReference
Rear PTOindependentReference
Rear PTO Type564/756/1073 (1.375)Reference
Dimensions
Wheelbase200 cmReference
Weight2254 kgReference
Front tire8.3-20Reference
Rear tire12.4-32Reference
Standard tires (ag)Front: 8.3-20. Rear: 12.4-32Reference
Length352 cmReference
Width164 cmReference
Height248 cmReference
Ground clearance38 cmReference
Front tread124 to 148 cmReference
Rear tread128 to 163 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Battery AH110Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
