Tractor · 2001Unverified

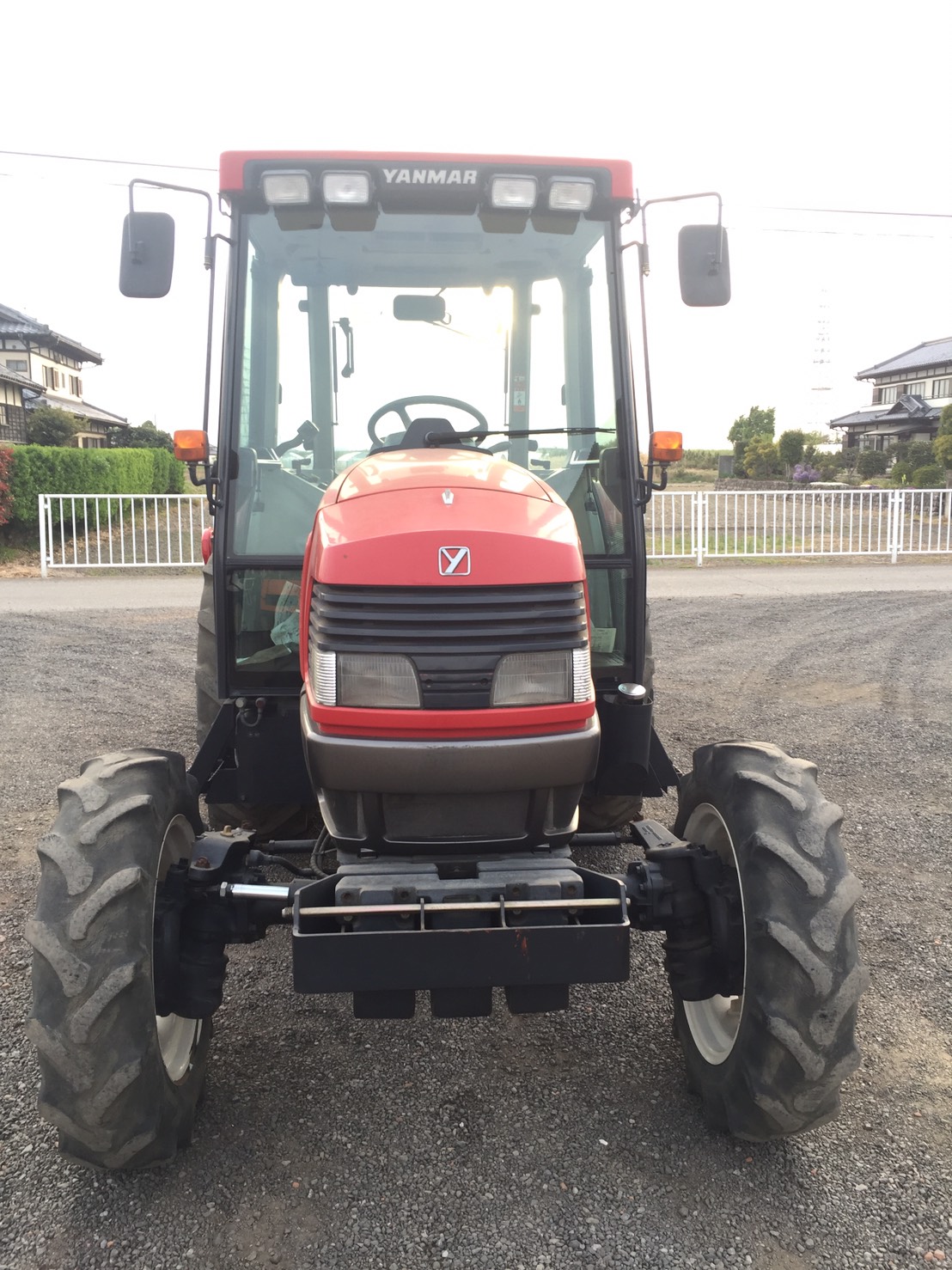

Yanmar AF665
Yanmar AF665 — AF600 Series · 65 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
65 hp
Weight
2290 kg
Hover a source tag to verify
Overview
ManufacturerYanmarReference
Four-wheel driveReference
Power steeringReference
Mechanical wet disc brakesReference
Cab standard with air-conditioning.Reference
Engine
Yanmar 3.3L 4-cyl dieselReference
Fuel tank65.1 LReference
Engine48.5 kWReference
Yanmar 4TNV98Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.3 LReference
Power48.5 kWReference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Transmission
18-speed power shuttleReference
Typepower shuttleReference
Gears18 forward and reverseReference
Clutchhydraulic wet discReference
PTO & Hydraulics
Rear TypeII/IReference
Controlposition controlReference
Rear lift1702 kgReference
Rear PTOindependentReference
Rear PTO Type564/756/1073 (1.375)Reference
Dimensions
Wheelbase210 cmReference
Weight2290 kgReference
Front tire8.3-20Reference
Rear tire12.4-32Reference
Standard tires (ag)Front: 8.3-20. Rear: 12.4-32Reference
Length366 cmReference
Width164 cmReference
Height248 cmReference
Ground clearance40 cmReference
Front tread124 to 148 cmReference
Rear tread128 to 163 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Battery AH110Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
