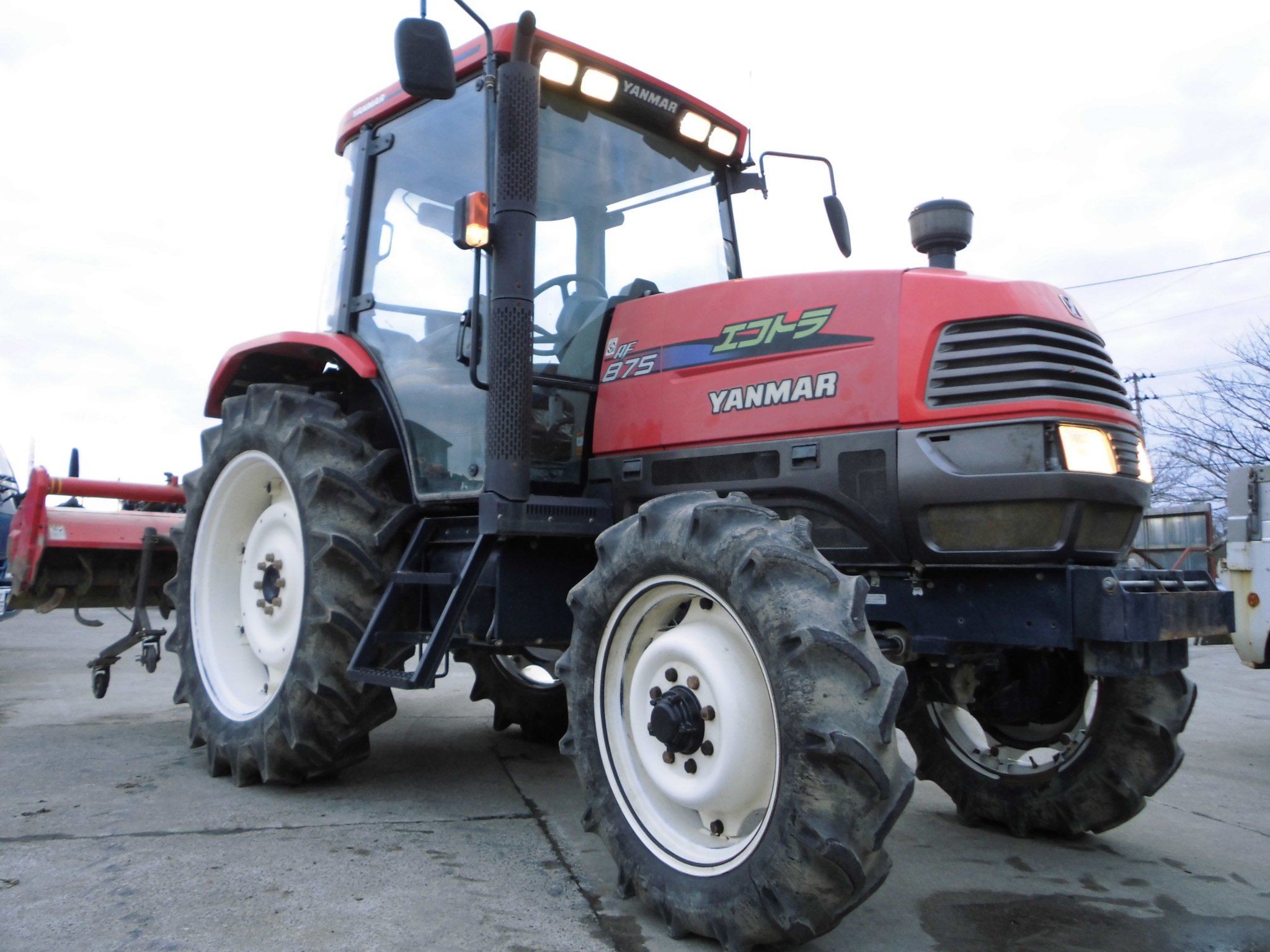

The Yanmar AF875 is a tractor with a power rating of 75 hp, positioning it within the middle of its class in terms of power output. Manufactured from 2001 to 2005, this model features a 4-cylinder diesel liquid-cooled engine, which powers a four-wheel drive system with an 18-speed gearbox. The tractor's listed weight is 3215 kg, making it suitable for tasks involving approximately 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
75 hp
Weight
3215 kg
Catalogue coverage
Variants represented
2
Richest spec table
40 rows
Recorded power
75 hp
Recorded weight
3215 kg
Transmissions
18-speed power shuttle
Production years
2001-2005
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerYanmarReference
Four-wheel driveReference
Power steeringReference
Hydraulic wet disc brakesReference
Cab standard with air-conditioning.Reference
Engine
Yanmar 4.4L 4-cyl dieselReference
Fuel tank120.0 LReference
Engine55.9 kWReference
Yanmar 4TNV106Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.4 LReference
Power55.9 kWReference
Fuel systemdirect injectionReference
Rated RPM2400Reference
StarterelectricReference
Starter volts12Reference
Transmission
18-speed power shuttleReference
Typepower shuttleReference
Gears18 forward and reverseReference
Clutchhydraulic wet discReference
PTO & Hydraulics
Rear TypeII/IReference
Controlposition and draft controlReference
Rear lift3000 kgReference
Rear PTOindependentReference
Clutchhydraulic wet discReference
Rear PTO Type561/760/986Reference
Dimensions
Wheelbase230 cmReference
Weight3215 kgReference
Front tire8.3-24Reference
Rear tire12.4-36Reference
Standard tires (ag)Front: 8.3-24. Rear: 12.4-36Reference
Length402 cmReference
Width181 cmReference
Height265 cmReference
Front tread121 to 185 cmReference
Rear tread121 to 182 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
