Tractor · 2004Unverified

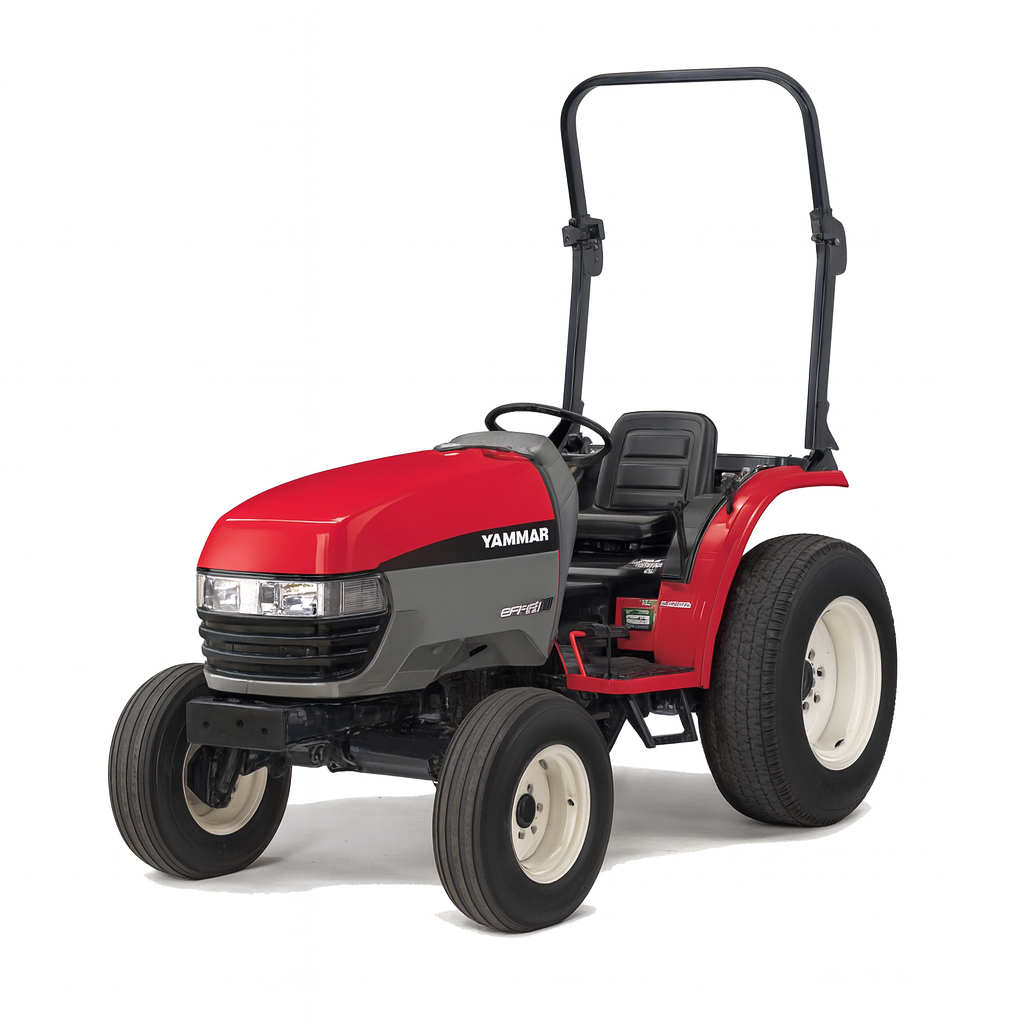

Yanmar EF230H
Yanmar EF230H — EF200 Series · 30 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
30 hp
Weight
2150 to 2426 pounds
Hover a source tag to verify
Overview
ManufacturerYanmarReference
Compact Utility tractorReference
Four-wheel driveReference
Engine
Yanmar 1.5L 3-cyl dieselReference
Fuel tank28.0 LReference
Engine22.0 kWReference
Yanmar 3TNV84Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Power22.0 kWReference
Rated RPM2500Reference
Starter volts12Reference
Transmission
hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
PTO & Hydraulics
Pump flow22.0 lpmReference
Rear TypeIReference
Rear lift1200 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Mid PTO Type2000Reference
Dimensions
Wheelbase160 cmReference
Weight2150 to 2426 poundsReference
Front tire6-14Reference
Rear tire9.5-20Reference
Ag front6-14Reference
Ag rear9.5-20Reference
Length292 cmReference
Width131 cmReference
Height199 cmReference
Height (ROPS)239 cmReference
Weight975 kgReference
Weight1100 kgReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
